DESCRIPTION:
Dimension (W x D x H):
305 x 170 x 380 mm
Net Weight:
7.4 Kg
Power Consumption:
350 Watts
Voltage/Frequency:
AC 220-240V/50 Hz
Water Supply:
Direct Connect to Water Pipe
Applicable Water Inflow Pressure:
70 to 500 kPa
Applicable Water Temperature:
5 – 30 °C
Water Flow Rate for Alkaline 1 to 3, Beauty and Purified Water:
1.0 to 4.0 L/Min
Water Flow Rate for Sanitizing and Cleaning:
0.7 to 1.6 L/Min

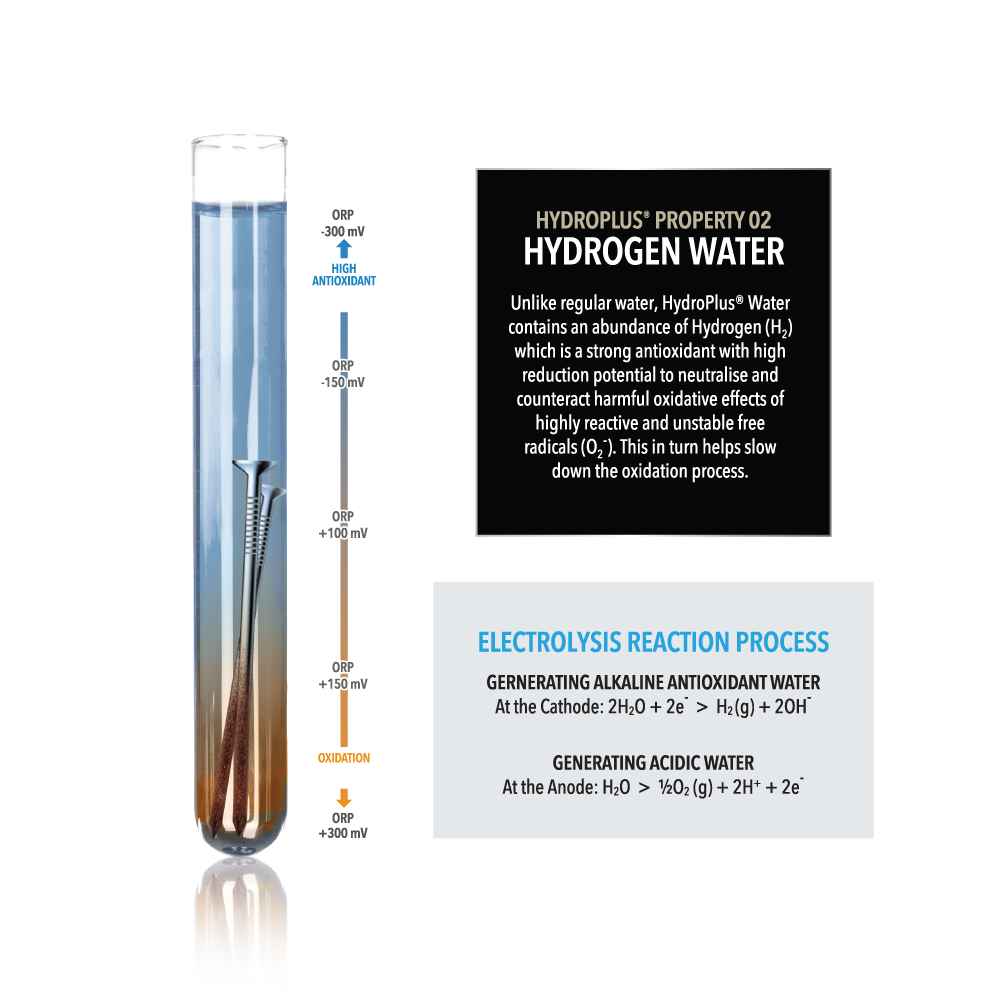

Electrodes Method:
Continuous Electrolysis
Electrodes Plate:
9 Platinised Titanium Electrode Plates

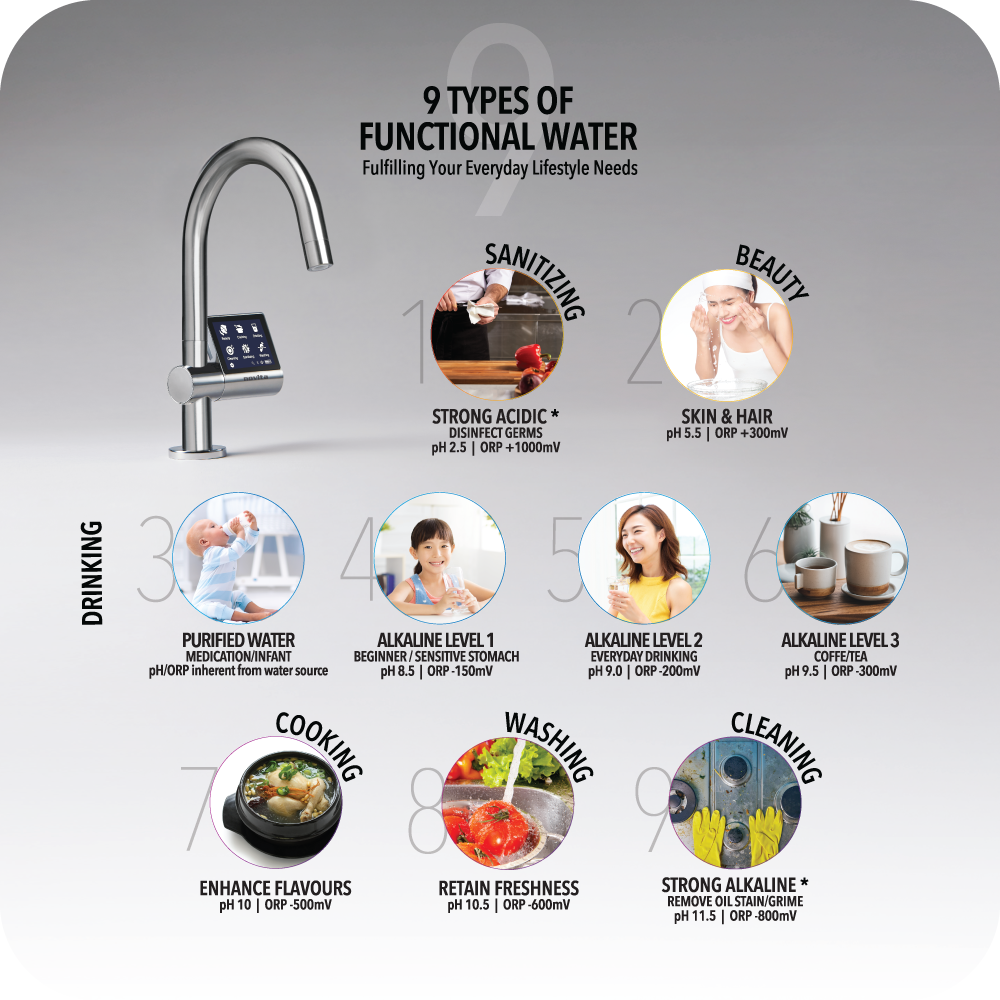

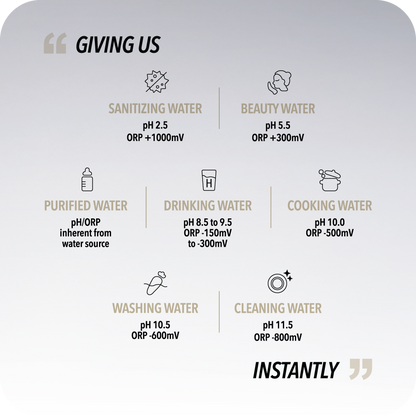

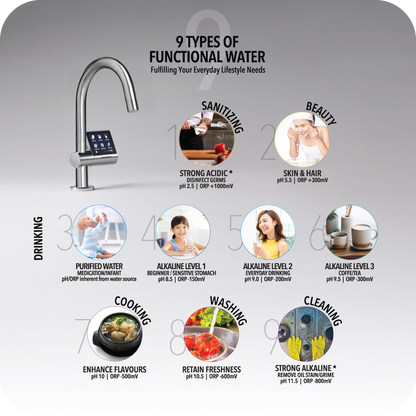

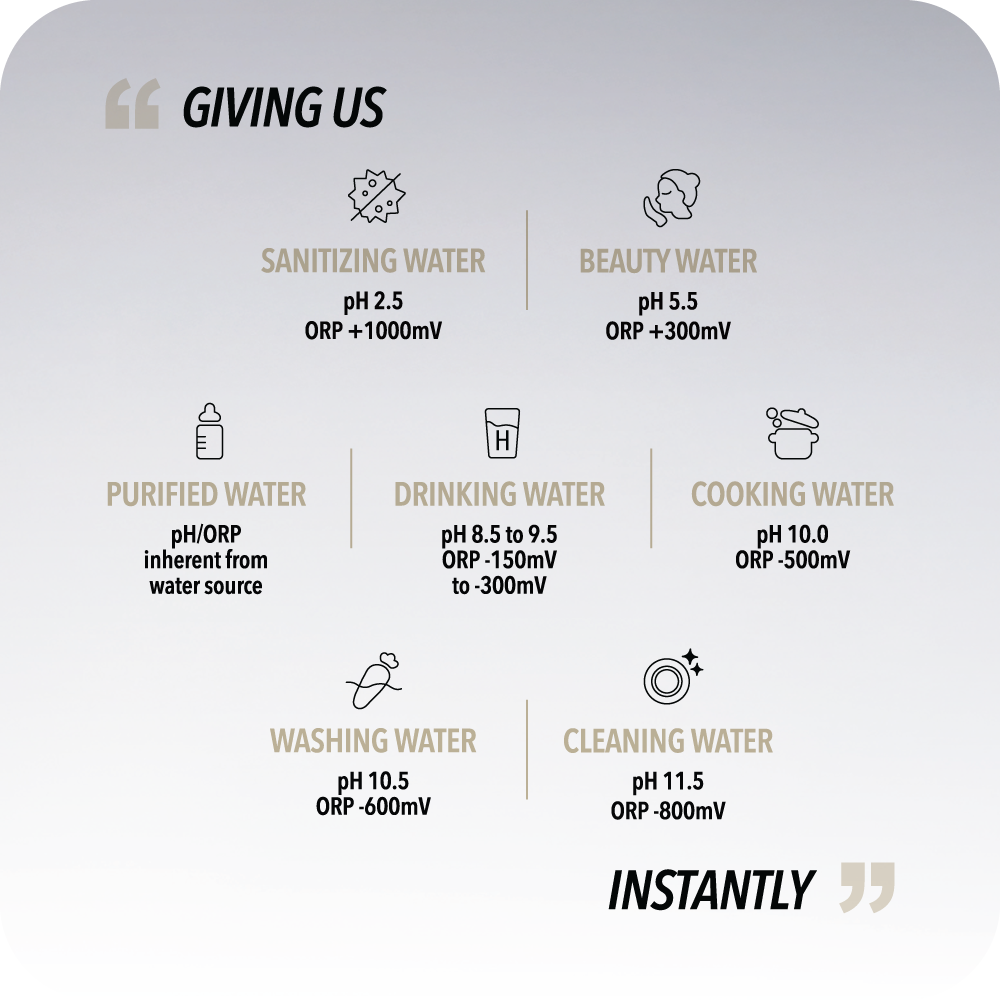

9 Types of Functional Water:
pH
ORP
Sanitize*:
2.5
+1000 mV
Beauty:
5.5
+300 mV
Cleaning*:
11.5
-800 mV
Washing:
10.5
-600 mV
Cooking:
10.0
-500 mV
Drinking: Purified Water:
Inherent from water source
Drinking: Alkaline Level 3
9.5
-300 mV
Drinking: Alkaline Level 2
9.0
-200 mV
Drinking: Alkaline Level 1
8.5
-150 mV

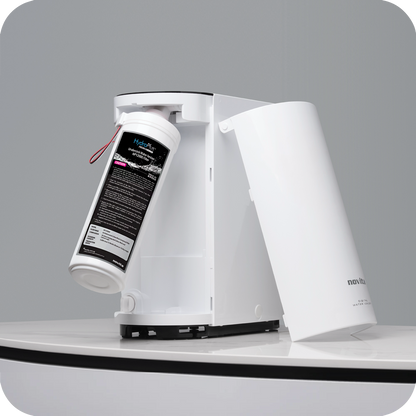

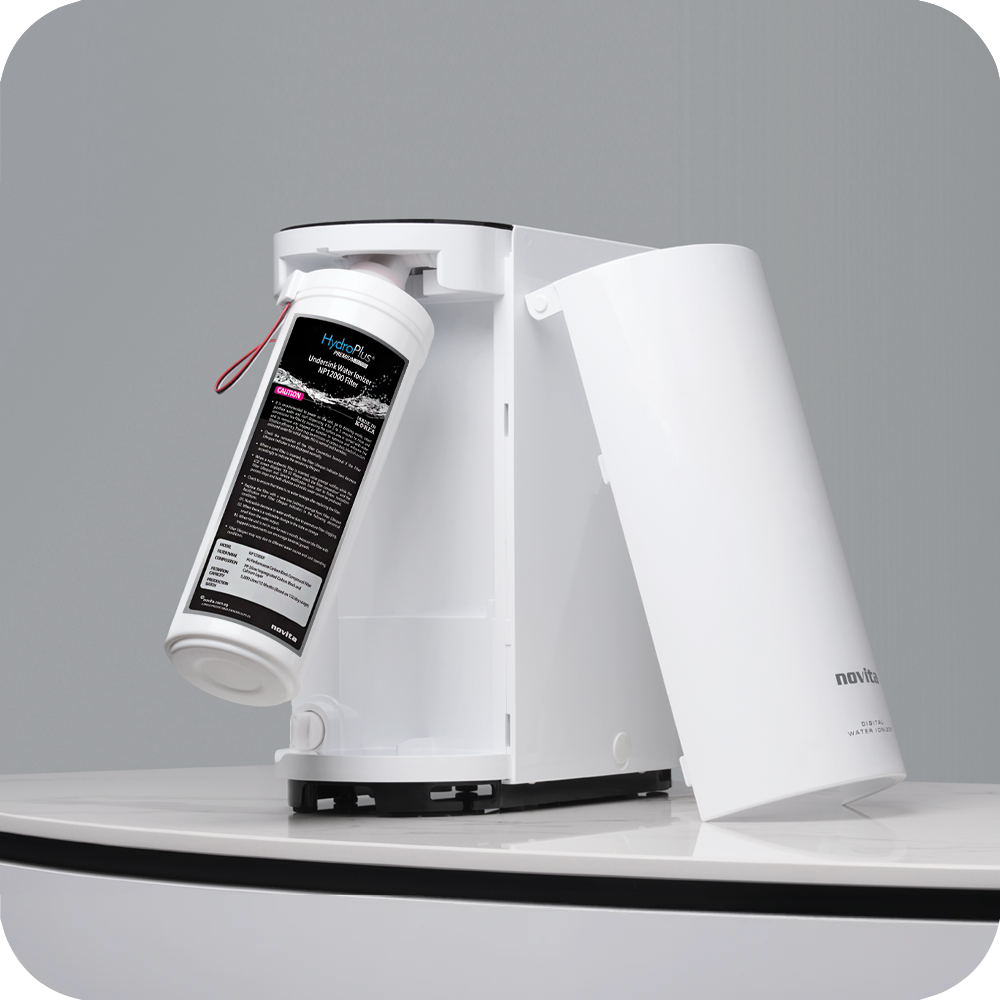

Filter Type:
Hi-Performance Carbon Block Filter
Filter Capacity:
5,000 litres/12 months (based on approx 13 litres/day)
Control Panel:
Touch Panel
LCD (TIF):
2.4”/Resolution 320 x 240

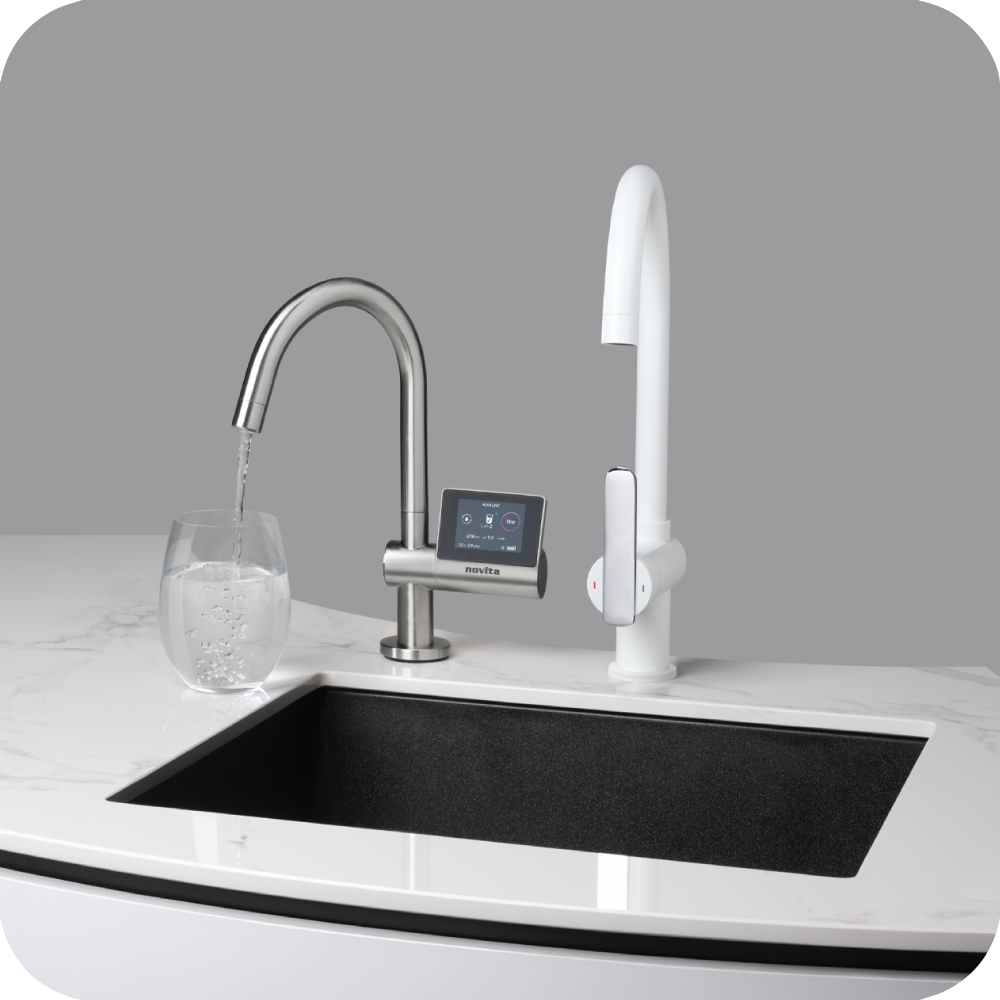

Faucet:
Brass + Chrome Plated
Safety Features:
• Temperature Sensor
• Excessive Current Control
Note: • pH & ORP may vary by ± 0.5 and ±150mV respectively, subjected to nature of water source, piping condition, water inflow rate, chlorine concentration and filter usage. Indicated pH readings are obtained based on pH 7.5 source water. All pH/ORP readings are attained based on quantitative sampling basis. pH & ORP reduction is subjected to natural depreciation. • The water flow rate may vary subjected to nature of source water inflow pressure, distance from water source and remaining filter lifespan. * Apply enhancer for sanitizing and cleaning mode to generate strong acidic and strong alkaline water respectively.
