Description

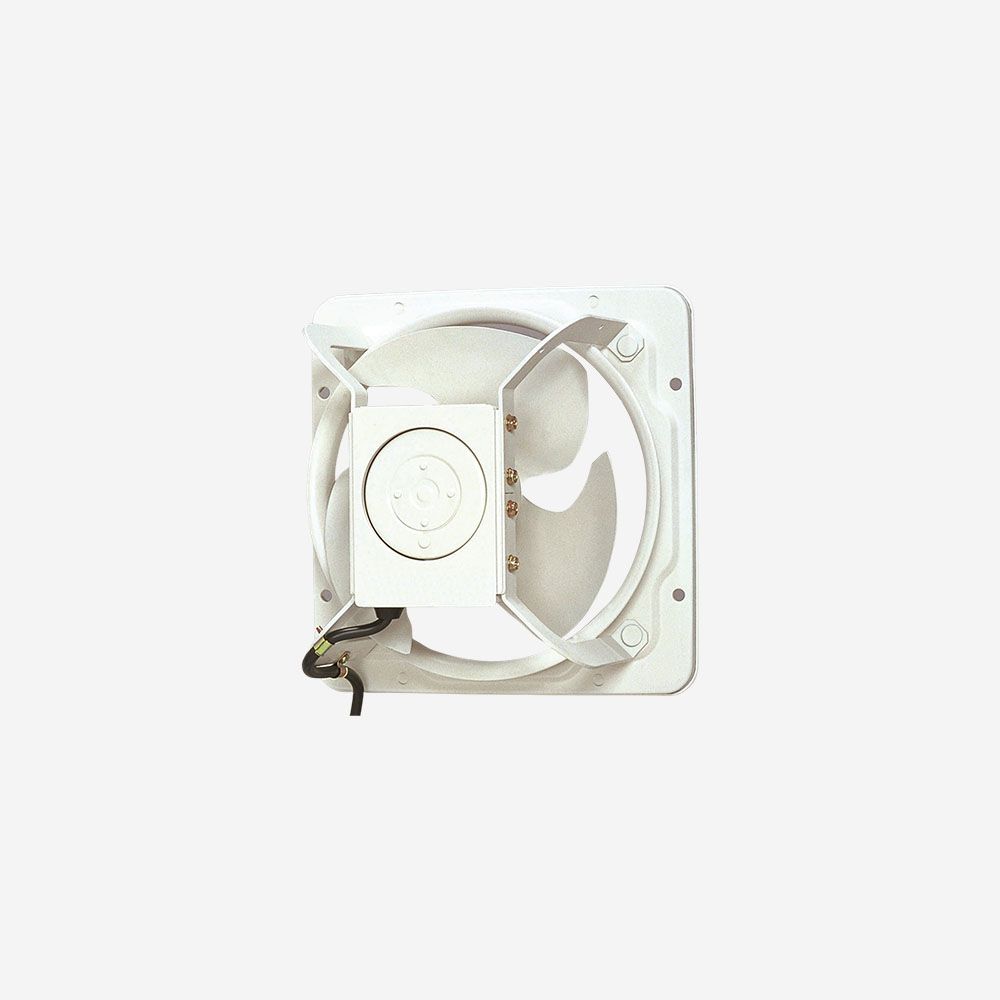

KDK 60GTC 60 cm (24″) Industrial High‑Pressure Ventilating Fan
Built for industrial setups requiring serious airflow, the KDK 60GTC delivers heavy-duty performance in a space-saving profile—ideal for Singapore’s factories, kitchens, and warehouses.
Key Features
- Wave‑shape blade & bell‑mouth design – ensures smooth, high-pressure airflow with minimal turbulence
- Reversible airflow – easily switch between intake and exhaust
- Enclosed 6‑pole motor (340 W) with thermal protection for dependable, continuous performance
- Built-in drain system & robust powder-coated casing – shields motor from dust and moisture
- Slim, space-efficient body – supports horizontal and vertical installation in tight spaces
- Wide temperature range – performs reliably from −10 °C to +50 °C

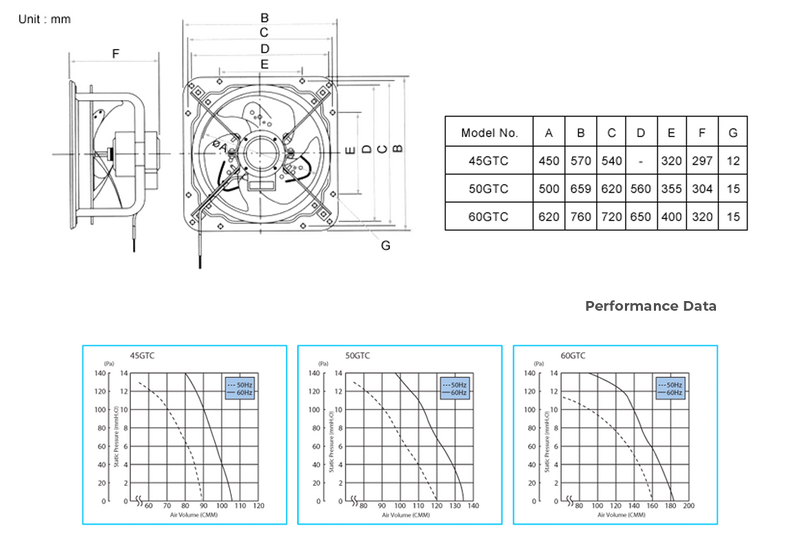

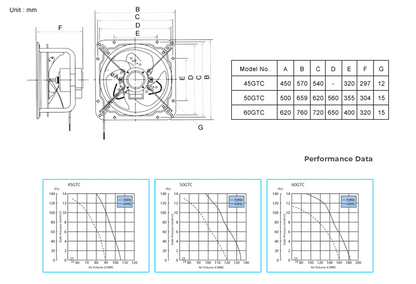

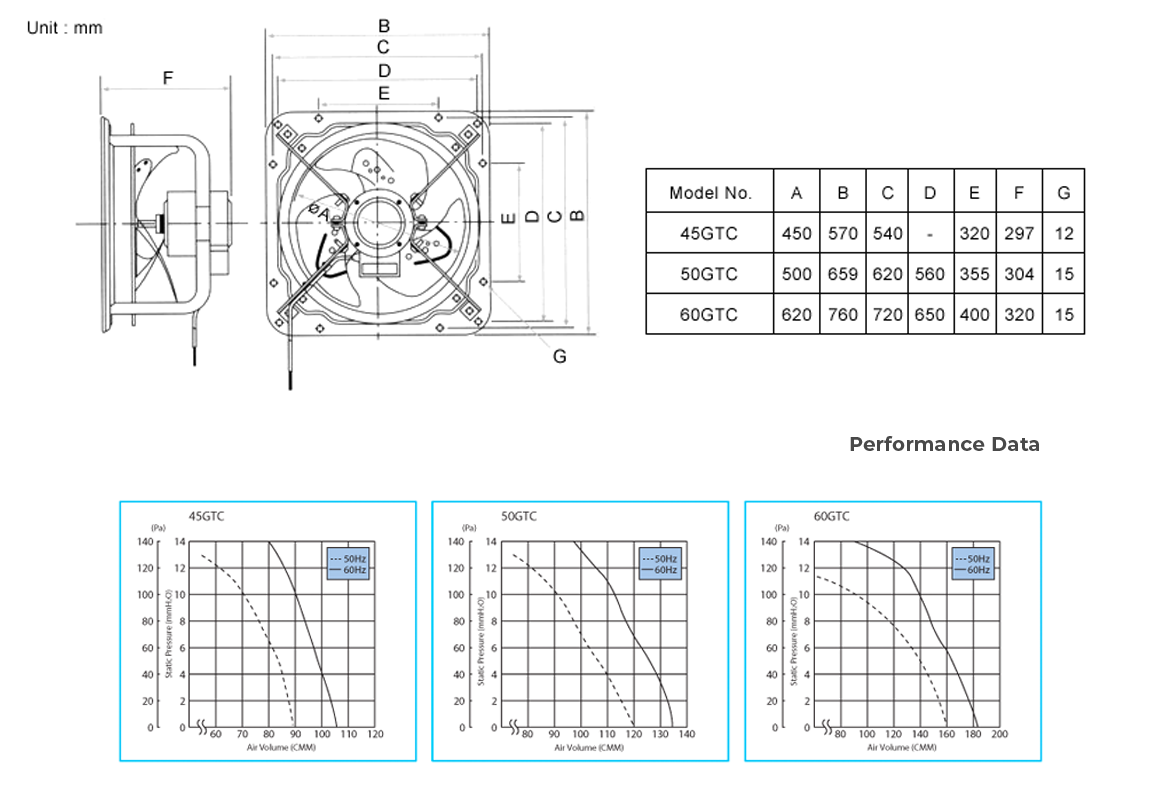

Product Specifications
| Blade Diameter | 60 cm (24″) |
|---|---|
| Power Consumption | 340 W |
| Speed | ≈ 960 RPM |
| Airflow | ≈ 9,700 m³/h (≈ 5,700 CFM) |
| Noise Level | ≈ 49–50 dB(A) |
| Weight | ≈ 34 kg |
| Voltage / Phase | Three‑phase, 50 Hz |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and build defects via authorized distributor
- Includes parts and labour through service centers
- Warranty begins from purchase date—retain proof of purchase
Why Choose the 60GTC?
The 60GTC combines industrial-grade airflow, reversible functionality, and a moisture-resistant design into a slim profile. Ideal for high-volume ventilation in Singapore’s demanding industrial and commercial environments.
