Description

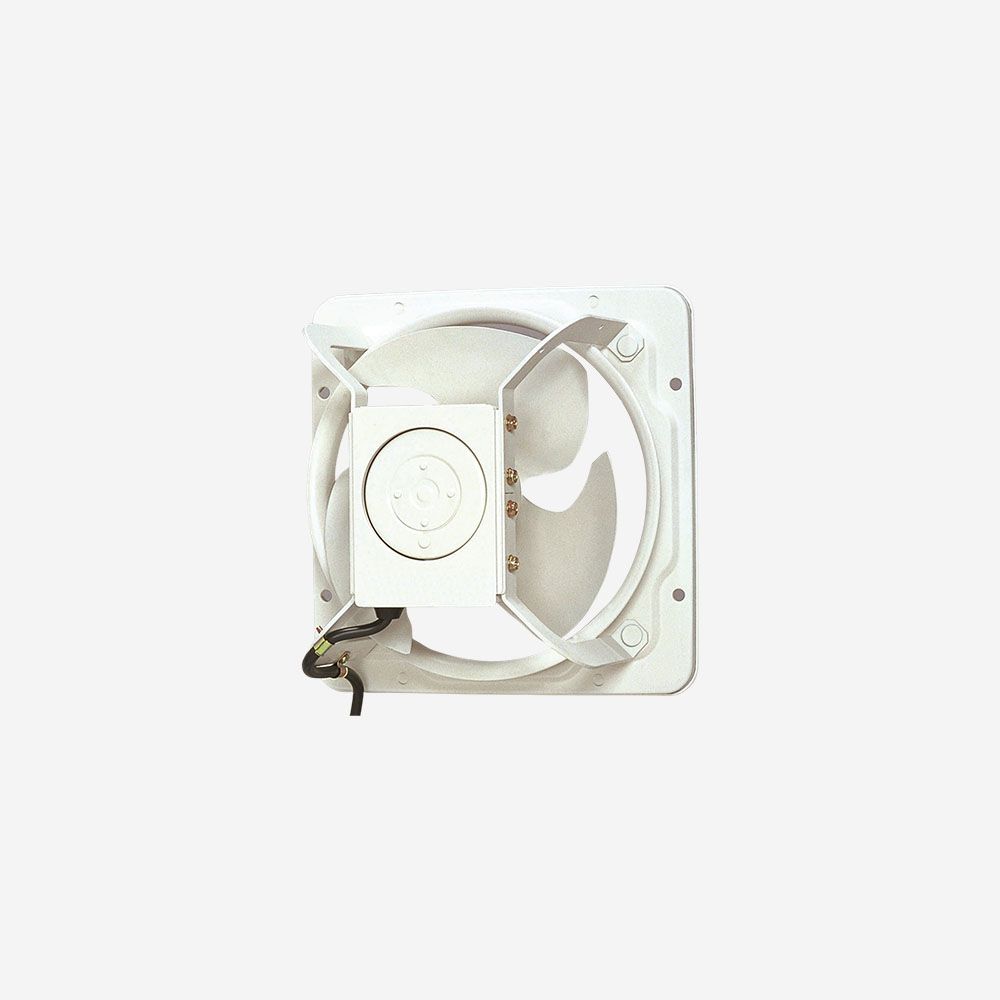

KDK 50GTC 50 cm (20″) Industrial High‑Pressure Ventilating Fan
Built for heavy-duty environments like factories, commercial kitchens, and large workspaces, the KDK 50GTC provides powerful, high-pressure airflow in a space-saving slim profile—ideal for Singapore’s industrial and commercial settings.
Key Features
- Wave-shape blade & bell-mouth design – smooth, turbulence-free airflow with excellent static pressure
- Reversible airflow – switch between intake and exhaust as needed
- Enclosed 6‑pole condenser motor (249–350 W) with thermal protection – built for continuous, safe operation
- Built-in drain mechanism & powder-coated steel housing – protects the motor from moisture and dust
- Slim, install-friendly design – perfect for horizontal or vertical mounting in space-constrained areas
- Wide operating range – reliable performance from −10 °C to +50 °C

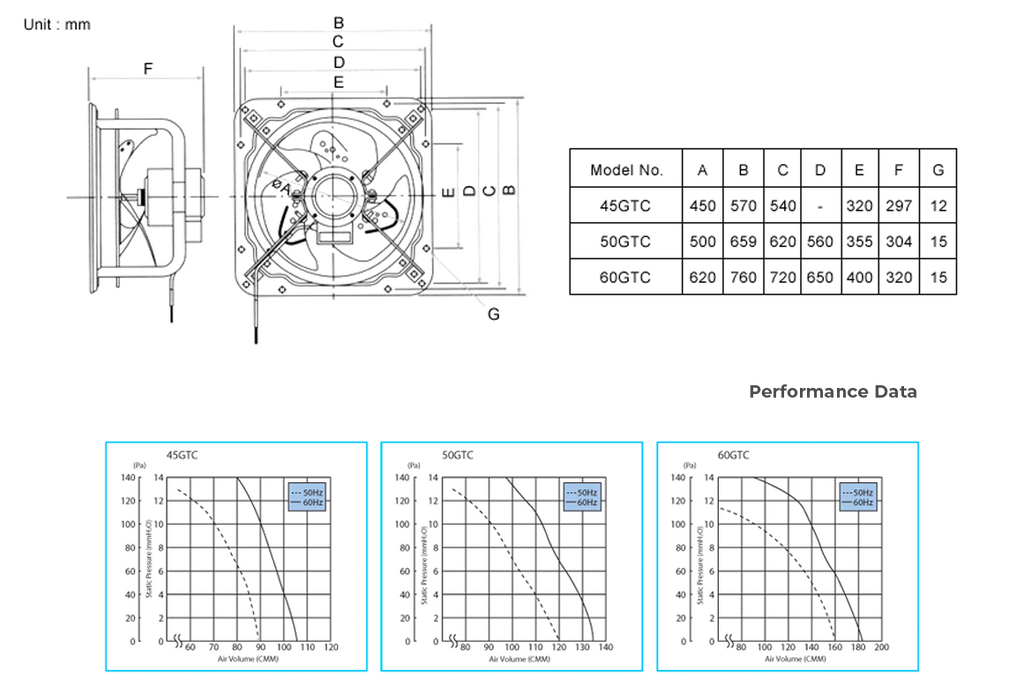

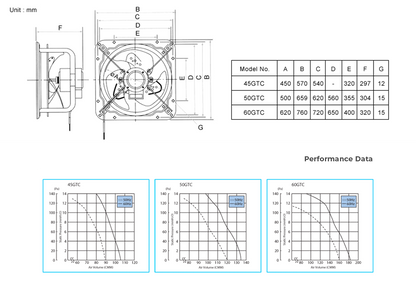

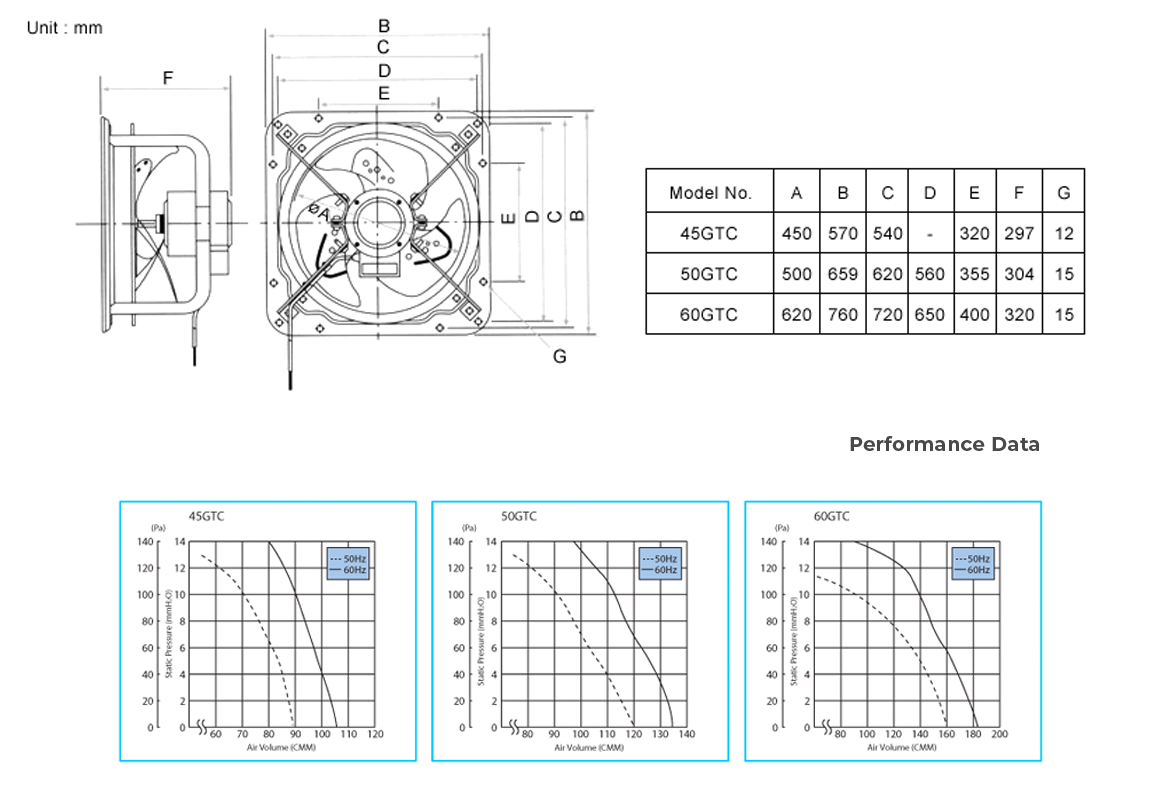

Product Specifications
| Blade Diameter | 50 cm (20″) |
|---|---|
| Power Consumption | ≈ 249–350 W |
| Speed | ≈ 1 400 RPM |
| Airflow | ≈ 4,100–4,300 CFM (7,200 m³/h) |
| Noise Level | ≈ 54 dB(A) |
| Weight | ≈ 28–29 kg |
| Voltage / Frequency | Three‑phase, 50 Hz |
| Mounting Options | Horizontal or vertical installation |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and manufacturing defects
- Covers parts and labour at authorized service centers
- Warranty valid from purchase date—retain your proof of purchase
Why Choose the 50GTC?
The 50GTC is designed to deliver consistent high-volume airflow while maintaining a compact, slim profile. Its premium motor, reversible airflow, and durable moisture-resistant construction make it a reliable ventilation solution for New Singaporean industrial and commercial spaces.
