Description

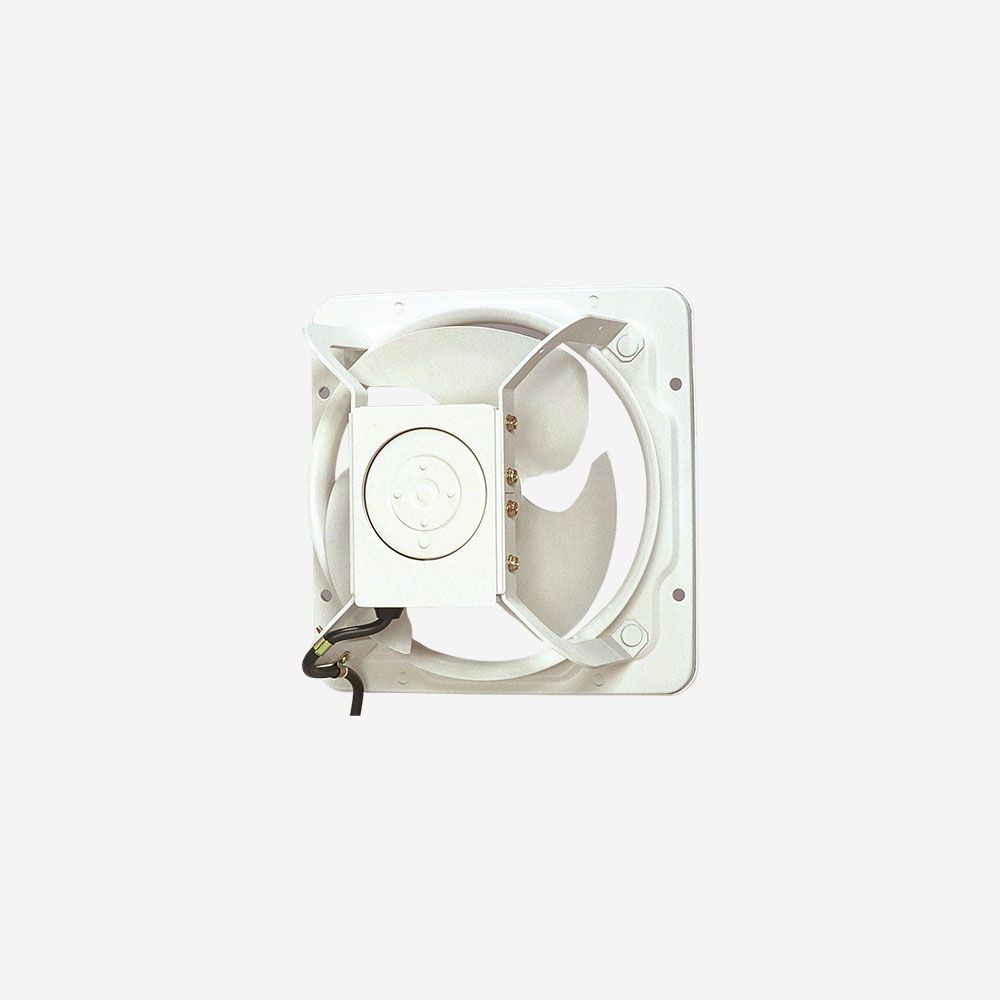

KDK 50GSC 50 cm (20″) Industrial High‑Pressure Ventilating Fan
The KDK 50GSC is a heavy-duty, high-performance ventilating fan built to handle tough environments such as factories, workshops, and commercial kitchens. With strong airflow and robust construction, it offers reliable ventilation for demanding spaces in Singapore.
Key Features
- Wave-shape blade with bell-mouth design – delivers smooth, high-pressure airflow with minimal turbulence
- Reversible airflow – switch easily between intake and exhaust modes
- Enclosed 6‑pole condenser motor (249 W) with thermal protection for safe, continuous operation
- Built-in drain system & powder-coated steel casing – protects motor from dust and moisture
- Slim and space-efficient design – ideal for installations with limited clearance
- Wide temperature range – operates reliably from −10 °C to +50 °C
- Horizontal or vertical mounting options – suitable for diverse installation needs

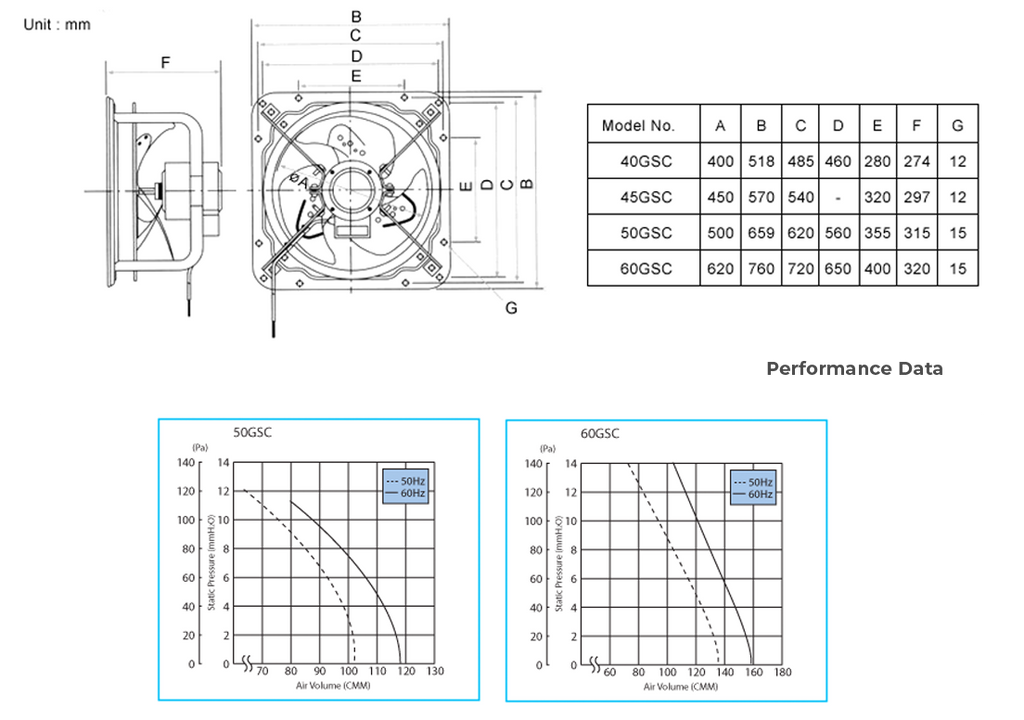

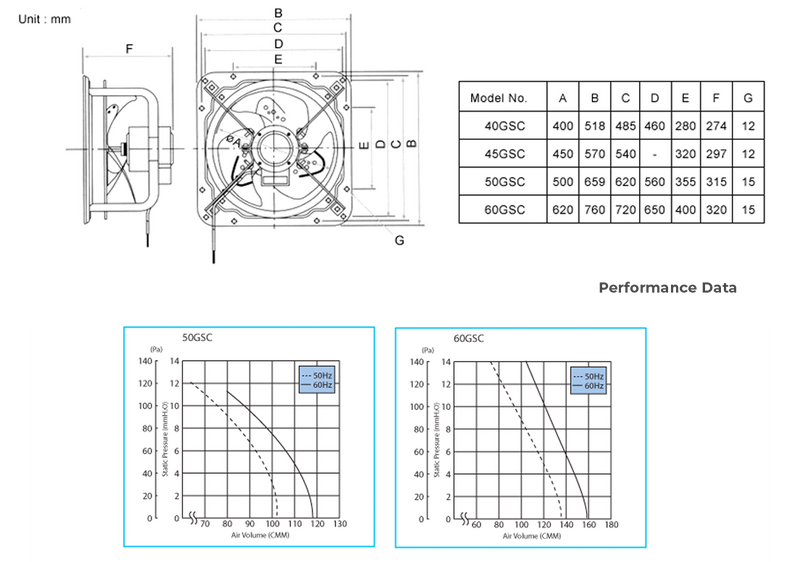

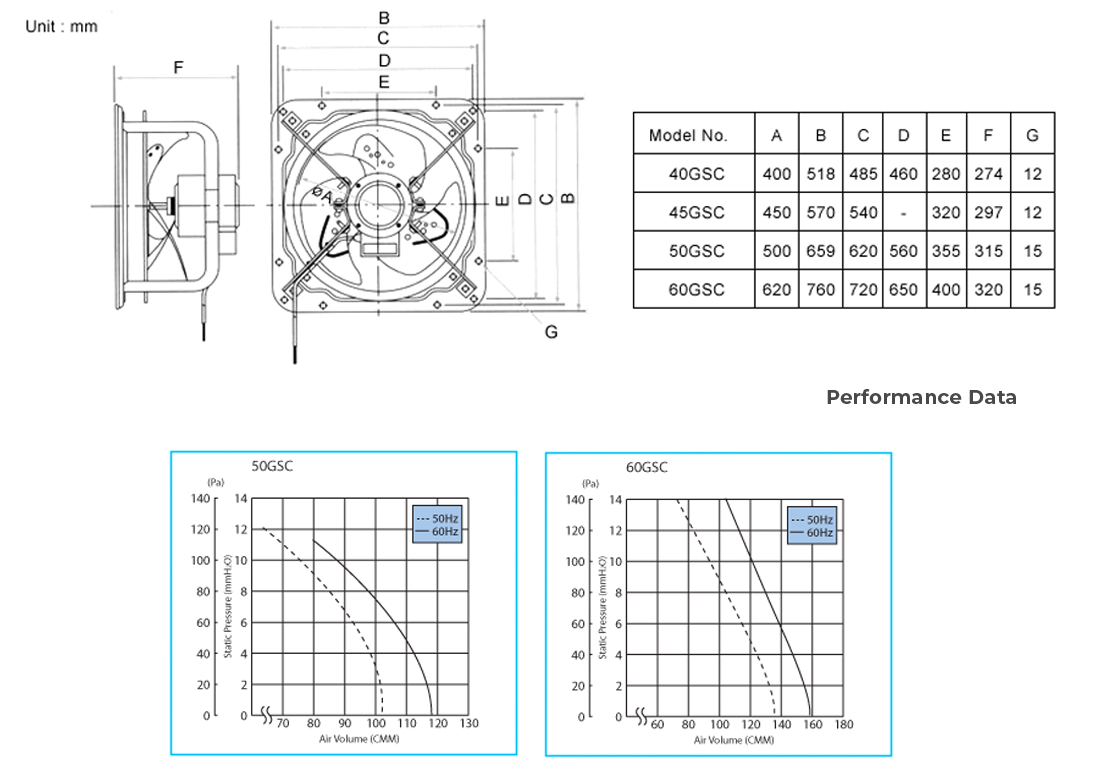

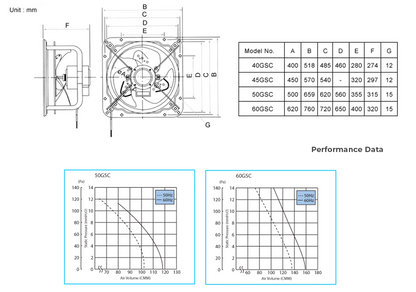

Product Specifications
| Blade Size | 50 cm (20″) |
|---|---|
| Power Consumption | 249 W |
| Speed | 960 RPM |
| Airflow | 6,130 m³/h (3,608 CFM) |
| Noise Level | 47 dB(A) |
| Weight | 22.5 kg |
| Voltage / Frequency | 240 V / 50 Hz |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1-year local warranty covering motor and manufacturing defects
- Includes parts and labour through authorised service centres
- Warranty begins from date of purchase – please retain proof of purchase
Why Choose the 50GSC?
The 50GSC is engineered for consistent, high-volume airflow in commercial and industrial settings. Its powerful motor, reversible function, and moisture-resistant design make it a dependable choice for ventilation in Singapore’s challenging environments.
