Description

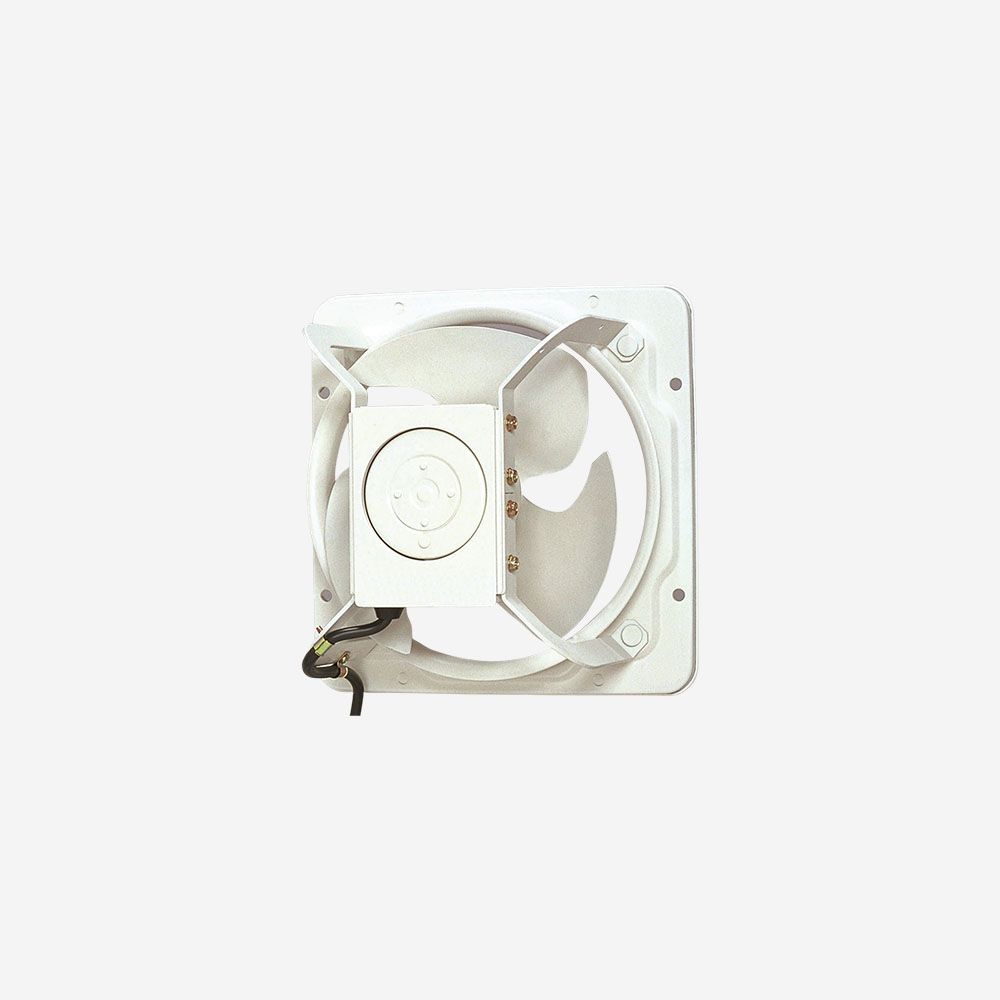

KDK 45GTC 45 cm (18″) Industrial High‑Pressure Ventilating Fan
Built for industrial spaces like commercial kitchens, warehouses, and workshops, the KDK 45GTC delivers robust high-pressure airflow in a slim, durable frame—ideal for demanding Singapore environments.
Key Features
- High-pressure wave-shape blade & bell-mouth design – ensures smooth, turbulence-free airflow
- Reversible, three-phase operation – switch between intake and exhaust modes
- Enclosed 4‑pole motor with thermal fuse – optimal safety and long-term durability
- Drain mechanism & powder-coated steel body – protects against dust and moisture intrusion
- Wide temperature range – functions from −10 °C to +50 °C
- Flexible mounting options – supports both horizontal and vertical installation
- Slim design – saves space and simplifies installation

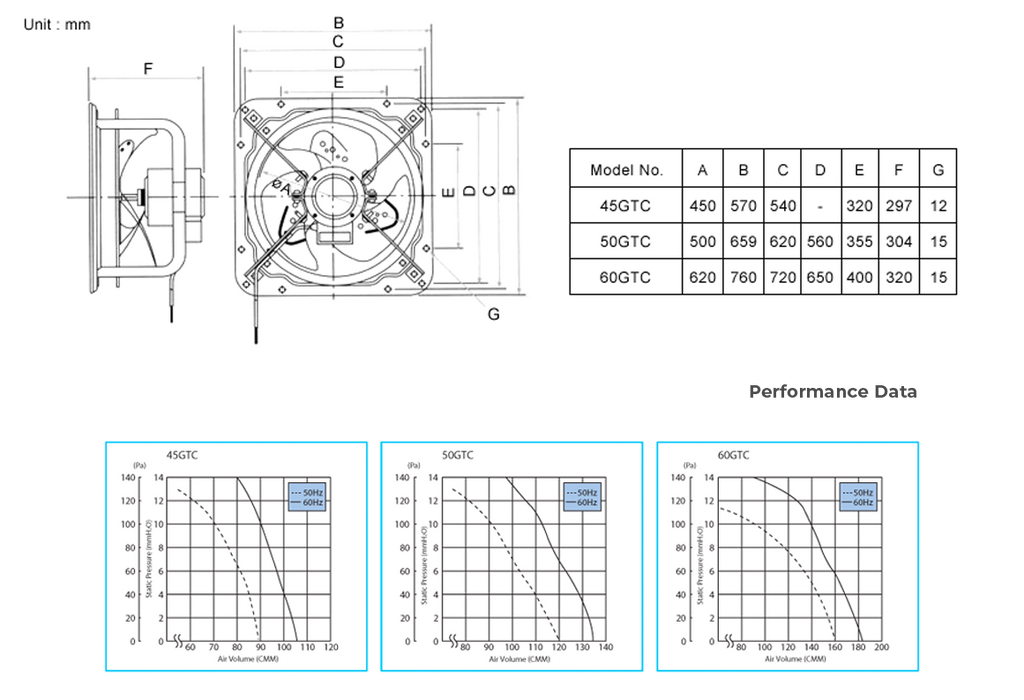

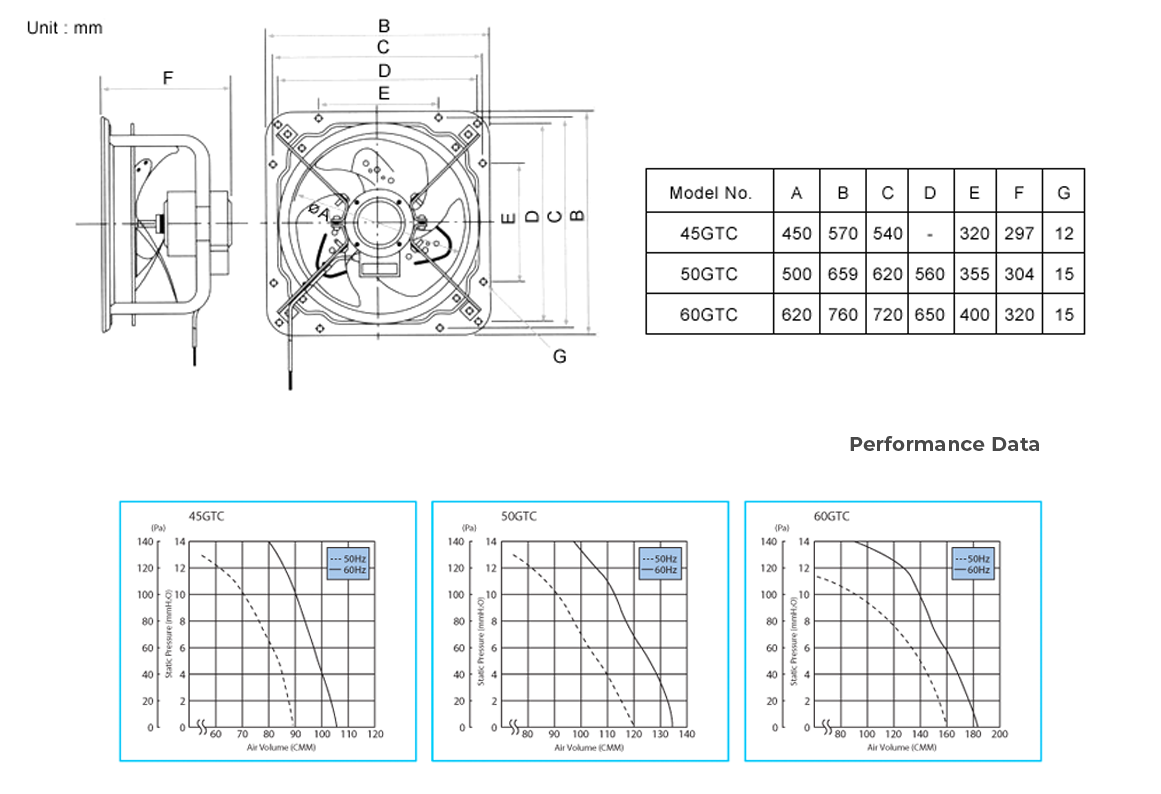

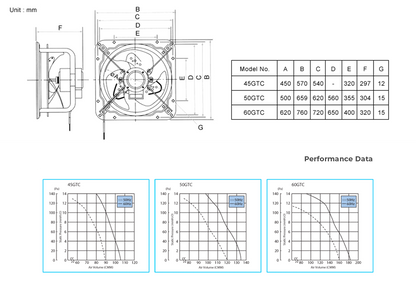

Product Specifications
| Blade Diameter | 45 cm (18″) |
|---|---|
| Power Consumption | ≈ 240 W |
| Speed | ≈ 1,460 RPM |
| Airflow | ≈ 5,420 m³/h (3,190 CFM) |
| Noise Level | ≈ 52 dB(A) |
| Weight | ≈ 18.5 kg |
| Voltage/Frequency | Three‑phase, 50 Hz |
| Mounting Options | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and build defects via authorised distributor
- Covers parts and labour through authorised service centres
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 45GTC?
The 45GTC stands out for its industrial-grade airflow, durable motor, and moisture-resistant design. Its space-saving profile and versatile mounting options make it a dependable choice for heavy-duty ventilation needs in Singapore’s commercial settings.
