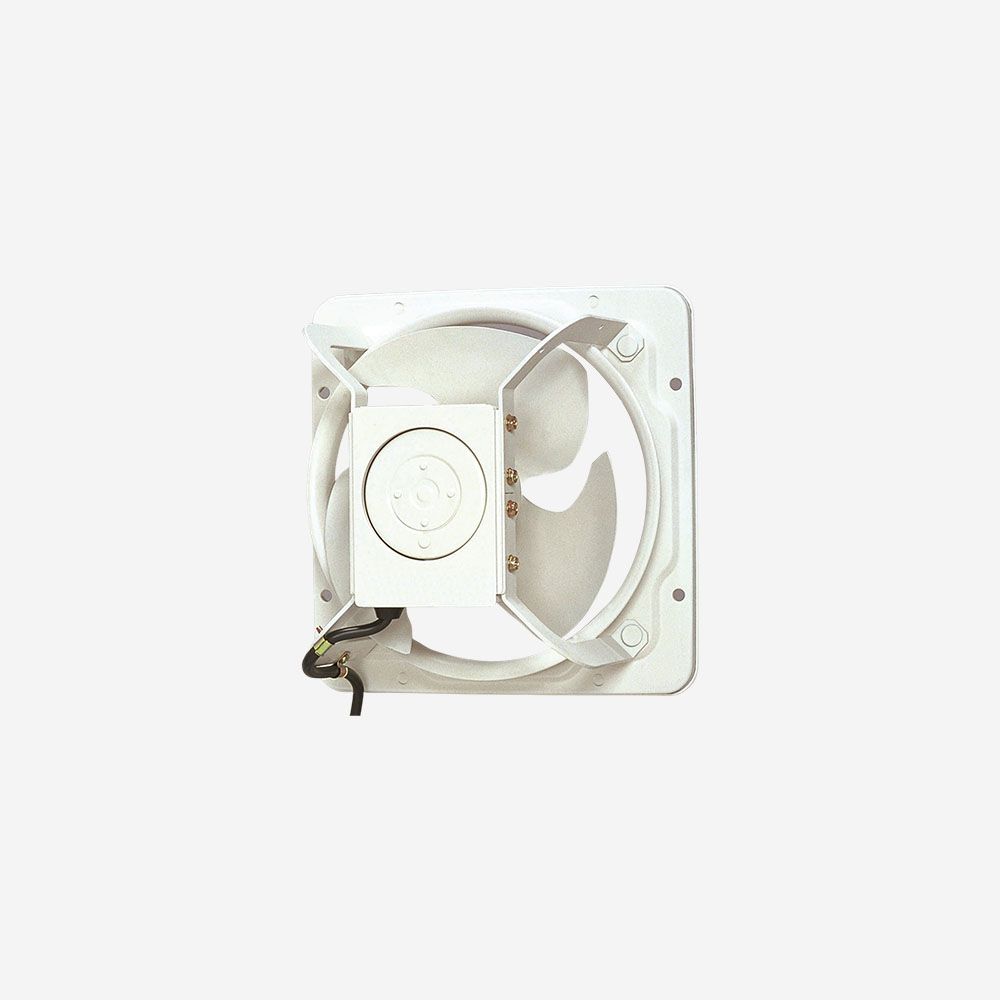

KDK 45GSC 45 cm (18″) Industrial High‑Pressure Ventilating Fan
Built for heavy-duty environments like commercial kitchens, factories, and workshops, the KDK 45GSC delivers powerful, high-pressure airflow in a slim, durable frame—designed to meet the demands of Singapore’s industrial spaces.
Key Features
- Wave-shape blade & bell-mouth design – ensures smooth, turbulence-free airflow for effective air exchange
- Reversible airflow – user-selectable intake or exhaust functionality
- Totally enclosed 4-pole condenser motor (227 W) with thermal fuse for safety and longevity
- Drain system & powder-coated steel body – protects motor against dust and moisture ingress
- Wide operating range – from −10 °C to +50 °C for versatile installations
- Horizontal or vertical mounting – flexible for diverse site requirements

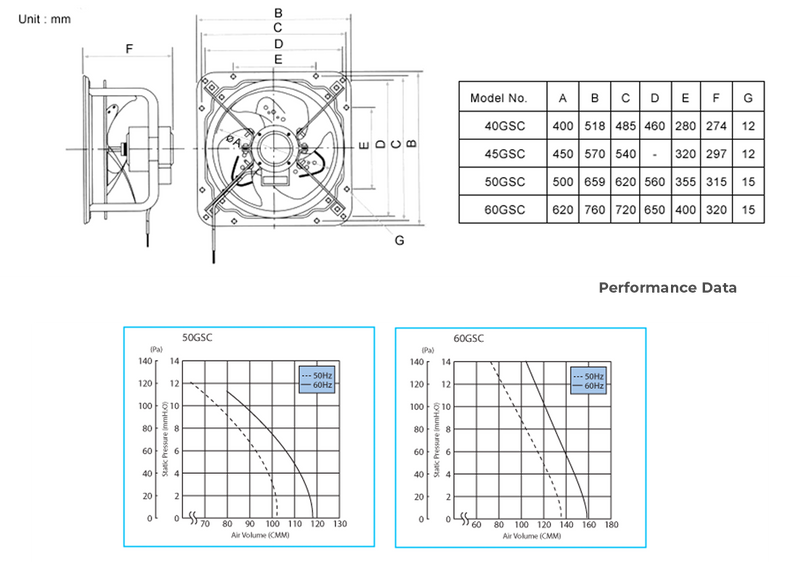

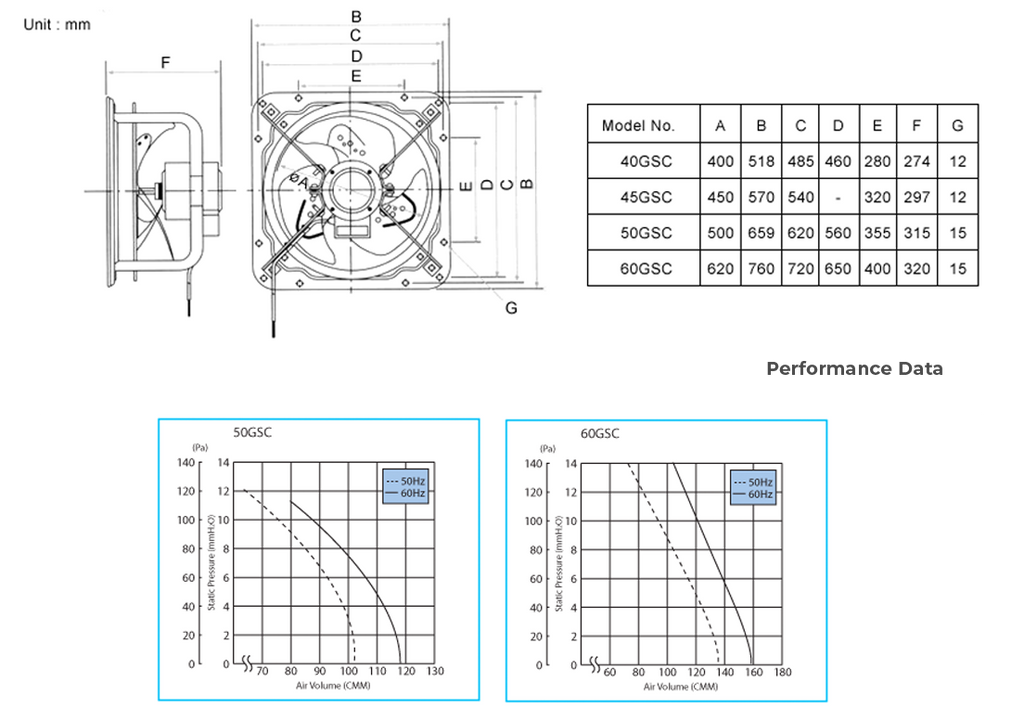

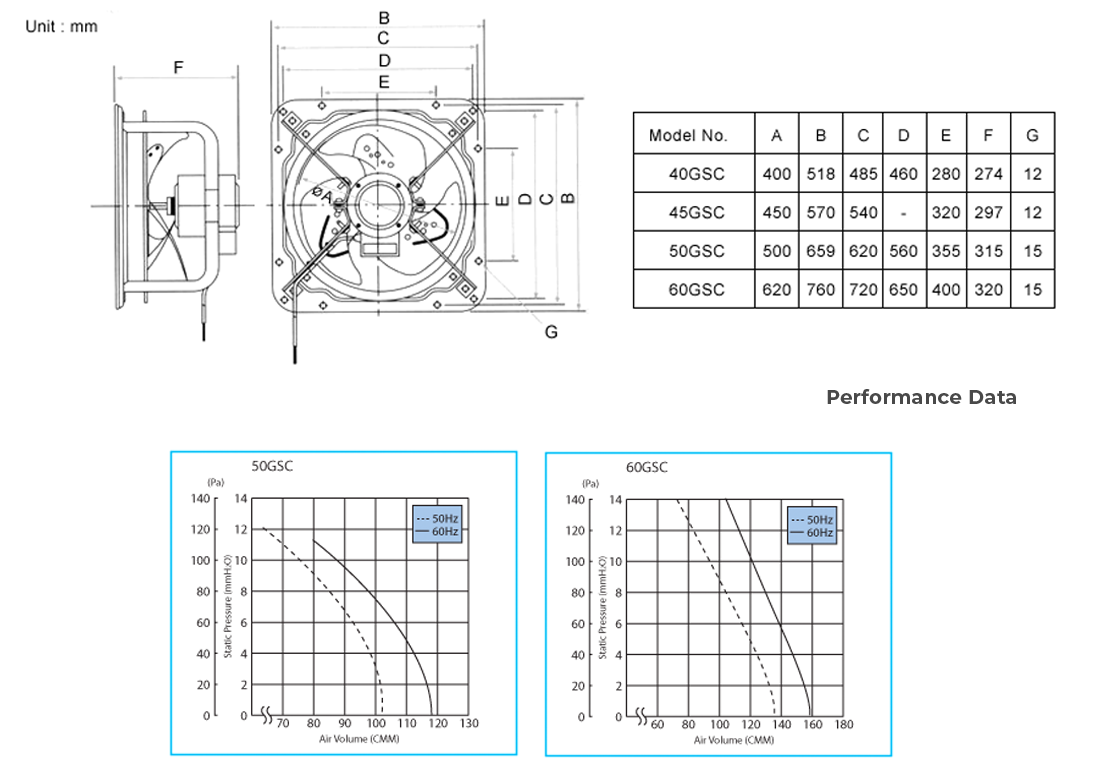

Product Specifications
| Blade Size | 45 cm (18″) |
|---|---|
| Power Consumption | 227 W |
| Rotational Speed | ≈ 1 410 RPM |
| Airflow | ≈ 5 200 m³/h (≈ 3 060 CFM) |
| Noise Level | ≈ 51 dB(A) |
| Weight | ≈ 19 kg |
| Installation Options | Horizontal or vertical mounting |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and structural defects via authorised distributor
- Covers parts and labour through SMM‑approved service centres
- Warranty valid from date of purchase—retain your proof of purchase
Why Choose the 45GSC?
The 45GSC is the go-to industrial fan for rugged environments, combining high-pressure airflow, reversible functionality, and a weather-resistant build. Its compact footprint, versatile mounting, and reliable motor make it an ideal ventilation solution for busy Singaporean facilities.
