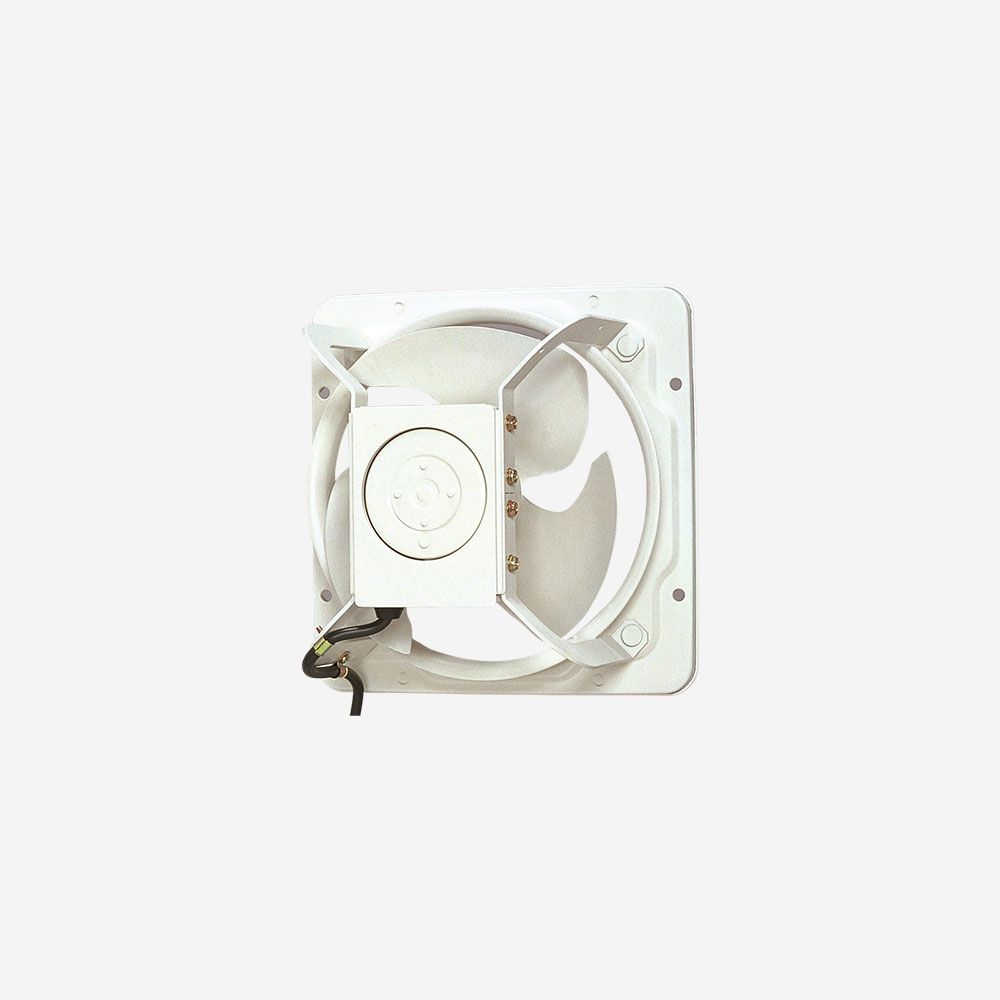

KDK 40GSC 40 cm (16″) Industrial High‑Pressure Ventilating Fan
Built to perform in commercial kitchens, warehouses, workshops, and other heavy-duty environments, the KDK 40GSC delivers powerful, high-pressure airflow with a slim, robust design and reversible operation.
Key Features
- 16″ high-pressure wave-shape blade & bell‑mouth design – smooth, turbulence-free airflow with increased static pressure
- Reversible airflow – switch between intake and exhaust effortlessly
- Fully enclosed 4‑pole condenser motor (161 W) with thermal fuse – stable performance with built-in protection
- Drain mechanism & powder-coated steel body – prevents moisture and dust ingress for long-term durability
- Compact, slim profile – ideal for space‑constrained installations
- Wide operating range – functions from −10 °C to +50 °C
- Flexible mounting – supports both horizontal and vertical installation

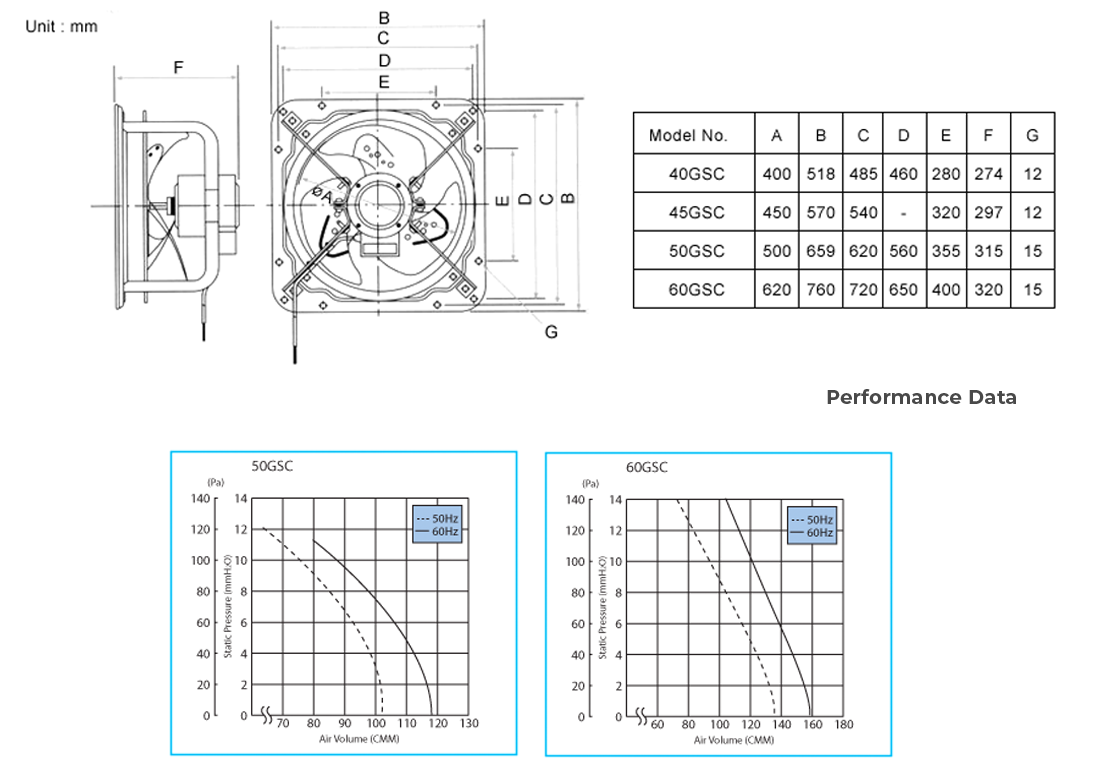

Product Specifications
| Blade Diameter | 40 cm (16″) |
|---|---|
| Power Consumption | 161 W |
| Rotational Speed | 1 450 RPM |
| Airflow | ≈ 2 124 CFM (≈ 3 610 m³/h) |
| Noise Level | 47 dB(A) |
| Net Weight | 19 kg |
| Voltage/Frequency | 240 V / 50 Hz |
| Operating Temperature | −10 °C to +50 °C |
| Mounting Options | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and build defects via authorised distributor
- Includes parts and labour at approved service centres
- Warranty valid from date of purchase—retain your proof of purchase
Why Choose the 40GSC?
The 40GSC merges industrial-grade power with smart engineering—featuring a compact profile, robust motor with built-in safety, moisture protection, and reversible airflow. It's the premium choice for effective ventilation in demanding Singapore environments.
