Description

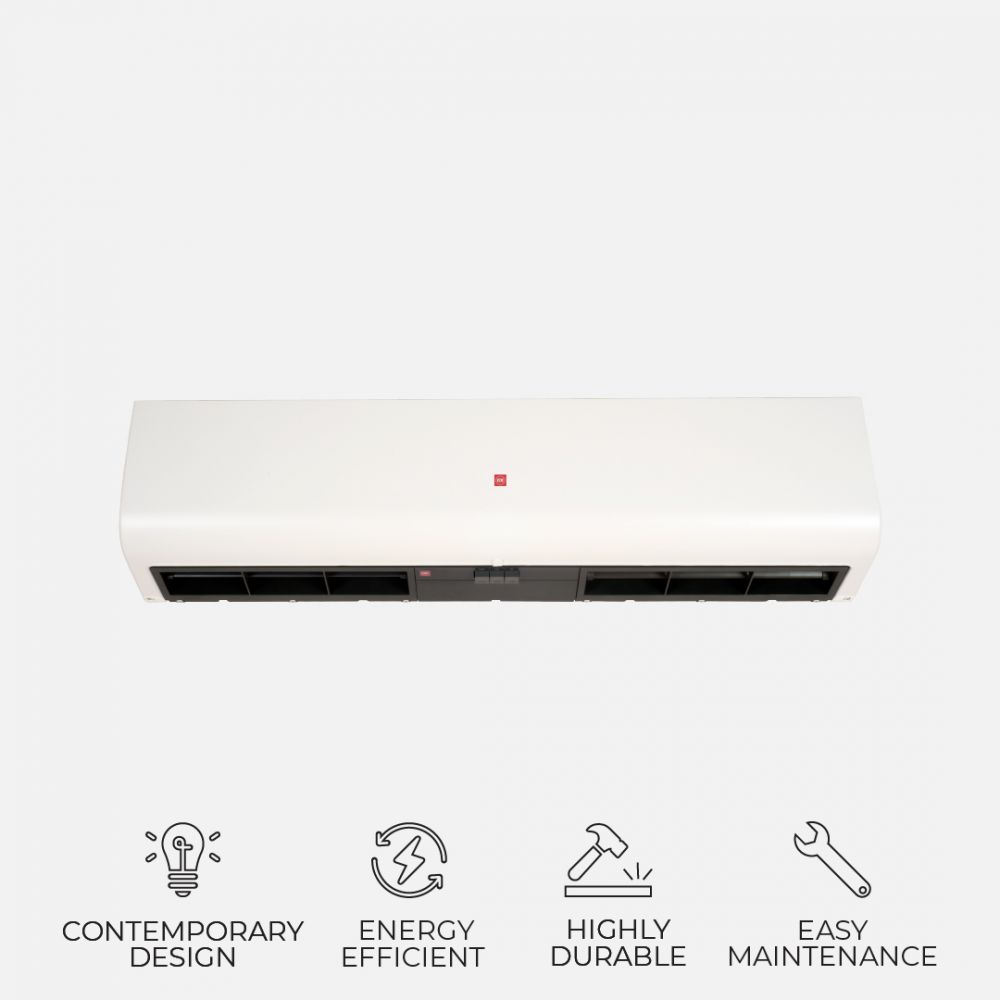

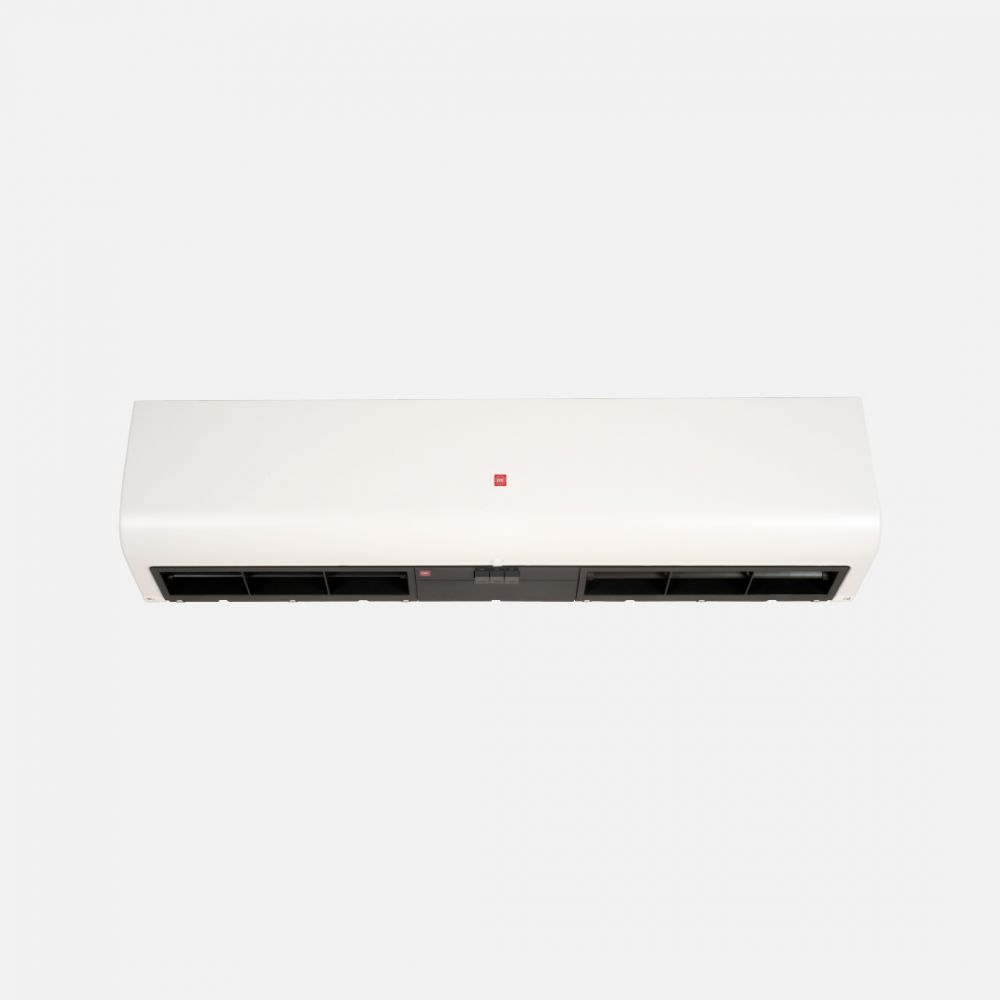

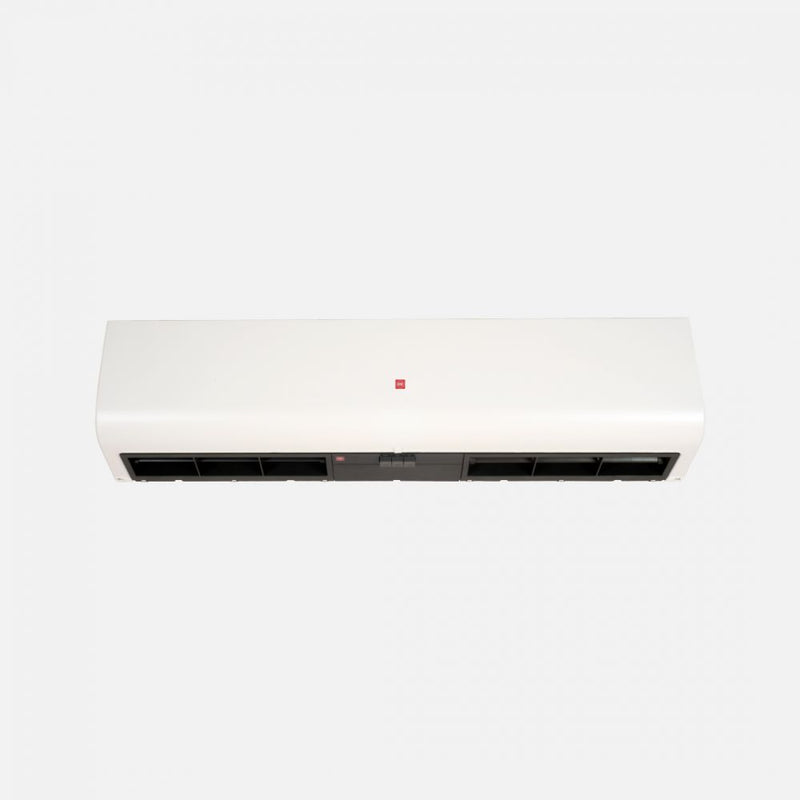

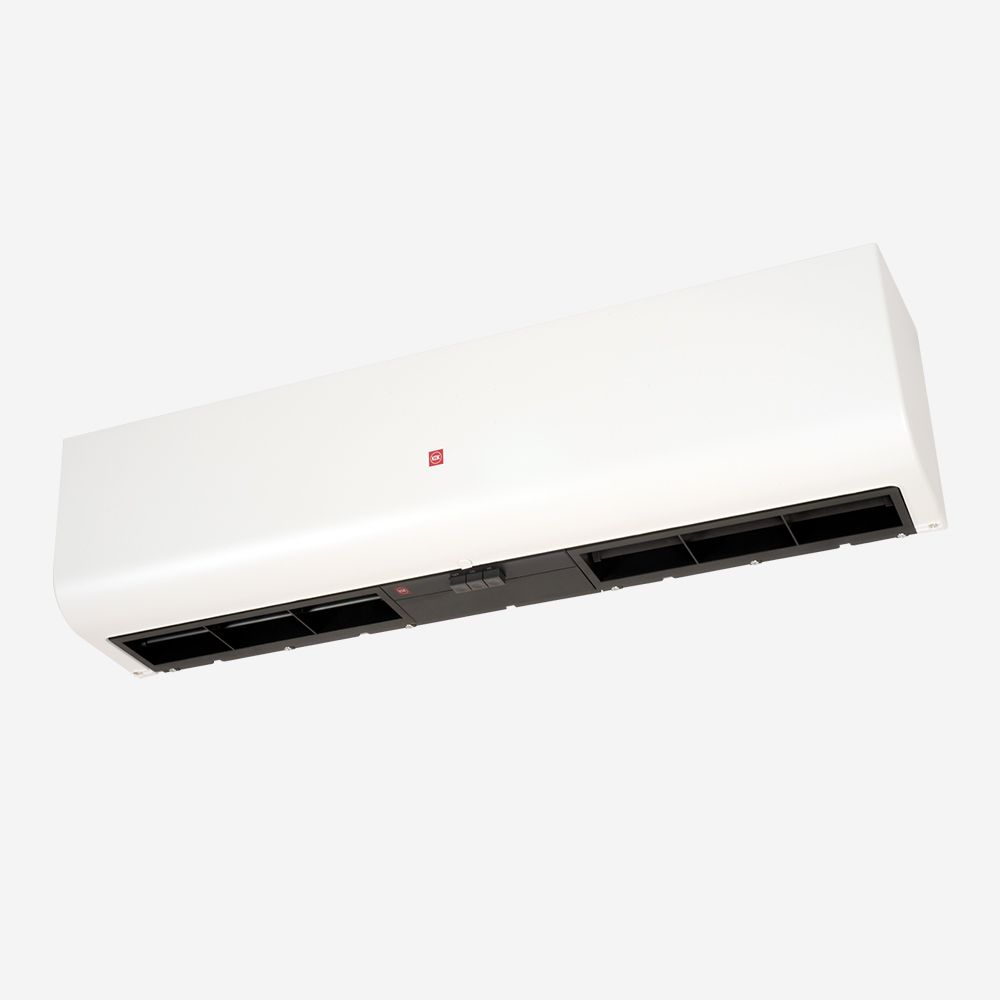

KDK 4012UA 1,200 mm (4 ft) Air Curtain
Maintain a pristine indoor environment with the KDK 4012UA. Its sirocco-fan design delivers a powerful 4 m-high air barrier, ideal for shopfronts, F&B outlets, clinics, and commercial entrances in Singapore.
Key Features
- Advanced sirocco fan – creates a consistent, powerful "air door"
- Dual-speed control – customize airflow with high or low settings
- Adjustable deflection vents – fine-tune airflow direction to match doorway size
- Easy maintenance design – quick-access panel for fast inspection and cleaning
- Wall or ceiling mounting – versatile installation options

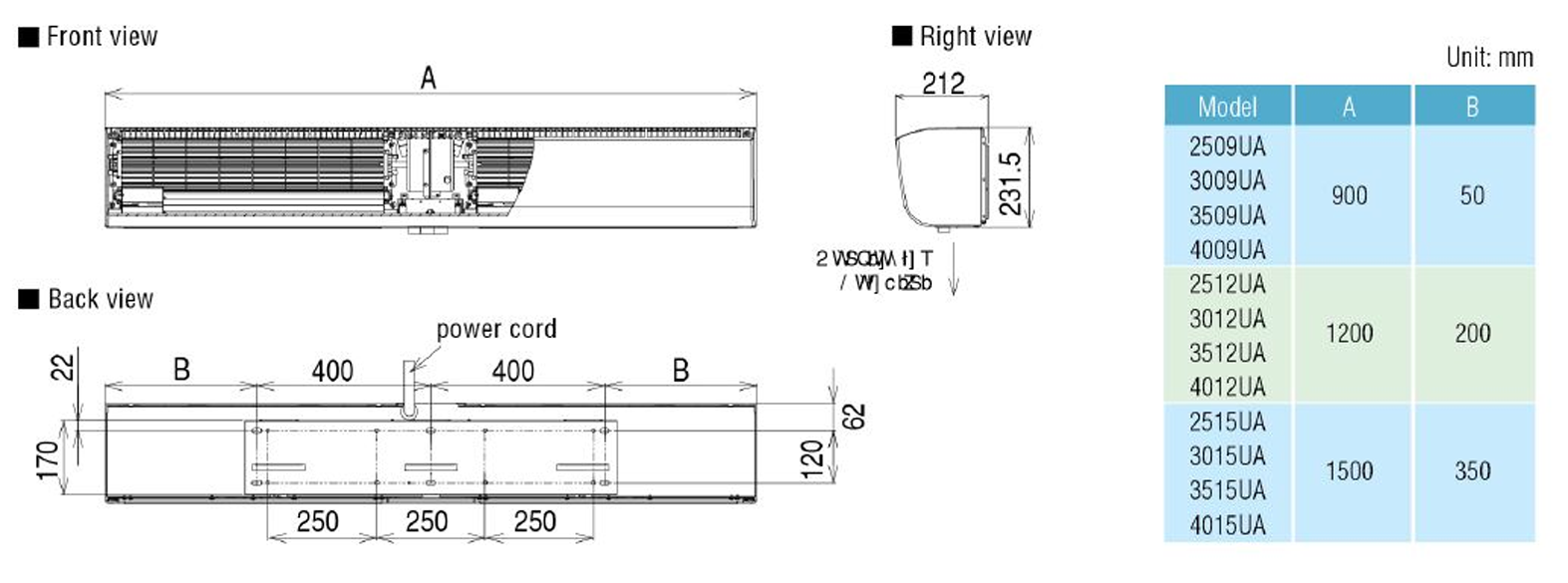

Product Specifications
| Length | 1,200 mm (4 ft) |
|---|---|
| Effective Barrier Height | ≈ 4 m (14 ft) |
| Air Volume | Hi: 1,800 m³/h (1,059 CFM) Lo: 1,580 m³/h (930 CFM) |
| Power Consumption | Hi: 139 W • Lo: 110 W |
| Current | Hi: 0.60 A • Lo: 0.49 A |
| Outlet Velocity | Hi: 12.5 m/s • Lo: 10.5 m/s |
| Noise Level | Hi: 54.5 dB(A) • Lo: 51 dB(A) |
| Weight | ≈ 15.5 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Full parts and labour support via authorized KDK service centers
- Warranty valid from purchase date—please retain your purchase receipt
Why Choose the 4012UA?
Combining high airflow capacity with easy maintenance and dual-speed flexibility, the 4012UA is ideal for Singapore businesses seeking reliable air barrier performance. Its adjustable shape and mounting options make it a versatile and efficient choice for commercial entrances.
