Description

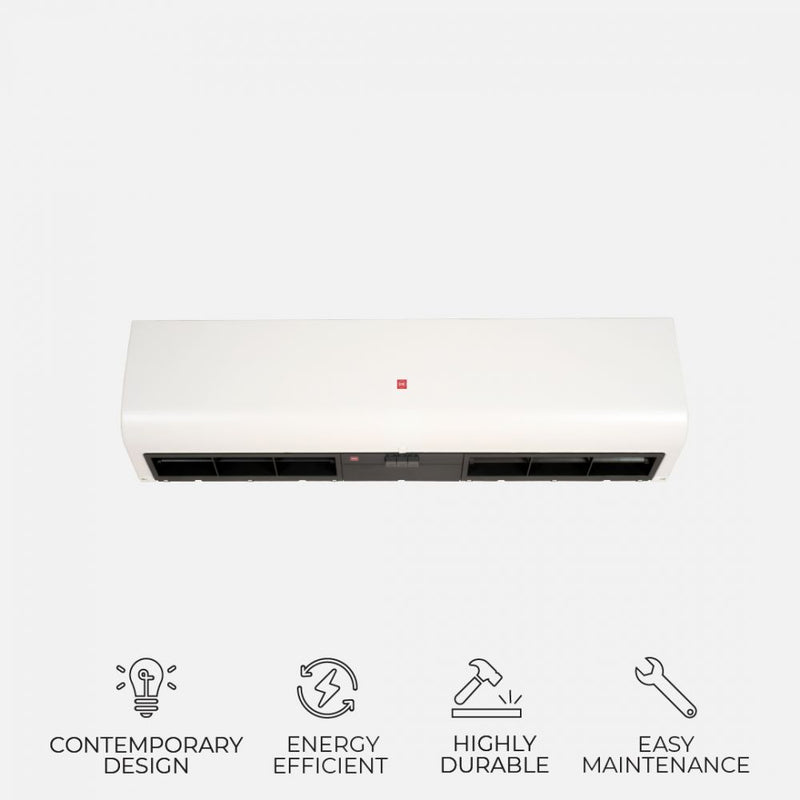

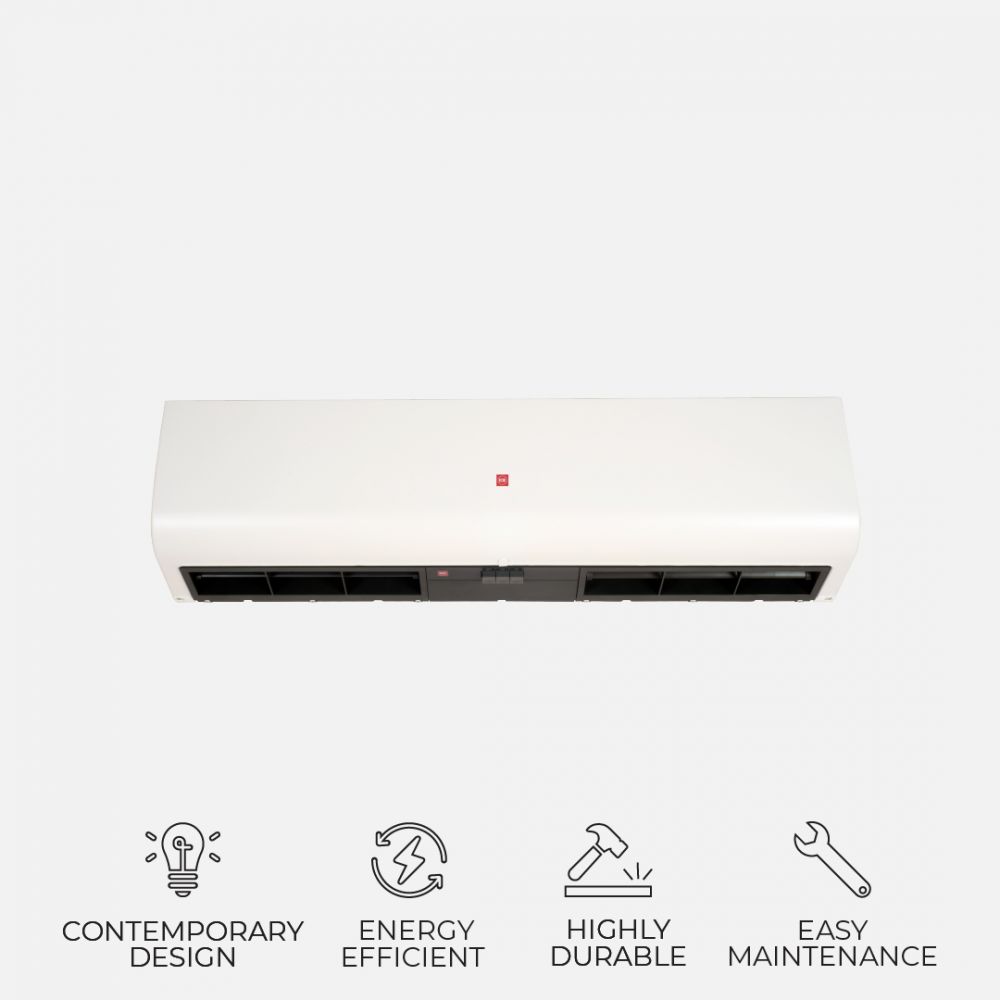

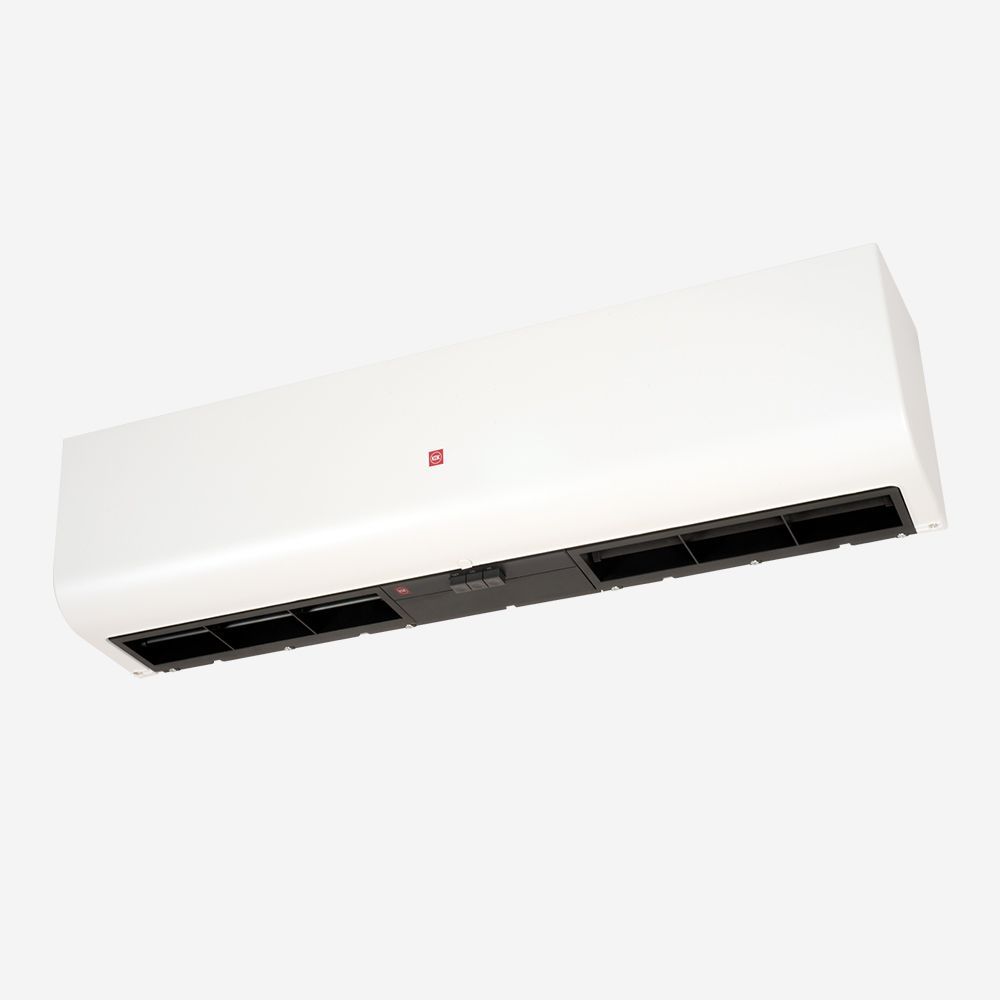

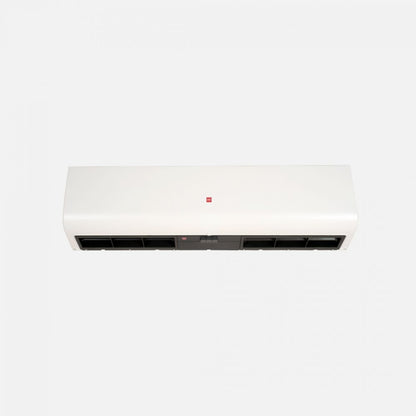

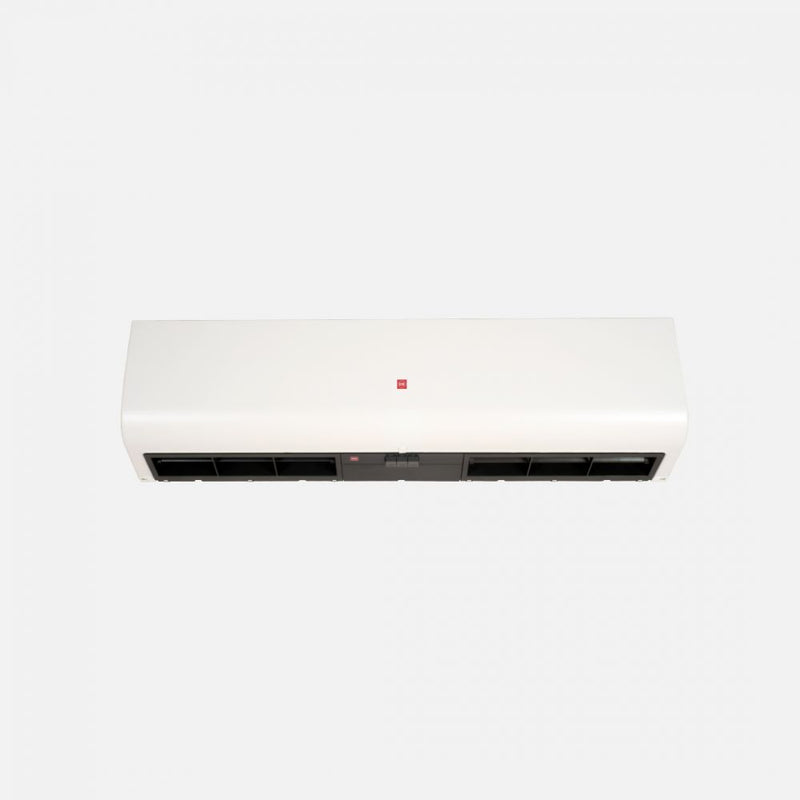

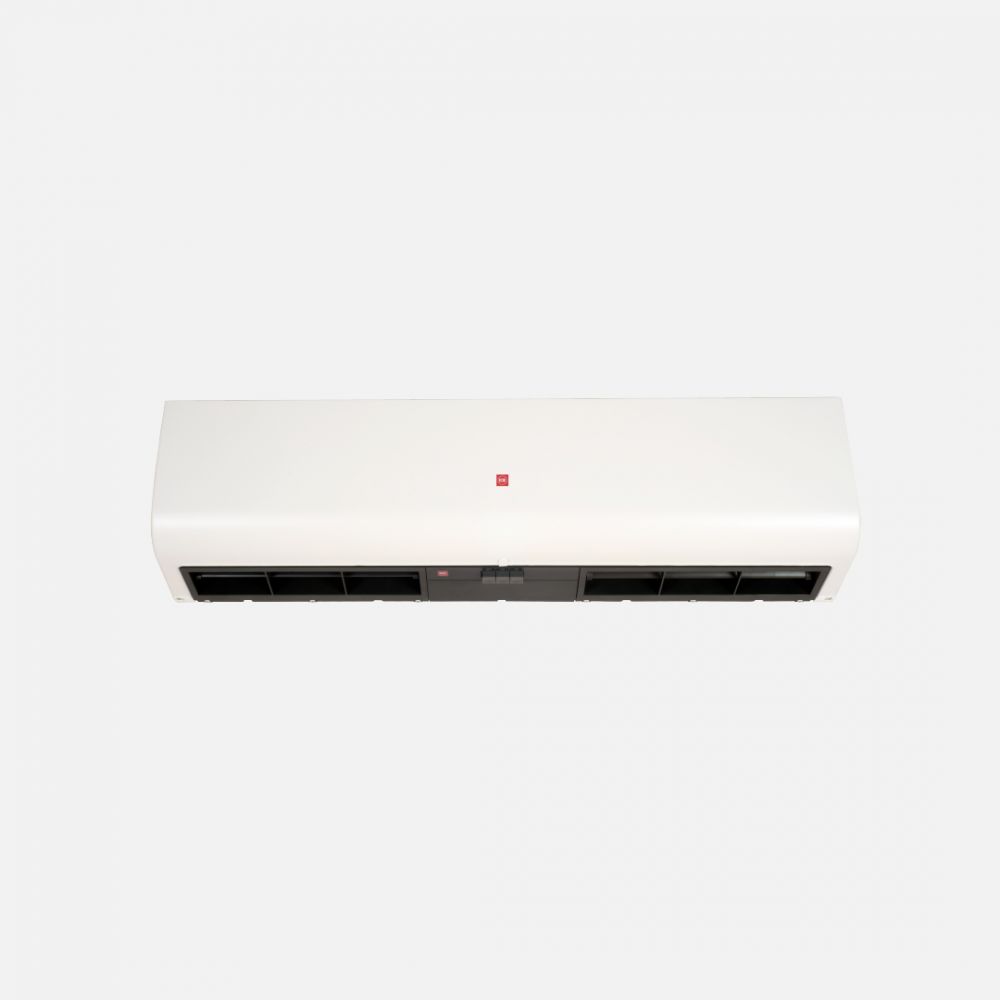

KDK 4009UA 900 mm (3 ft) Air Curtain
Maintain a clean, comfortable indoor space with the KDK 4009UA. Its sirocco-fan design creates a strong 4 m-high air barrier, blocking dust, insects, and conditioned air from escaping—ideal for retail, F&B outlets, and commercial entrances.
Key Features
- Unique sirocco fan design – generates a powerful and wide air “door”
- Dual-speed control – high and low airflow to suit different entry volumes
- Adjustable deflection vents – customize airflow direction for maximum coverage
- Sleek ABS housing – modern finish with easy wall or ceiling installation
- Quick-access inspection panel – maintenance-friendly design
Product Specifications
| Length | 900 mm (3 ft) |
|---|---|
| Effective Barrier Height | ≈ 4 m (14 ft) |
| Air Volume (High / Low) | 1,360 m³/h (800 CFM) / 1,200 m³/h (706 CFM) |
| Power Consumption | 122 W / 100 W |
| Current | 0.51 A / 0.43 A |
| Outlet Velocity | 12.5 m/s / 10.5 m/s |
| Noise Level | 56.5 dB(A) / 53.5 dB(A) |
| Weight | ≈ 12.5 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering manufacturing or motor defects
- Includes parts and labour at authorized service centers
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 4009UA?
The 4009UA offers industrial-level performance in a compact 900 mm unit. With its strong airflow capacity and easy maintenance design, it's an excellent choice for businesses wanting to improve hygiene, reduce dust ingress, and save on air-conditioning energy in Singapore.
