Description

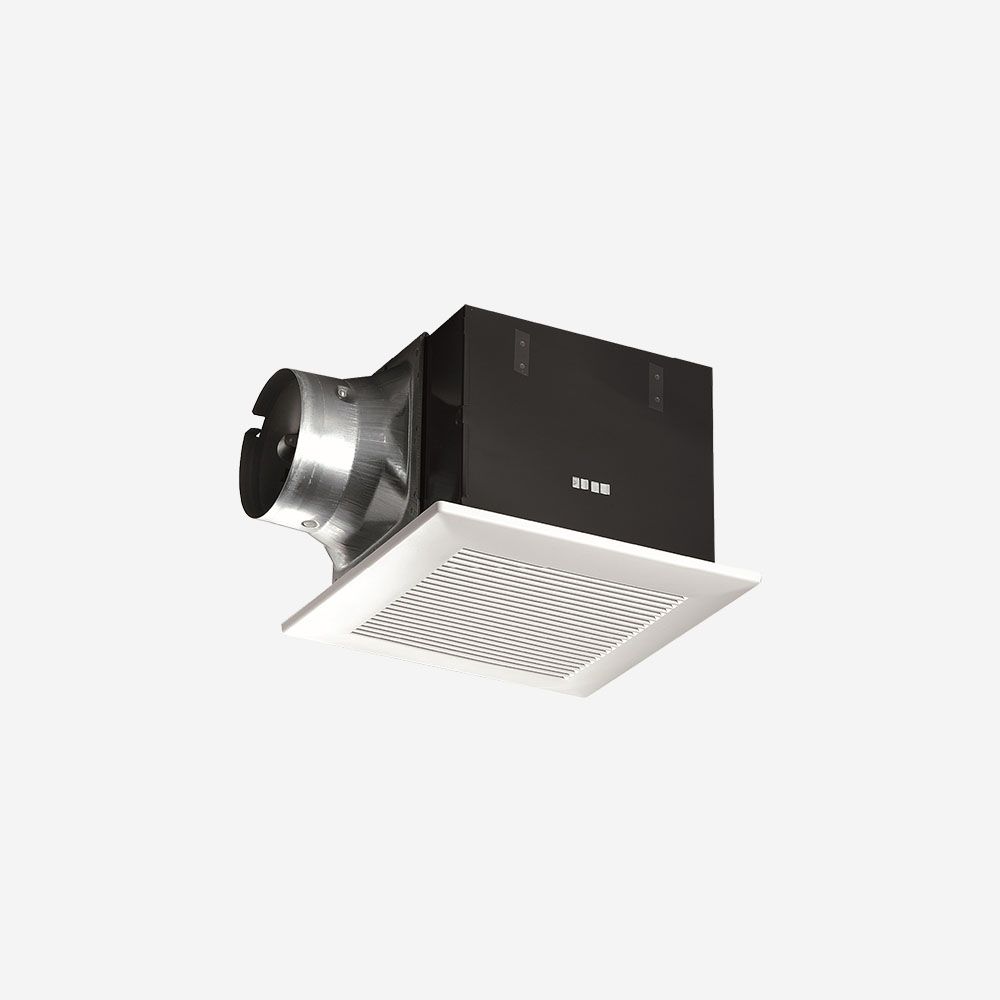

KDK 38CHG 38 cm (15″) Ceiling‑Mounted Ventilating Fan (2‑Speed)
The KDK 38CHG is a heavy-duty ceiling fan tailored for larger bathrooms, kitchens, or utility rooms. Its powerful dual-speed motor and noise-reducing design make it perfect for Singapore spaces requiring strong yet quiet ventilation.
Key Features
- Dual-speed motor – switch between high and low settings depending on airflow needs
- Reverse-flow shutter – installed on the adapter to prevent backdraft when idle
- Seam-processed steel casing – durable and neatly finished
- High-performance tapered sirocco blade – maximizes airflow with minimal turbulence
- Square-to-round Ø150 mm adapter – with nails for secure ducting
- Cassette-style discharge grille – clean, ceiling-integrated look with one-touch louver for easy access

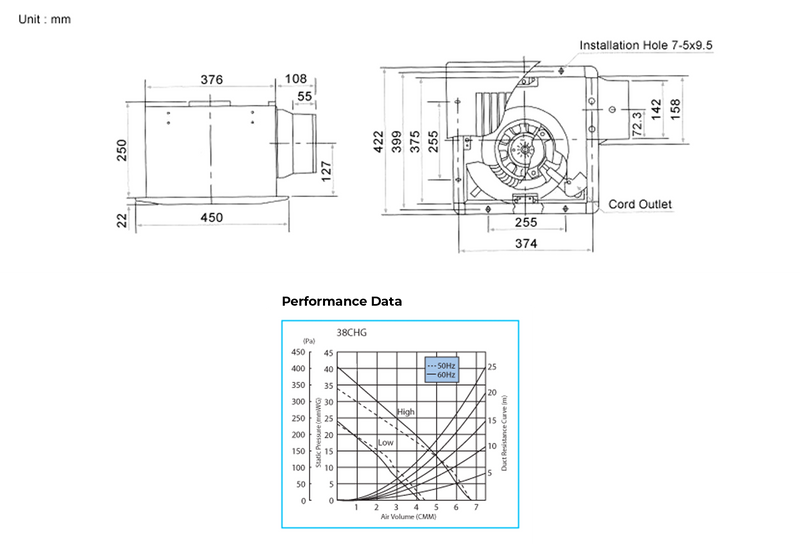

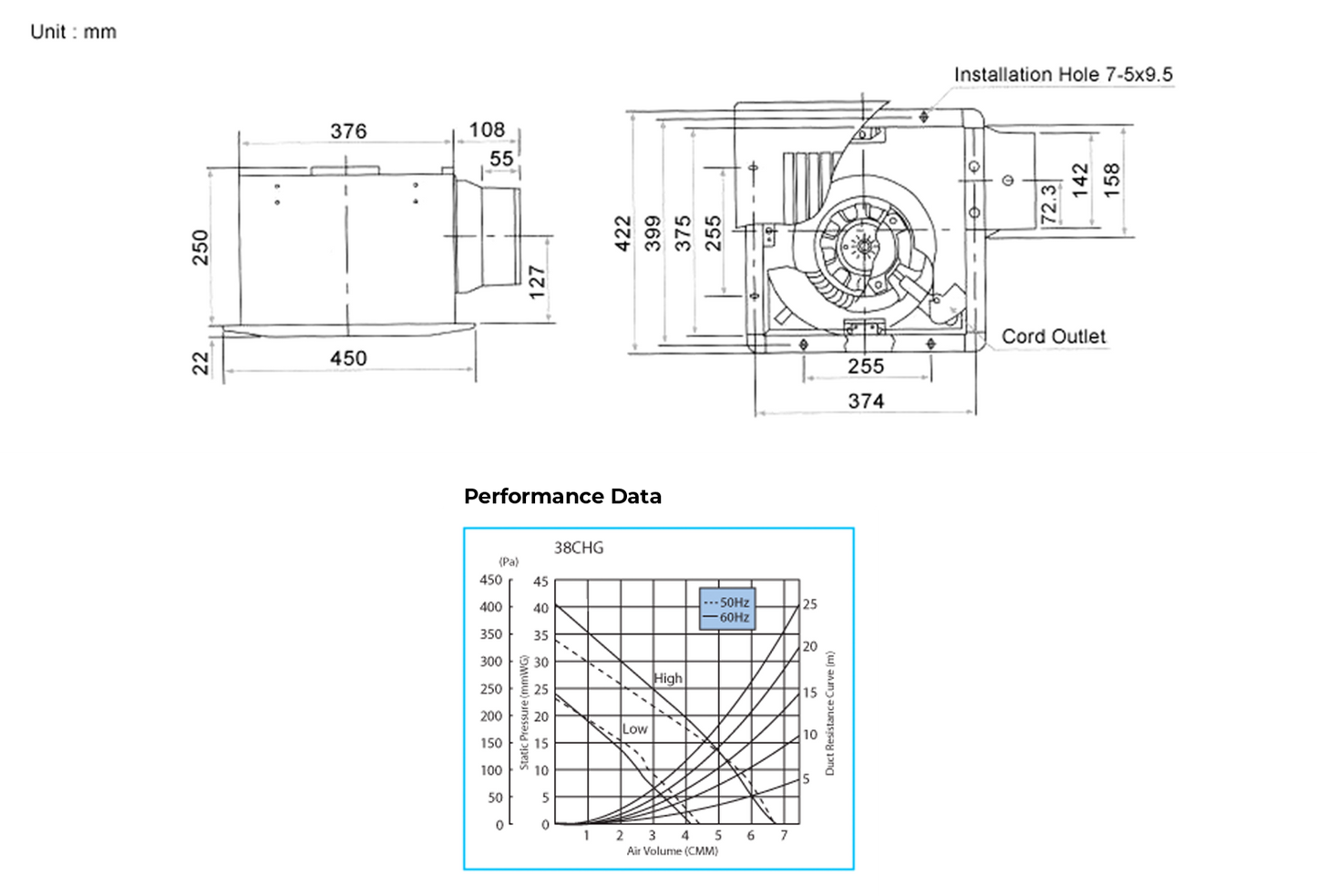

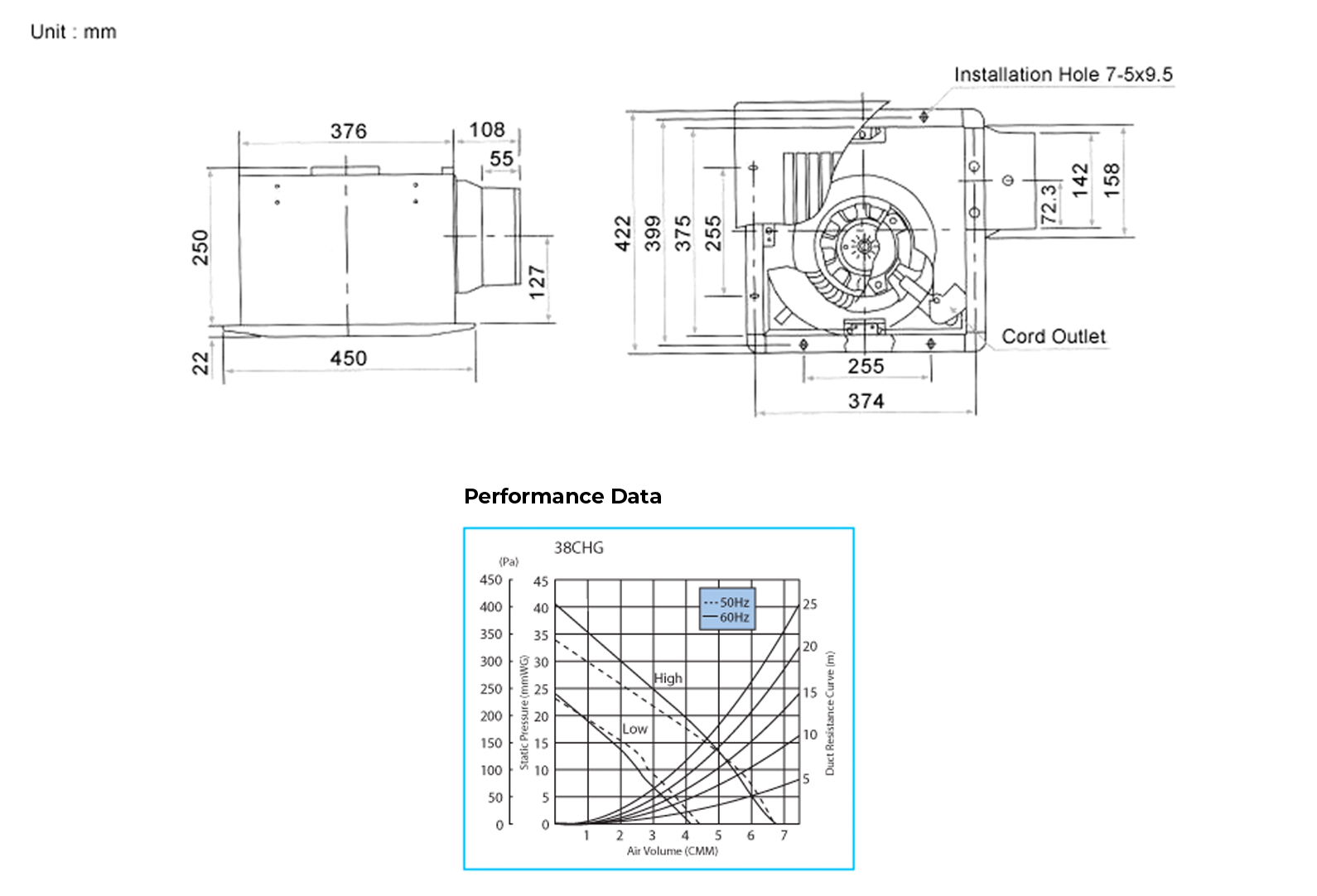

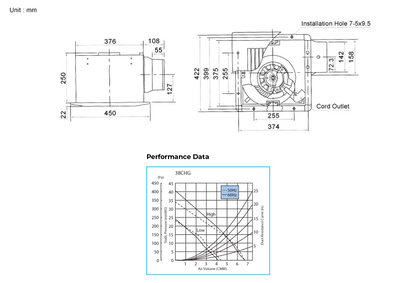

Product Specifications
| Duct Size | Ø 150 mm |
|---|---|
| Airflow | Hi: ≈ 800 m³/h (471 CFM) • Lo: ≈ 525 m³/h (309 CFM) |
| Power Consumption | Hi: 122 W • Lo: 89 W |
| Speed | Hi: 790 RPM • Lo: 540 RPM |
| Noise Level | Hi: ≈ 50 dB(A) • Lo: ≈ 40 dB(A) |
| Weight | ≈ 10.4 kg |
| Ceiling Cut‑out | ≈ 385 × 385 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and manufacturing defects
- Includes parts and labour at authorized service centers
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 38CHG?
Offering robust airflow in a dual-speed platform and stylish ceiling integration, the 38CHG is perfect for demanding spaces. Its efficient motor, backdraft shutter, and sound-dampening design ensure reliable, comfortable ventilation in larger Singapore rooms.
