Description

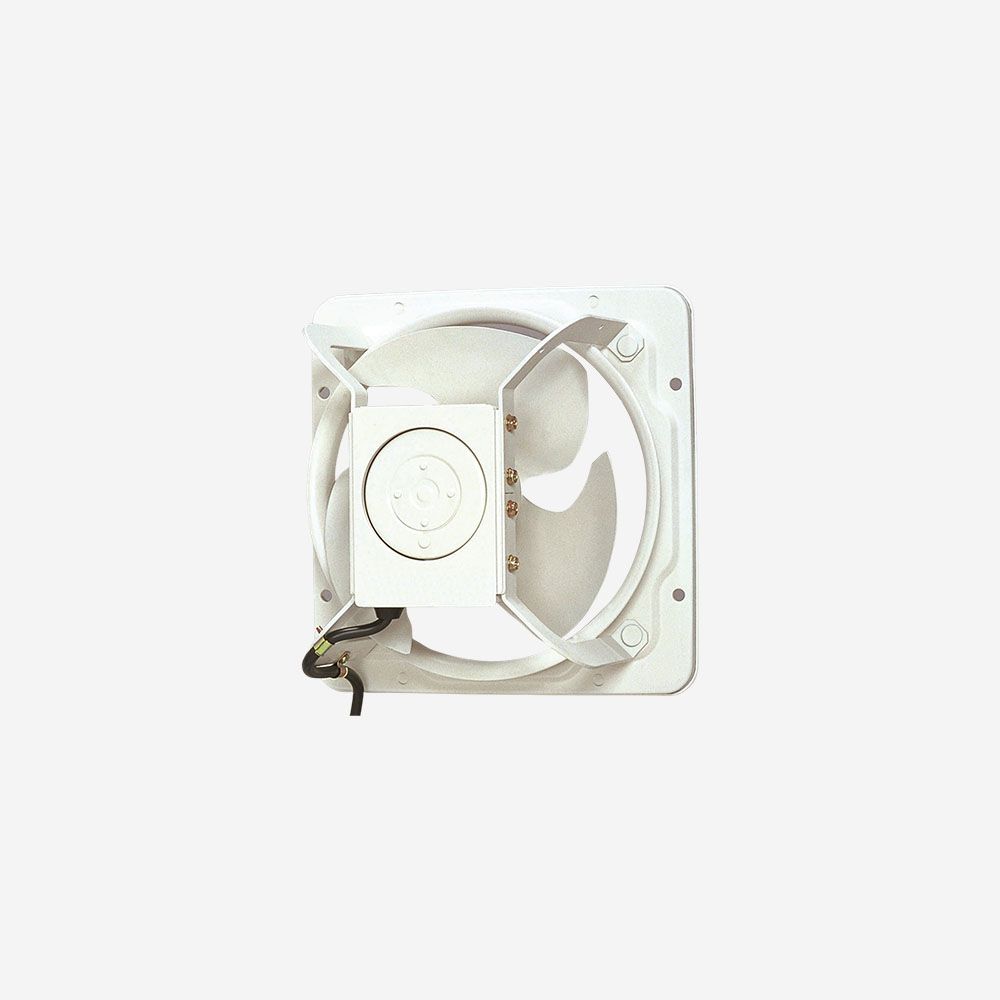

KDK 35GSC 35 cm (14″) Industrial High‑Pressure Ventilating Fan
Engineered for demanding environments like commercial kitchens, workshops, and warehouses, the KDK 35GSC delivers powerful, high-pressure airflow and robust durability in a compact form—built to handle tough Singapore conditions.
Key Features
- High-pressure wave-blade & bell-mouth design – ensures smooth airflow under heavy load
- Reversible airflow – switch easily between intake and exhaust modes
- Fully enclosed 4‑pole induction motor (88 W) with thermal fuse – safe and reliable
- Rugged powder-coated steel casing with drain protection to prevent dirt/moisture ingress
- Wide operating range – runs efficiently from −10 °C to +50 °C
- Flexible mounting – suitable for both horizontal and vertical installation

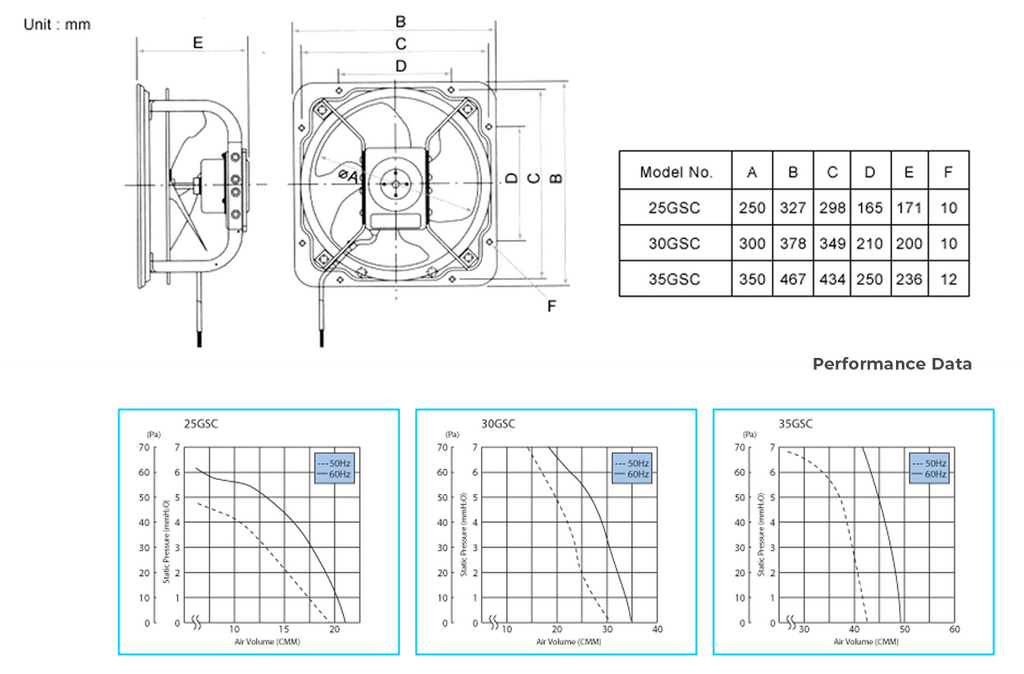

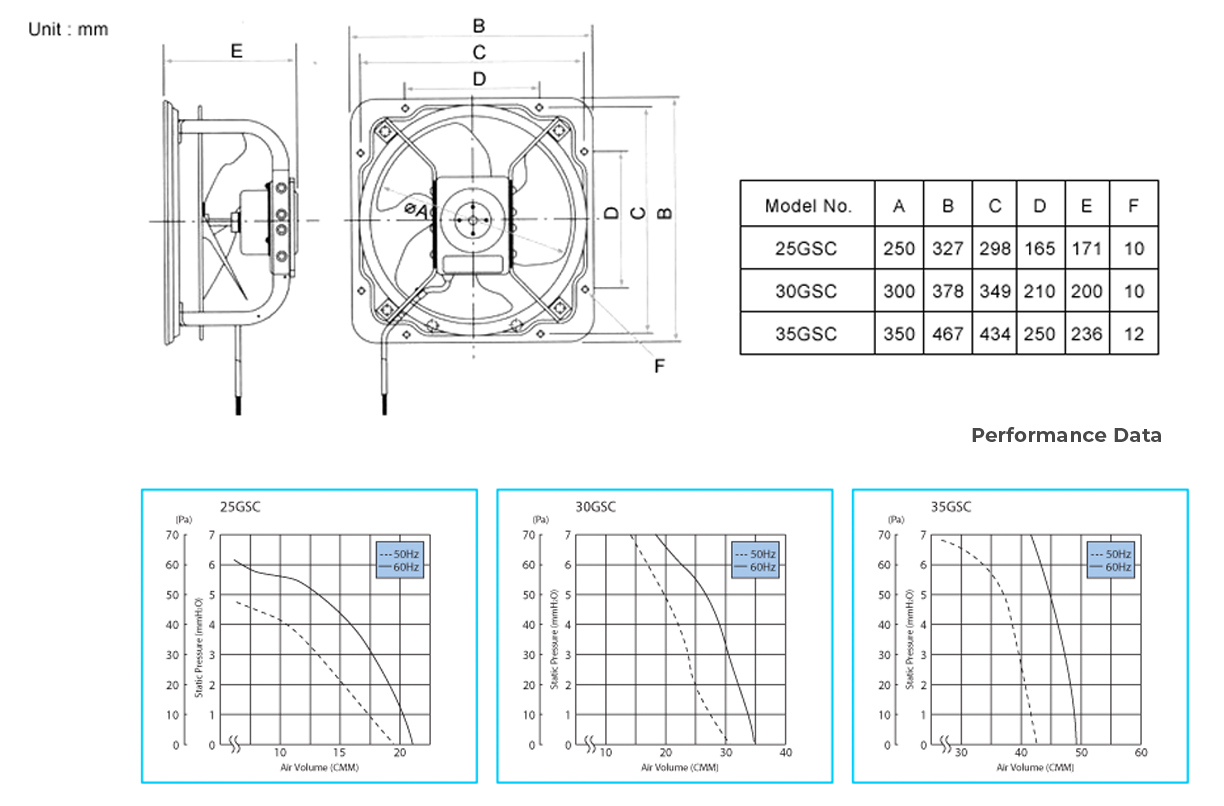

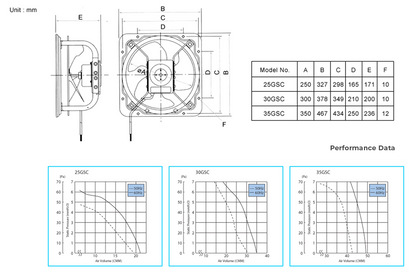

Product Specifications
| Blade Size | 35 cm (14″) |
|---|---|
| Power Consumption | 88 W |
| Speed | 1,420 RPM |
| Airflow | ≈ 1,506 CFM (≈ 2,560 m³/h) |
| Noise Level | ≈ 44 dB(A) |
| Weight | ≈ 10.5 kg |
| Voltage/Frequency | 240 V / 50 Hz |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and build defects via authorised distributor
- Parts and labour at approved service centres are included
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 35GSC?
The 35GSC combines high-pressure airflow, reversible operation, and weather-resistant construction for efficient ventilation in challenging settings. Its compact size and robust features make it the top choice for commercial-grade airflow needs in Singapore.
