Description

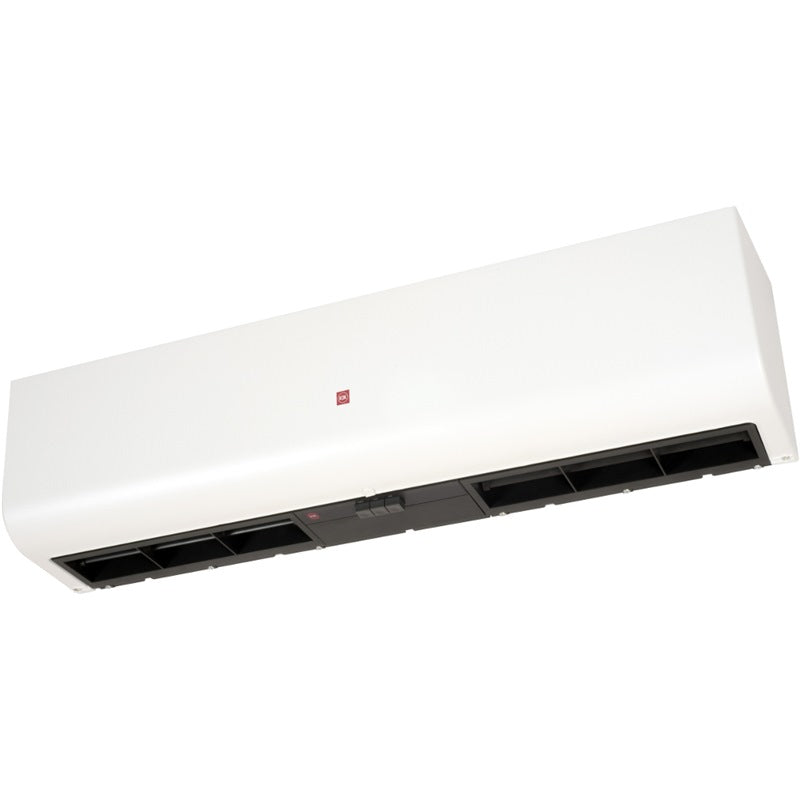

KDK 3512UA 1,200 mm (4 ft) Air Curtain
Protect your indoor spaces with the KDK 3512UA. Its sirocco fan design delivers a powerful air barrier up to 3.5 m high, ideal for shop entrances, F&B outlets, clinics, and commercial spaces in Singapore.
Key Features
- Sirocco fan design – creates a consistent airflow “door”
- Dual-speed control – easily switch between High/Low speed
- Adjustable louvers – fine-tune direction of airflow
- Quick-access panel – simplifies inspection and maintenance
- Wall or ceiling mountable – offers flexible installation
Product Specifications
| Length | 1,200 mm (4 ft) |
|---|---|
| Effective Barrier Height | ≈ 3.5 m (12 ft) |
| Air Volume (High / Low) | 1,650 m³/h / 1,400 m³/h (971 / 824 CFM) |
| Power (High / Low) | 122 W / 112 W |
| Current (High / Low) | 0.51 A / 0.47 A |
| Outlet Velocity (High / Low) | 11.0 m/s / 9.0 m/s |
| Noise Level (High / Low) | 51 dB(A) / 48 dB(A) |
| Weight | ≈ 14.5 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty against motor and manufacturing faults
- Parts and labour covered through authorized KDK service centers
- Warranty valid from purchase date—retain your proof of purchase
Why Choose the 3512UA?
The 3512UA combines powerful airflow, adjustable settings, and easy upkeep in a sleek design. Ideal for Singapore’s commercial entrances, it minimizes dust, insects, and energy loss while ensuring comfort and cleanliness.
