Description

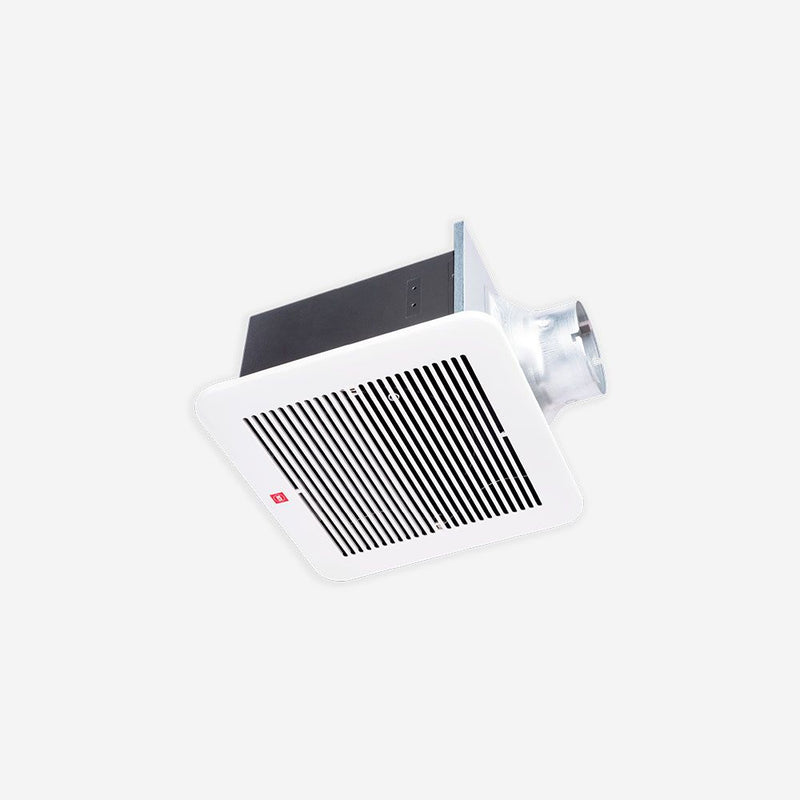

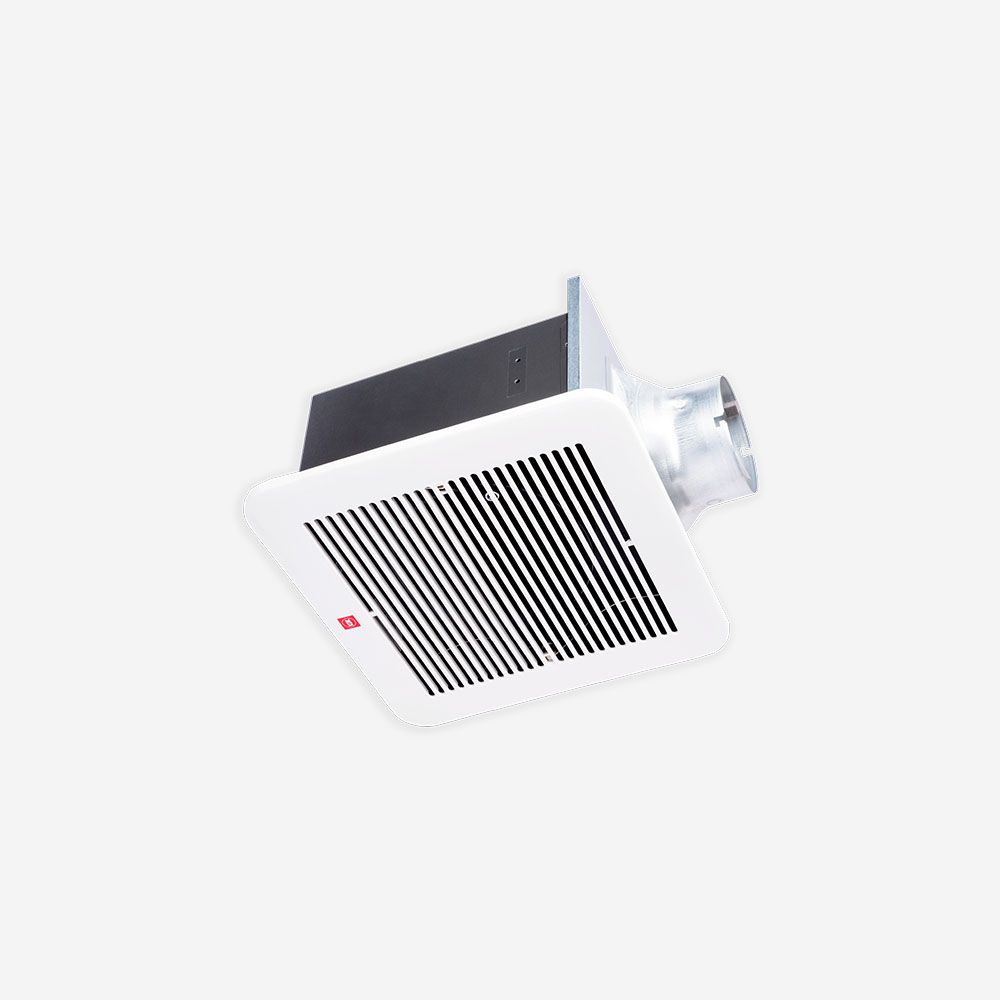

KDK 32CHH 32 cm (12.5″) Ceiling-Mounted Ventilating Fan
The KDK 32CHH offers smart, efficient ceiling ventilation for bathrooms, kitchens, and medium-radius rooms in Singapore. Featuring dual-speed control and an infrared motion sensor, it keeps air fresh and energy use low.
Key Features
- Infra-red motion sensor – automatically activates fan when movement is detected
- Two-speed operation – high and low airflow options for versatile use
- Tapered sirocco blade & double-chamber design – provides strong airflow while keeping noise minimal
- Reverse-flow shutter – prevents backdraft when the fan is off
- Seam-processed steel casing & pre-installed power cord – durable build and easy installation
- Super Alleru-buster filter with anti-bacterial treatment – helps maintain hygienic airflow
- One-touch louver & quick-release grille – hassle-free cleaning access
- Optional heater switch & safety-cut light – added thermal protection and water tray for moisture control
Product Specifications
| Duct Size | Ø 150 mm |
|---|---|
| Airflow (High) | ≈ 420 m³/h (≈ 247 CFM) |
| Power Consumption | 44 W |
| Speed (High) | ≈ 618 RPM |
| Noise Level | ≈ 38 dB(A) |
| Weight | ≈ 6 kg |
| Cut-out Size | ≈ 320 × 320 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and manufacturing defects
- Includes parts and labour via authorised service centres
- Please keep your proof of purchase to validate warranty
Why Choose the 32CHH?
Equipped with motion sensing and dual-speed flexibility, the 32CHH ensures fresh air flow only when needed. Its quiet operation, durable build, and hygiene-focused filter make it an excellent choice for modern Singaporean homes.
