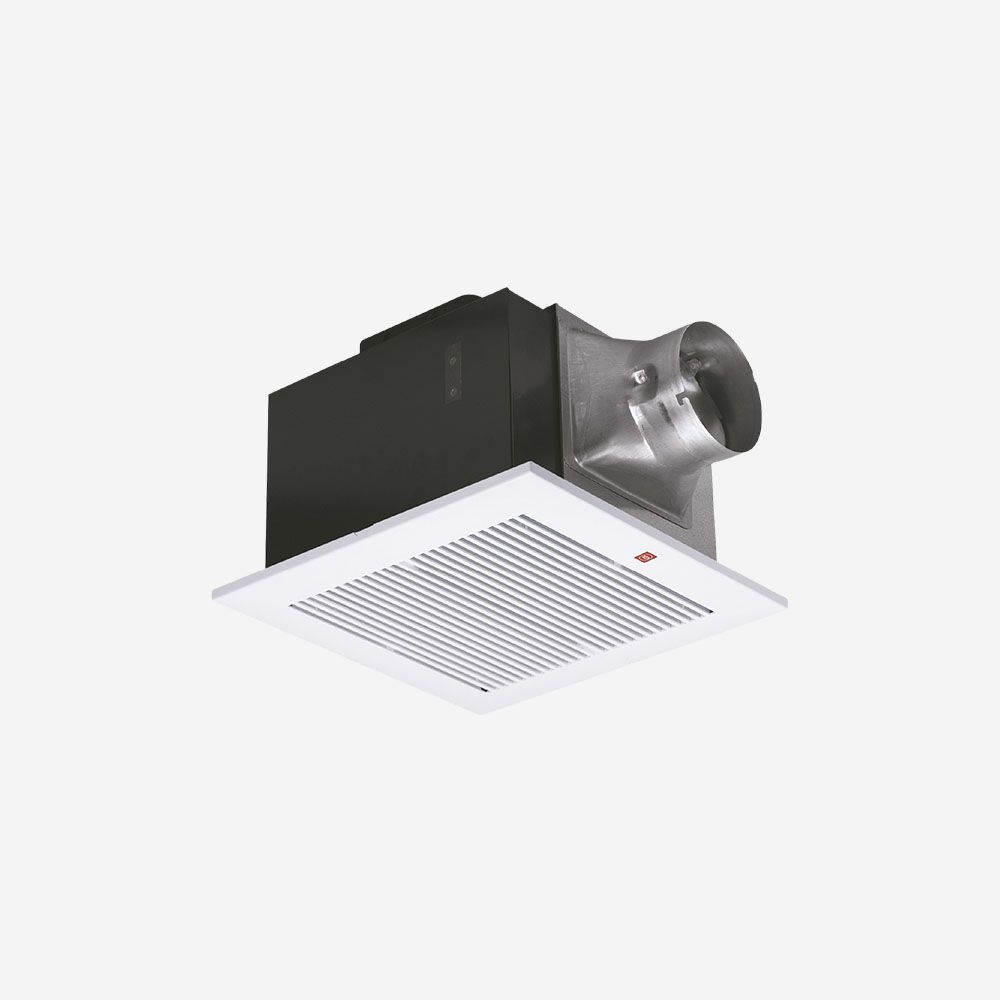

KDK 32CDH 32 cm (12.5″) Ceiling-Mounted Ventilating Fan
The KDK 32CDH is a robust ceiling-mounted ventilating fan engineered to offer reliable airflow and whisper-quiet performance—perfect for Singapore bathrooms, kitchens, and medium-sized utility spaces.
Key Features
- Effective and quiet ventilation – powerful airflow with minimal noise
- Strong condenser motor with ball bearings and thermal protection for long-lasting operation
- Backdraft shutter – prevents reverse airflow when the fan is off
- Durable steel cassette grille – easy-open louver for quick access and cleaning
- One-touch latch – facilitates fast maintenance
- Easy ceiling installation – compact cut-out size with Ø 150 mm duct compatibility
Product Specifications
| Duct Size | Ø 150 mm |
|---|---|
| Air Volume | ≈ 220 m³/h (≈ 130 CFM) |
| Power Consumption | ≈ 16 W |
| Noise Level | ≈ 30 dB(A) |
| Weight | ≈ 3.5 kg |
| Ceiling Cut‑out | ≈ 300 × 300 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Includes parts and labour via authorised service centres
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 32CDH?
With its powerful airflow, quiet motor, and easy maintenance features, the 32CDH is the perfect solution for ventilating medium-sized rooms. Its durable build and backdraft shutter ensure efficient and reliable performance in Singapore homes.
