Description
KDK 30RLA 30 cm (12″) Wall‑Mounted Reversible Ventilating Fan
Powerful and versatile, the KDK 30RLA provides efficient fresh airflow and extraction for bathrooms, kitchens, and utility rooms. With reversible airflow and a stylish slim louvre design, it blends reliability with modern convenience.
Key Features
- Reversible airflow – switch between exhaust and intake using the pull-cord
- Pull-cord operation – combined ON/OFF and airflow direction control
- Automatic shutter louvers – close when idle to block dust and backdraft
- High-performance 3D sickle blades – smooth, whisper-quiet airflow
- HP condenser motor with thermal fuse – built for safety and durability
- Well-lubricated bearings – ensure long-lasting performance
- Slim, premium louvre façade – minimalist profile for modern interiors

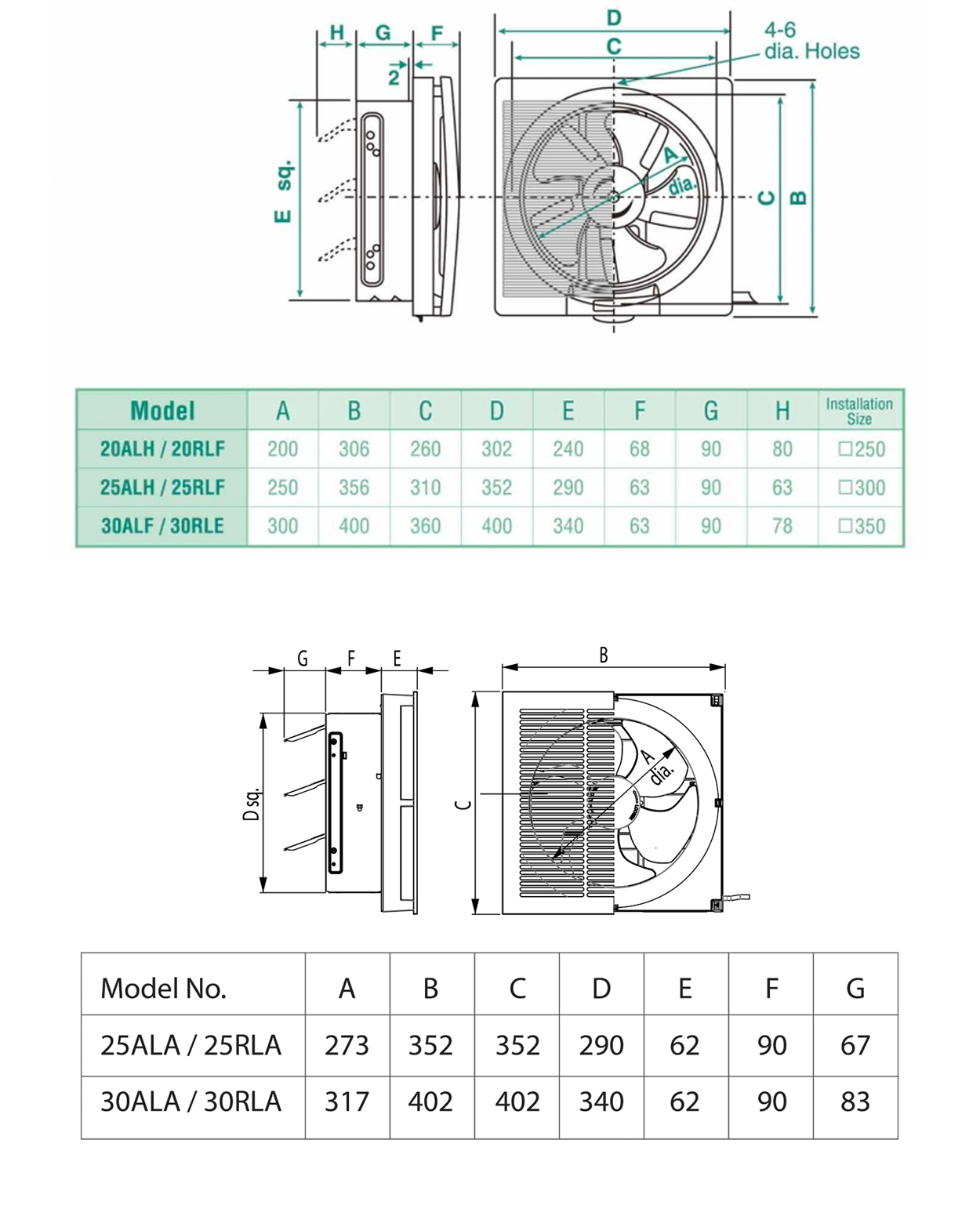

Product Specifications
| Blade Diameter | 30 cm (12″) |
|---|---|
| Power Consumption | ≈ 27.5 W (exhaust) · ≈ 18 W (intake) |
| Air Volume | ≈ 1,000 m³/h (588 CFM) exhaust · 750 m³/h (441 CFM) intake |
| Noise Level | ≈ 39 dB(A) exhaust · ≈ 42 dB(A) intake |
| Weight | ≈ 2.9 kg |
| Installation Cut‑out | 350 × 350 mm |
| Control Method | Pull‑cord on/off + reverse |
Warranty & Service (Singapore)
- 1‑year local warranty covering manufacturing defects through authorized distributor
- Includes parts and labour at authorized service centers
- Warranty valid from date of purchase — retain proof of purchase
Why Choose the 30RLA?
This top-of-the-line 30 cm fan offers excellent dual-direction airflow with quiet operation and modern shutter styling. Ideal for spaces needing flexible air movement and seamless design, the 30RLA provides long-term efficiency and comfort.
