Description

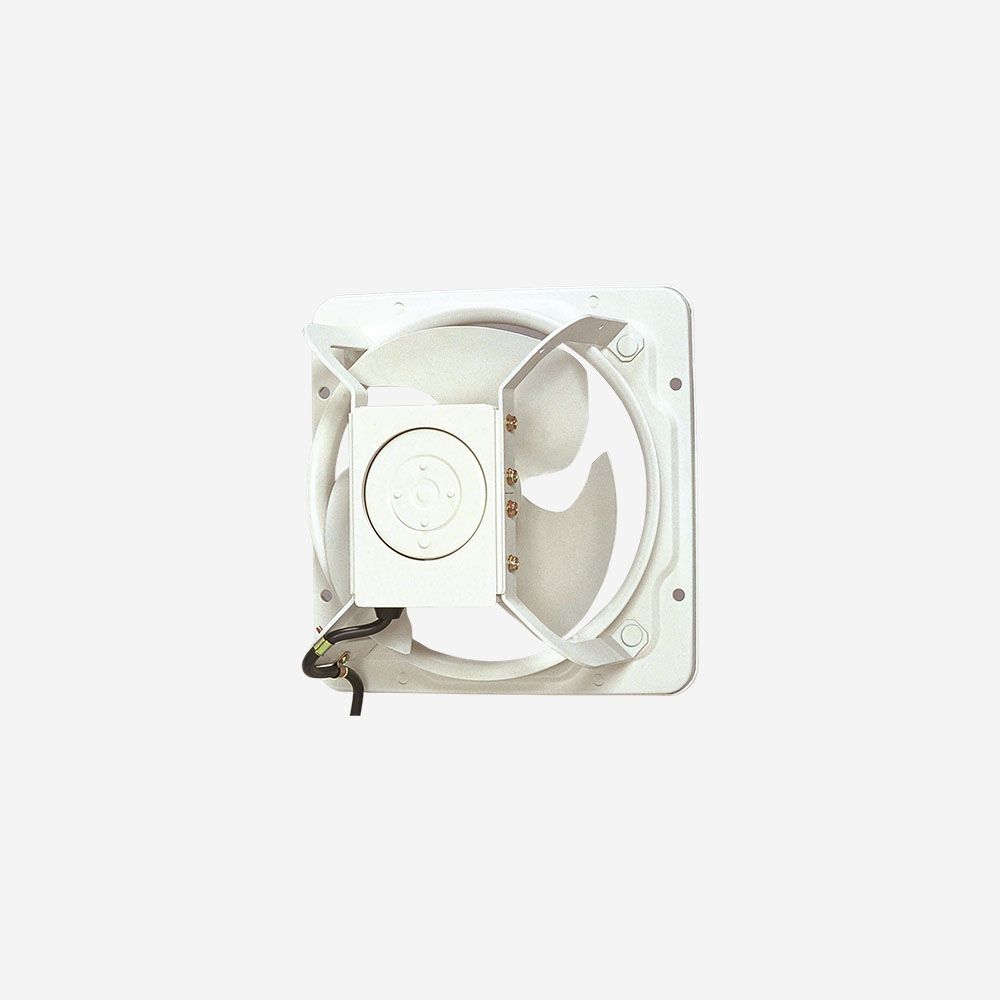

KDK 30GSC 30 cm (12″) Industrial High‑Pressure Ventilating Fan
Designed for heavy-duty spaces such as commercial kitchens, warehouses, and workshops, the KDK 30GSC delivers powerful, high-pressure airflow in a compact, robust build—perfect for demanding Singapore environments.
Key Features
- High-pressure wave-shape blade & bell-mouth design – smooth, turbulence-free airflow with enhanced static pressure
- Reversible airflow – user-selectable intake or exhaust functionality
- Fully enclosed 4-pole induction motor (59 W) with thermal fuse – built for safety and long-lasting durability
- Durable powder-coated steel body with drain mechanism to protect the motor from dust and moisture
- Wide temperature operating range – performs reliably from −10 °C to +50 °C
- Versatile installation – supports both horizontal and vertical mounting

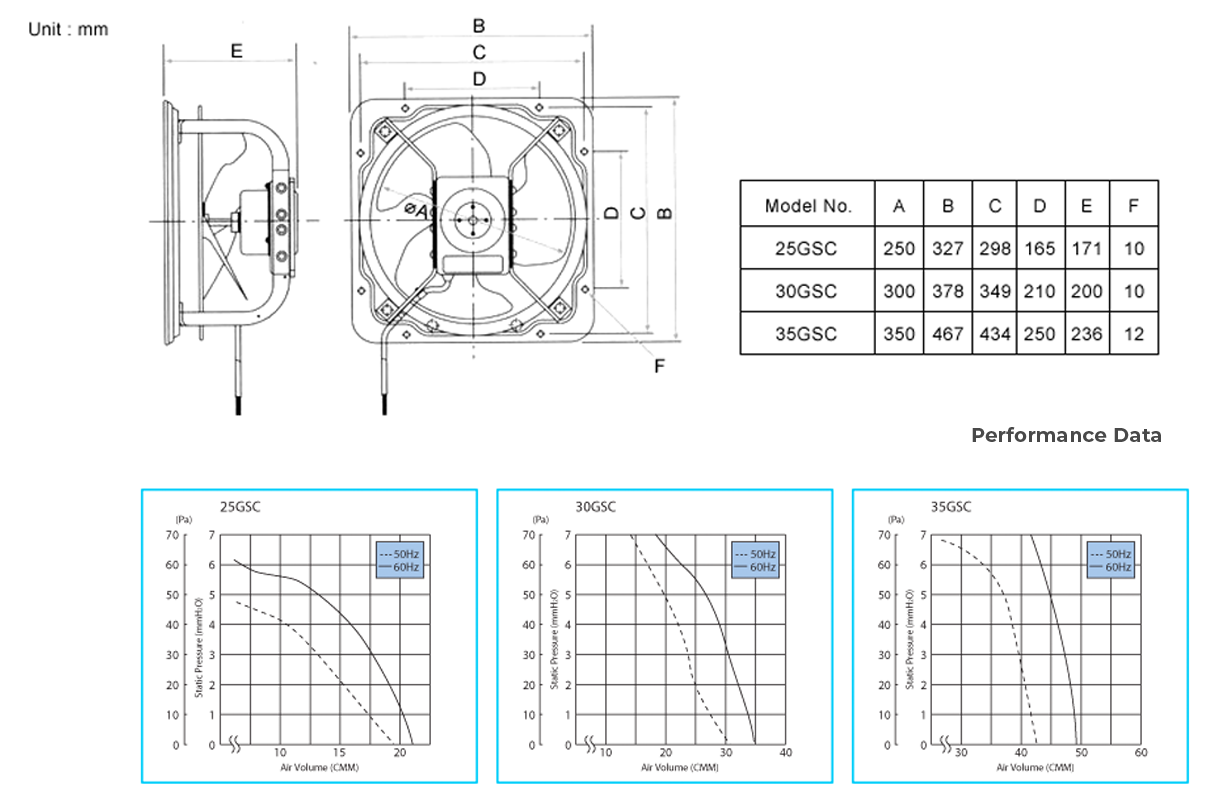

Product Specifications
| Blade Size | 30 cm (12″) |
|---|---|
| Power Consumption | 59 W |
| Speed | 1,360 RPM |
| Airflow | 1,820 m³/h (1,071 CFM) |
| Noise Level | 38 dB(A) |
| Weight | 6.1 kg |
| Operating Temperature | −10 °C to +50 °C |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and build defects via authorised distributor
- Includes parts and labour at approved service centres
- Warranty valid from purchase date — retain proof of purchase
Why Choose the 30GSC?
Compact yet powerful, the 30GSC offers industrial-grade airflow and premium features—wave-shape blade, enclosed motor, drain protection, and reversible operation. Built for tough conditions, it’s the go-to choice for efficient, reliable ventilation in commercial settings across Singapore.
