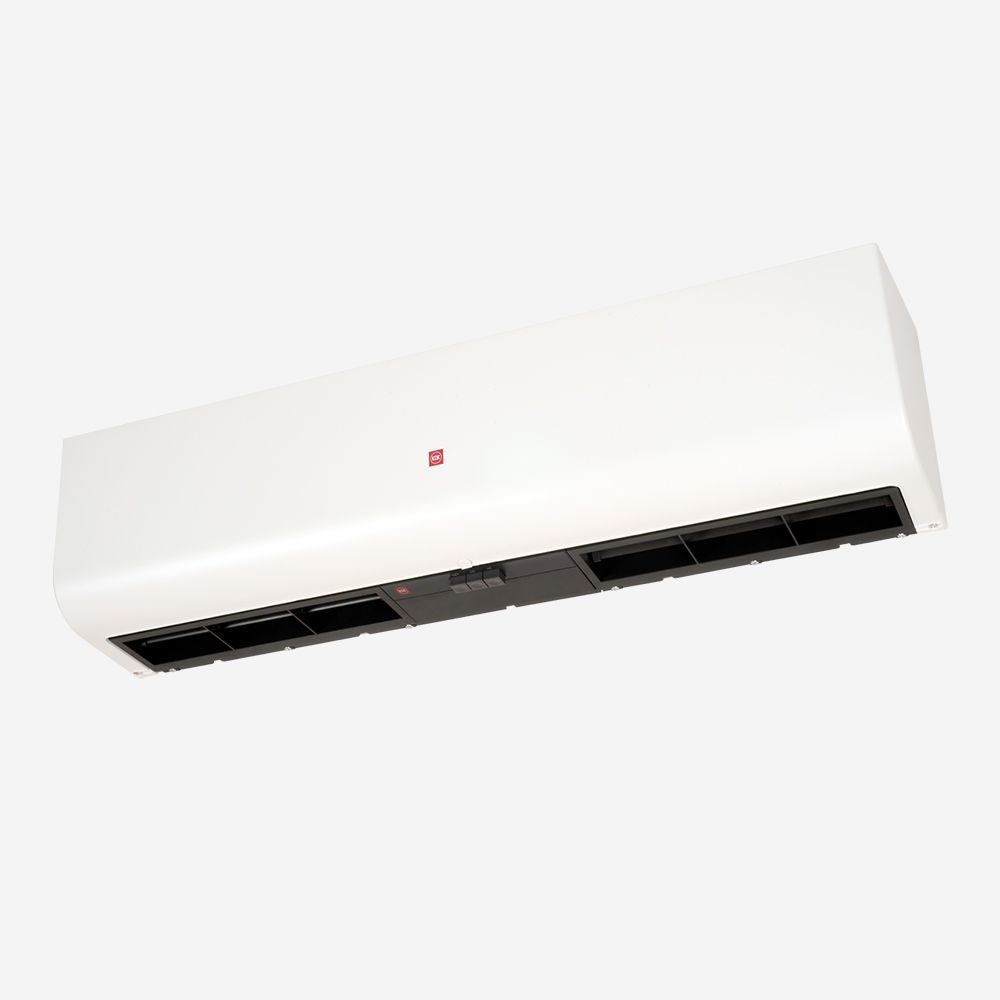

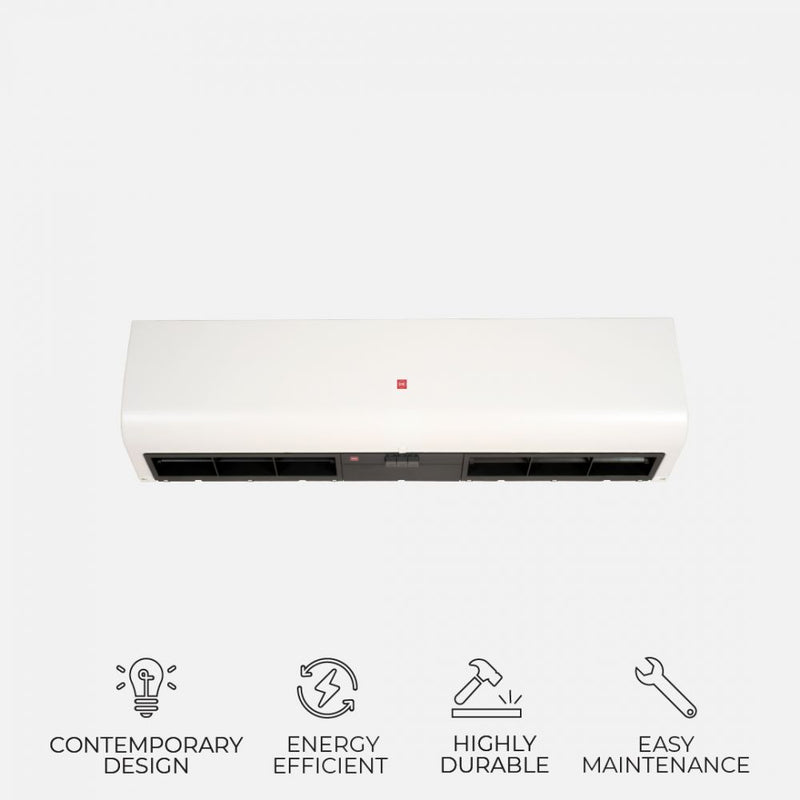

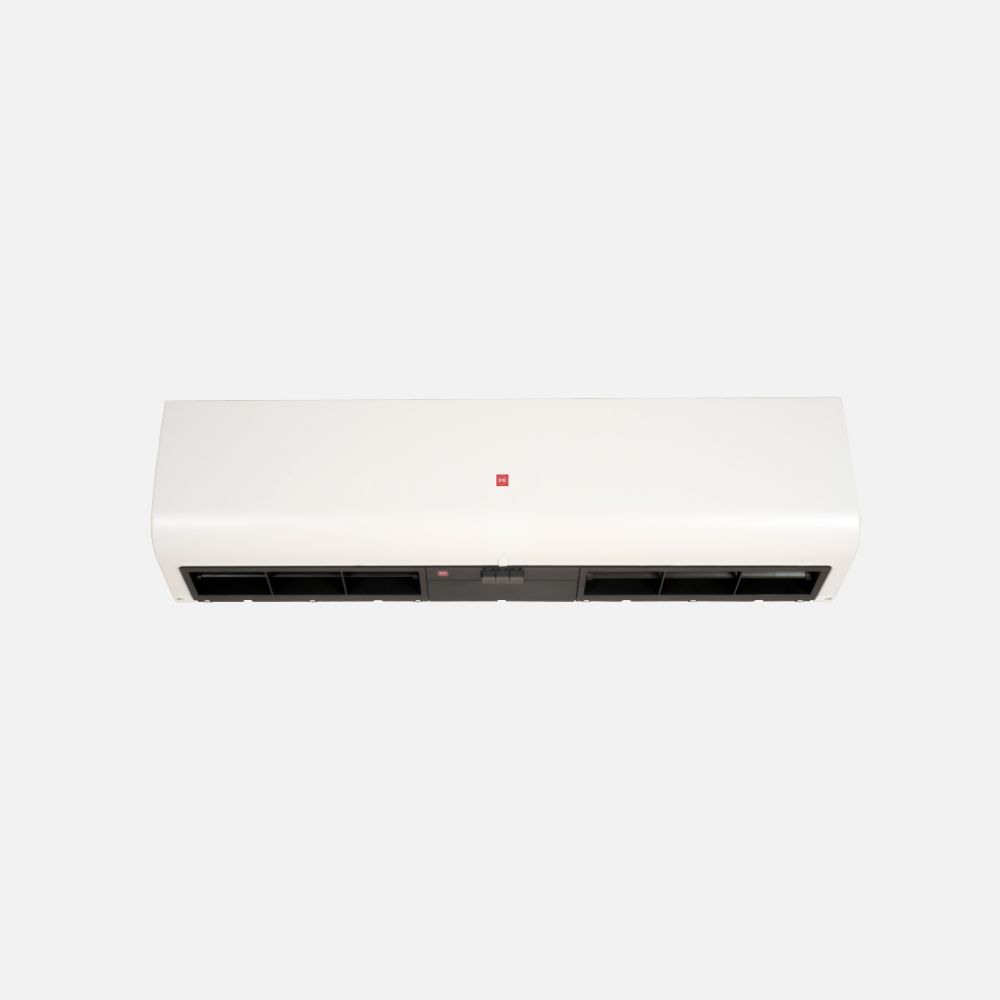

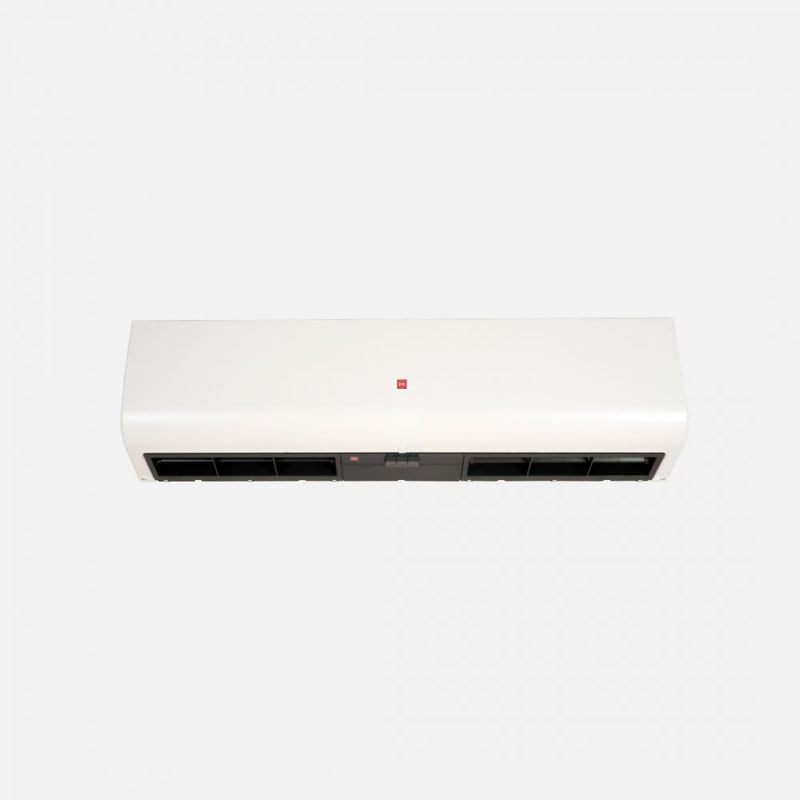

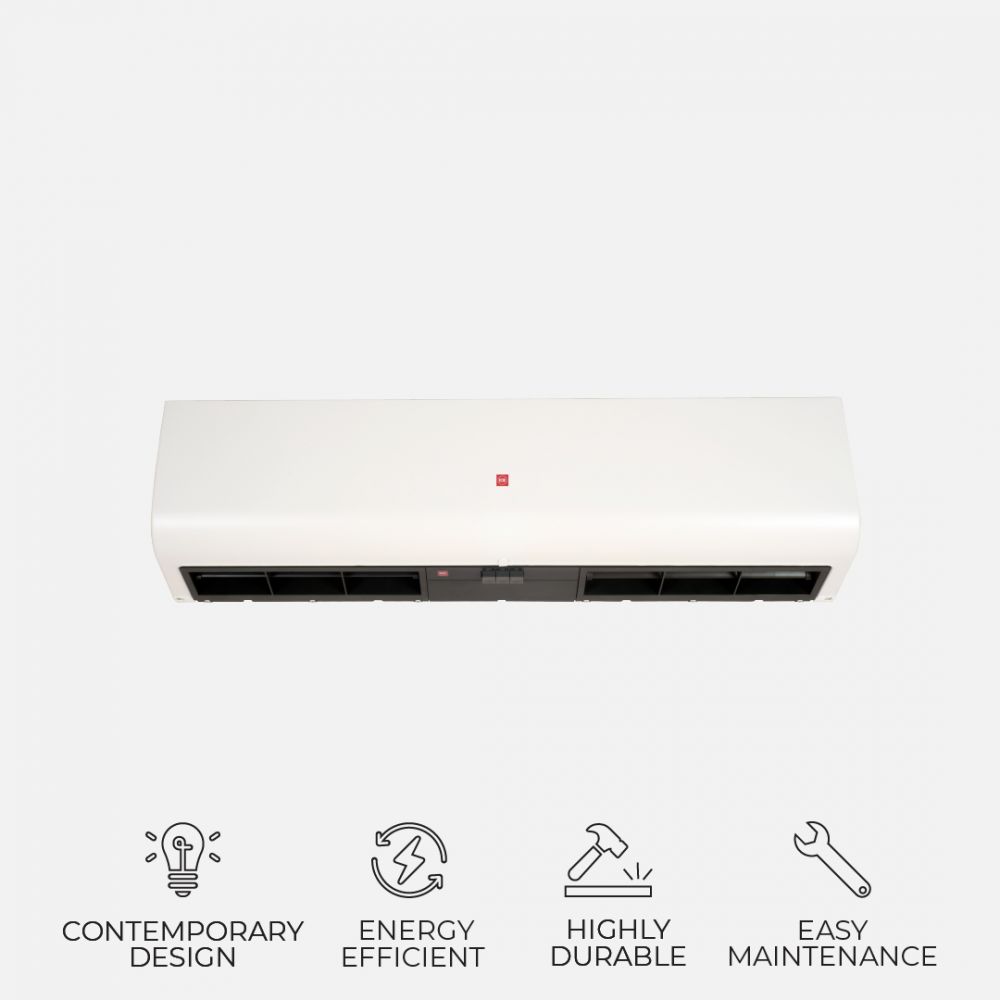

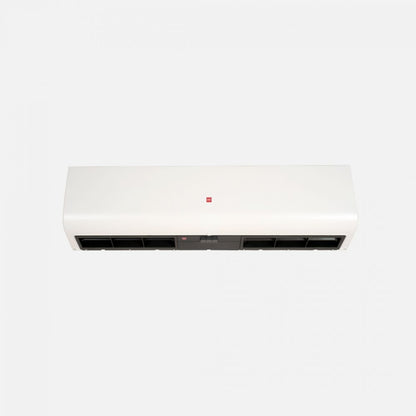

KDK 3009UA 900 mm (3 ft) Air Curtain
Keep your indoor environment comfortable and hygienic with the KDK 3009UA. Engineered for shopfronts, retail, F&B outlets, and commercial entrances, it delivers a powerful airflow barrier that seals out insects, dust, and air-conditioned air leakage.
Key Features
-
Sirocco fan technology – generates a consistent, wide airflow barrier
-
Dual-speed control – High and Low settings for adaptable operation
-
Adjustable air deflection louvers – fine-tune the airflow direction
-
Sleek ABS casing – modern look and easy to install on wall or ceiling
-
Quick-access service panel – simplifies maintenance and inspections

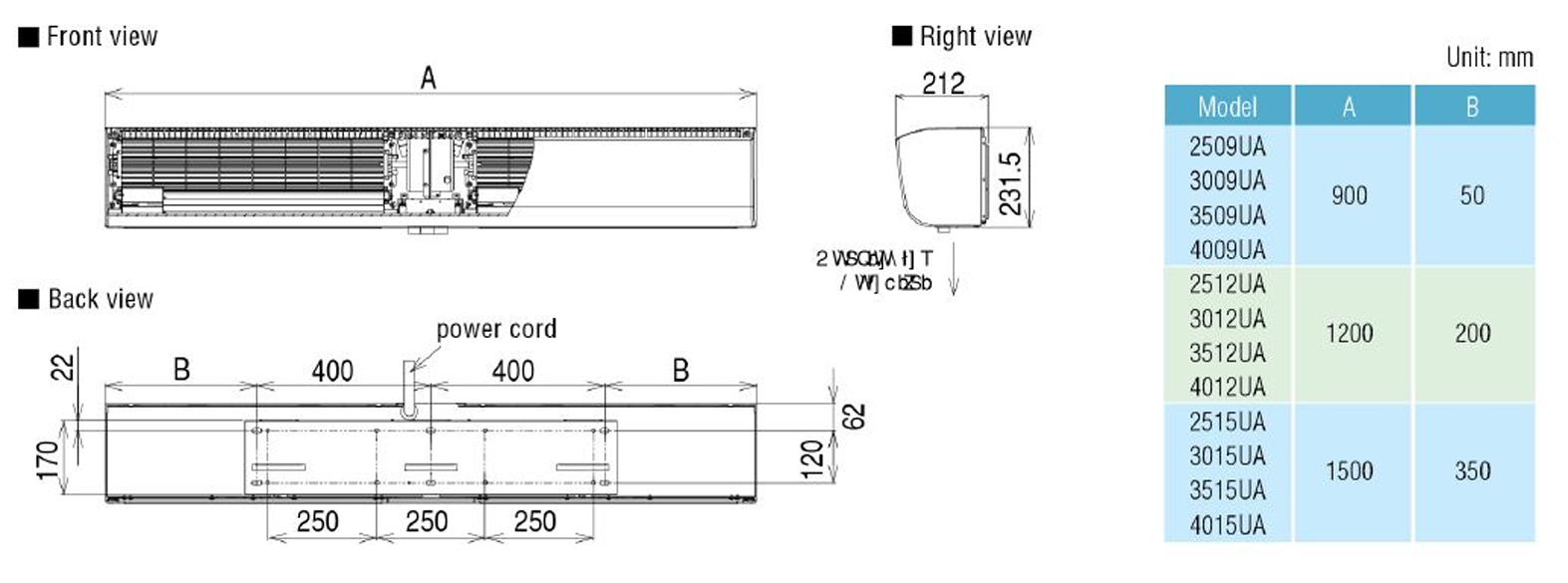

Product Specifications
Length |
900 mm (3 ft) |
Effective Coverage Height |
≈ 3 m (10 ft) |
Airflow |
High: 1,150 m³/h (677 CFM) Low: 960 m³/h (565 CFM) |
Power Consumption |
High: 86 W • Low: 80 W |
Current Draw |
High: 0.37 A • Low: 0.35 A |
Outlet Velocity |
High: 10.5 m/s • Low: 9.0 m/s |
Noise Level |
High: 50.5 dB(A) • Low: 47.5 dB(A) |
Weight |
≈ 12 kg |
Voltage / Frequency |
220–240 V • 50 Hz |
Warranty & Service (Singapore)
-
1‑year local warranty covering motor and manufacturing defects
- Parts and labour supported through authorised KDK service centres
- Please retain your proof of purchase to validate the warranty
Why Choose the 3009UA?
This compact 3‑ft unit offers a high-velocity airflow shield that effectively protects your indoor space from dust, insects, and energy loss. With user-adjustable airflow, durable build, and easy installation, it’s a smart and reliable choice for Singapore commercial spaces.
