Description

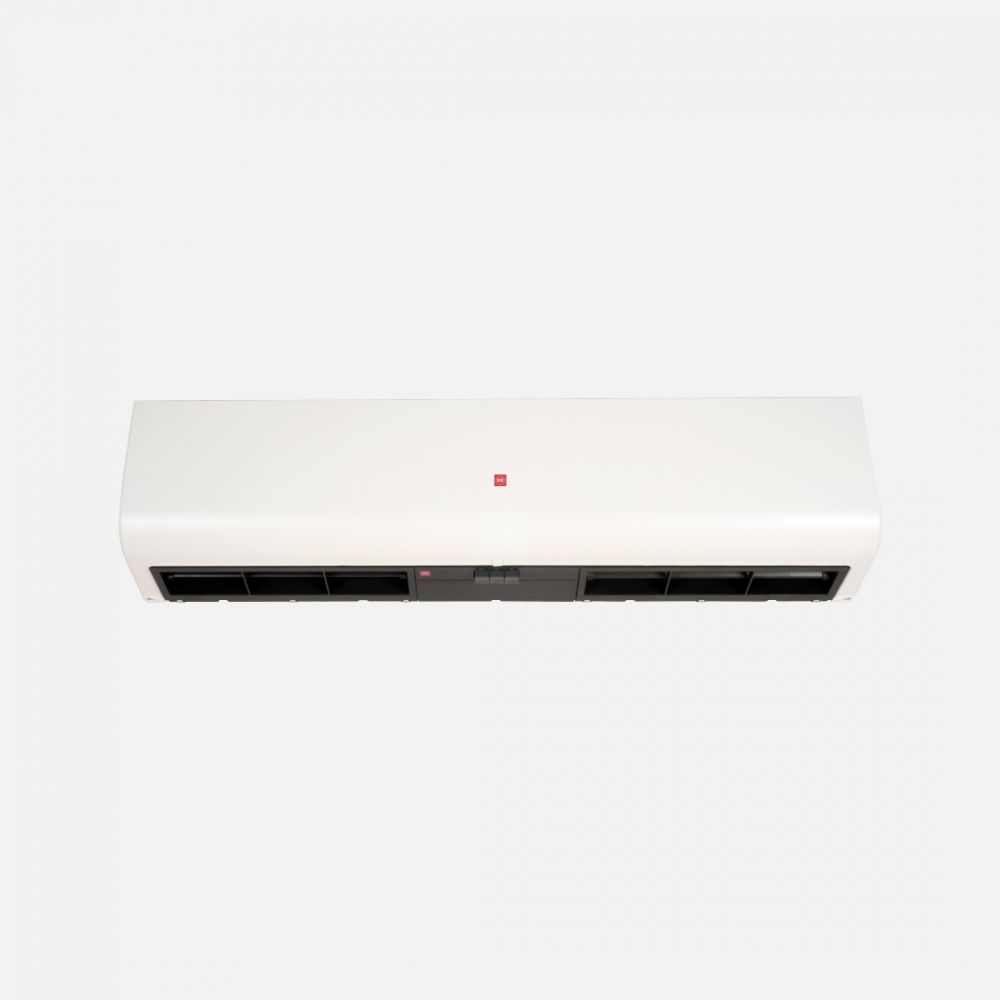

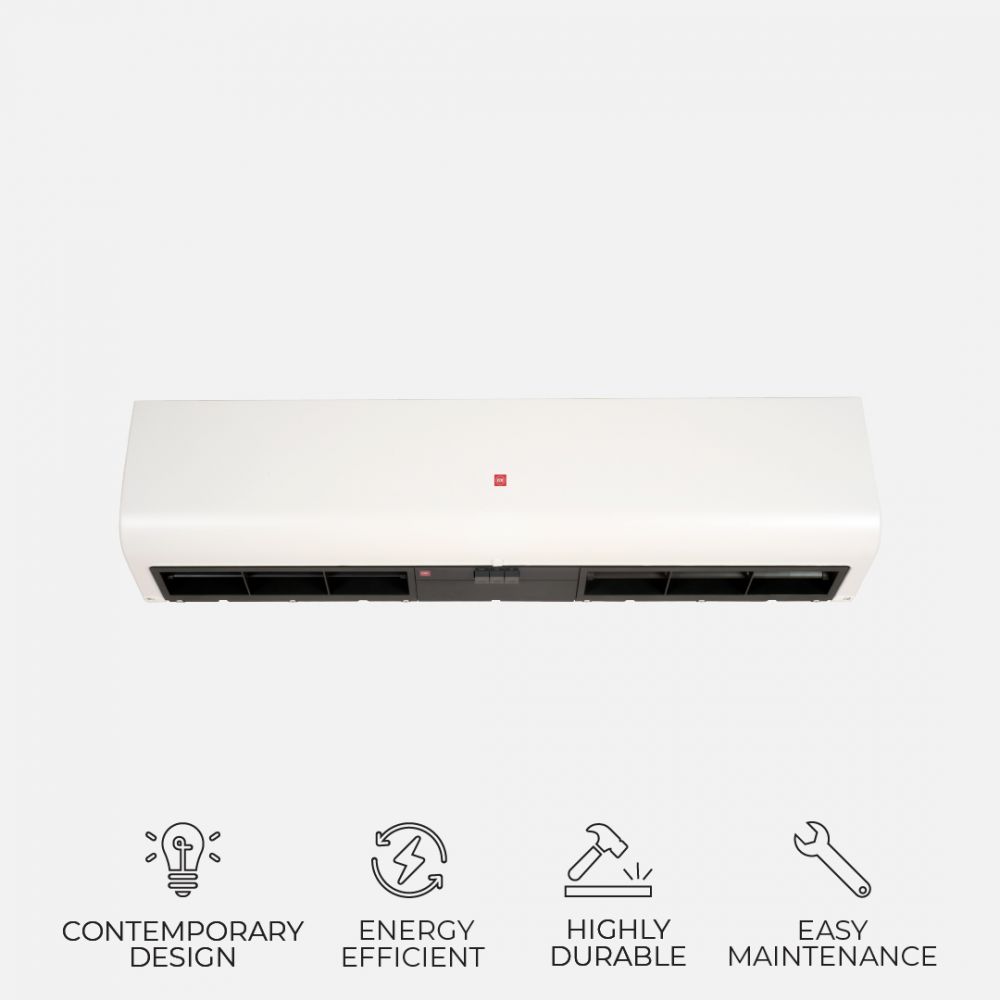

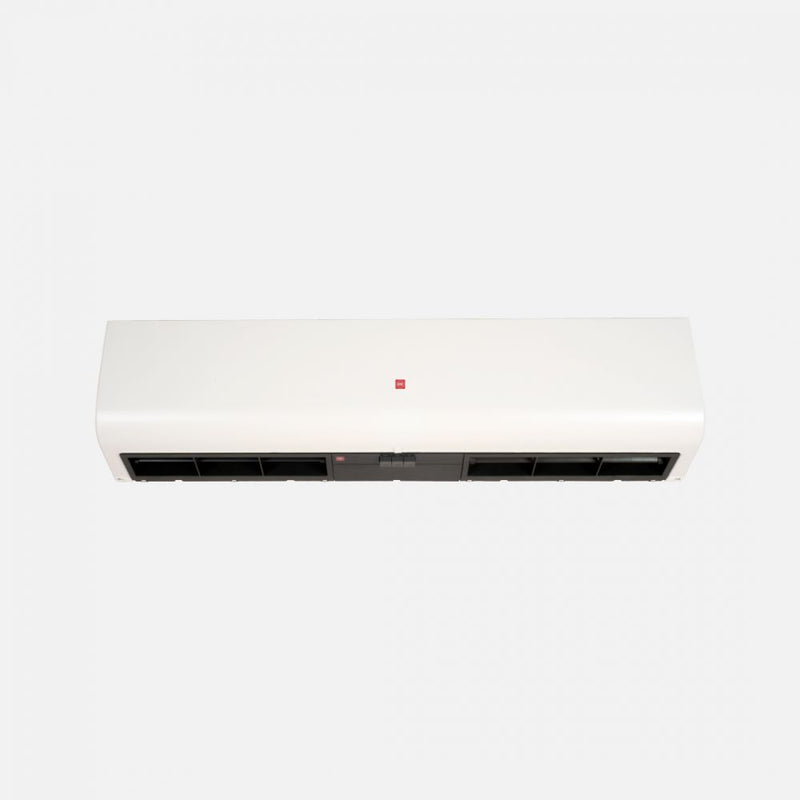

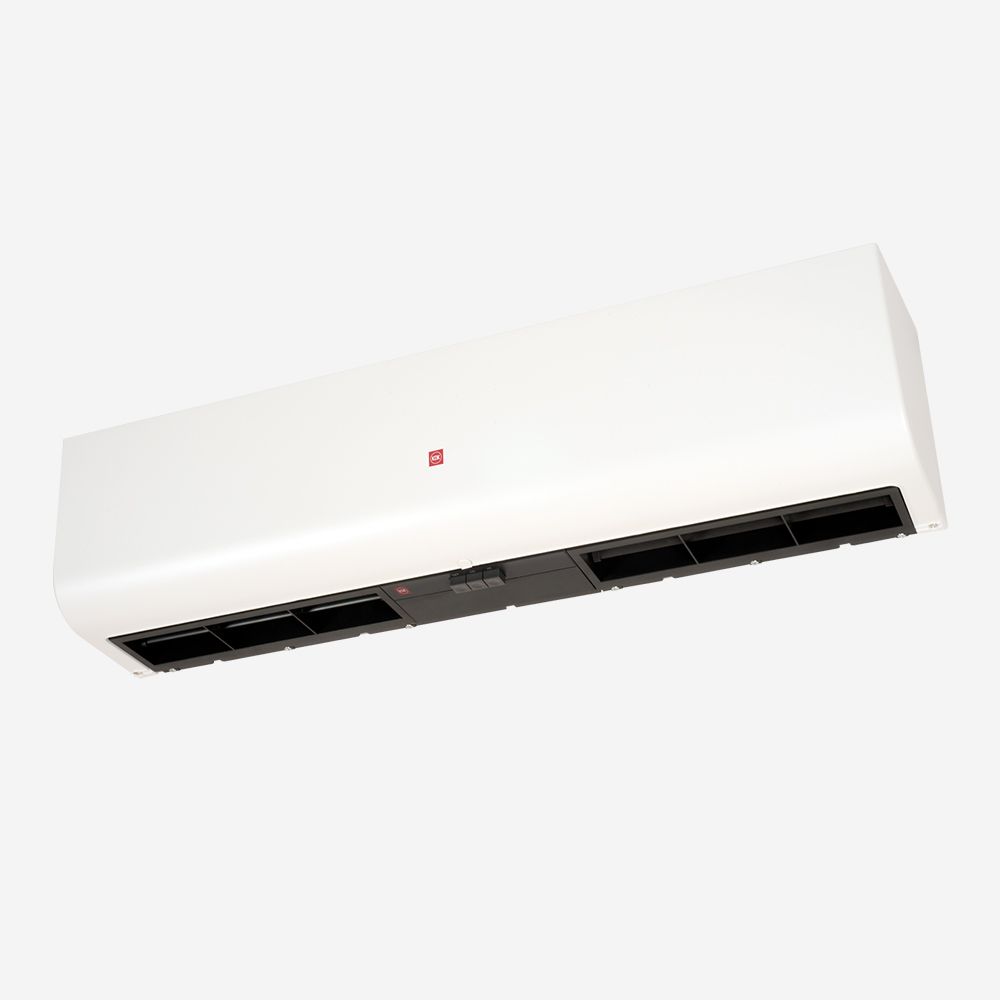

KDK 2512UA 1,200 mm (4 ft) Air Curtain
Maintain indoor comfort and hygiene with the KDK 2512UA, a sleek air curtain designed to effectively block dust, insects, and air-conditioned air loss at commercial and retail entrances.
Key Features
- Unique sirocco fan design – creates a powerful, consistent airflow "barrier" across openings up to 2.5 m high
- Dual-speed control – choose between high and low airflow for efficient operation
- Air deflection vents – adjustable louvers fine-tune airflow direction
- Simple installation – mount on walls or ceilings with easy access panels
- Quick inspection – maintenance-friendly design for swift cleaning

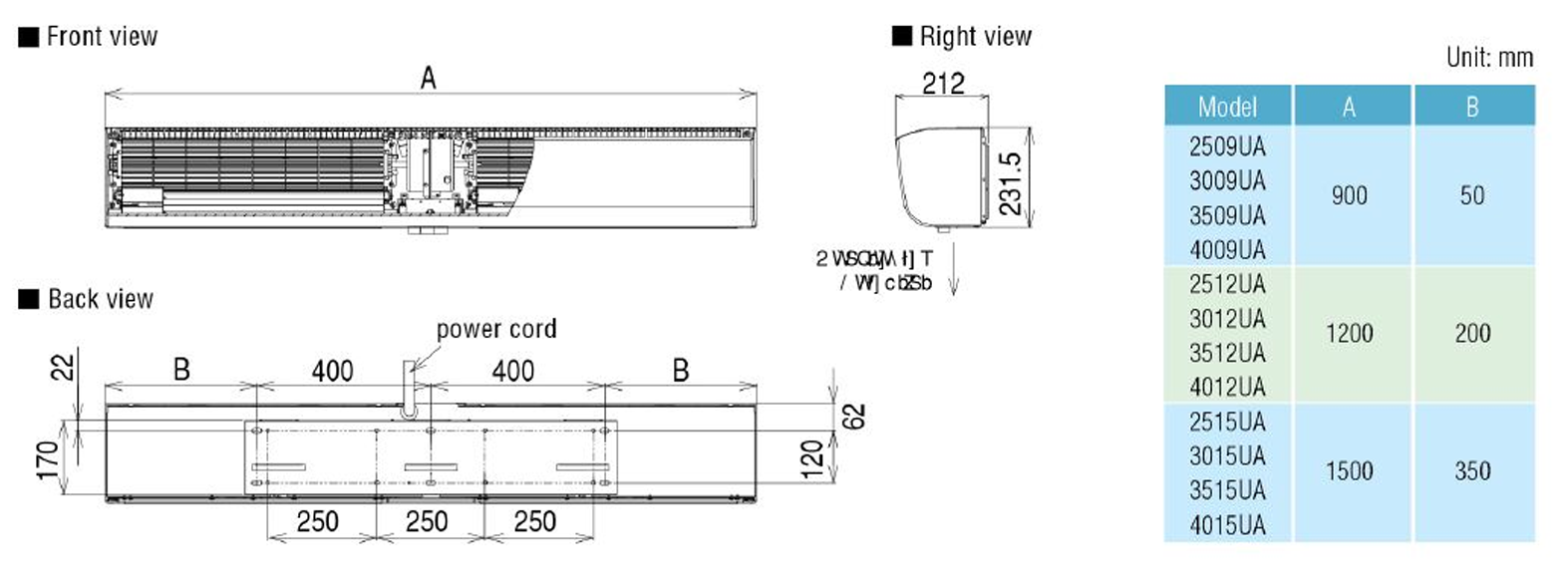

Product Specifications
| Length | 1,200 mm (4 ft) |
|---|---|
| Effective Coverage | ≈ 2.5 m height |
| Air Volume | Hi: 1,350 m³/h (795 CFM) • Lo: 1,250 m³/h (736 CFM) |
| Power Consumption | Hi: 89 W • Lo: 86 W |
| Current Draw | Hi: 0.37 A • Lo: 0.36 A |
| Outlet Speed | Hi: 9.0 m/s • Lo: 8.0 m/s |
| Noise Level | Hi: 46 dB(A) • Lo: 44 dB(A) |
| Weight | ≈ 14 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Full parts and labour support via authorized KDK service centers
- Warranty active from purchase date—retain proof of purchase
Why Choose the 2512UA?
Perfect for shop fronts, restaurant entrances, and commercial facilities, the 2512UA combines powerful airflow with adjustable settings and sleek design. Its energy-efficient motor and airflow tuning options offer effective, low-noise protection and maintain indoor comfort in Singapore’s climate.
