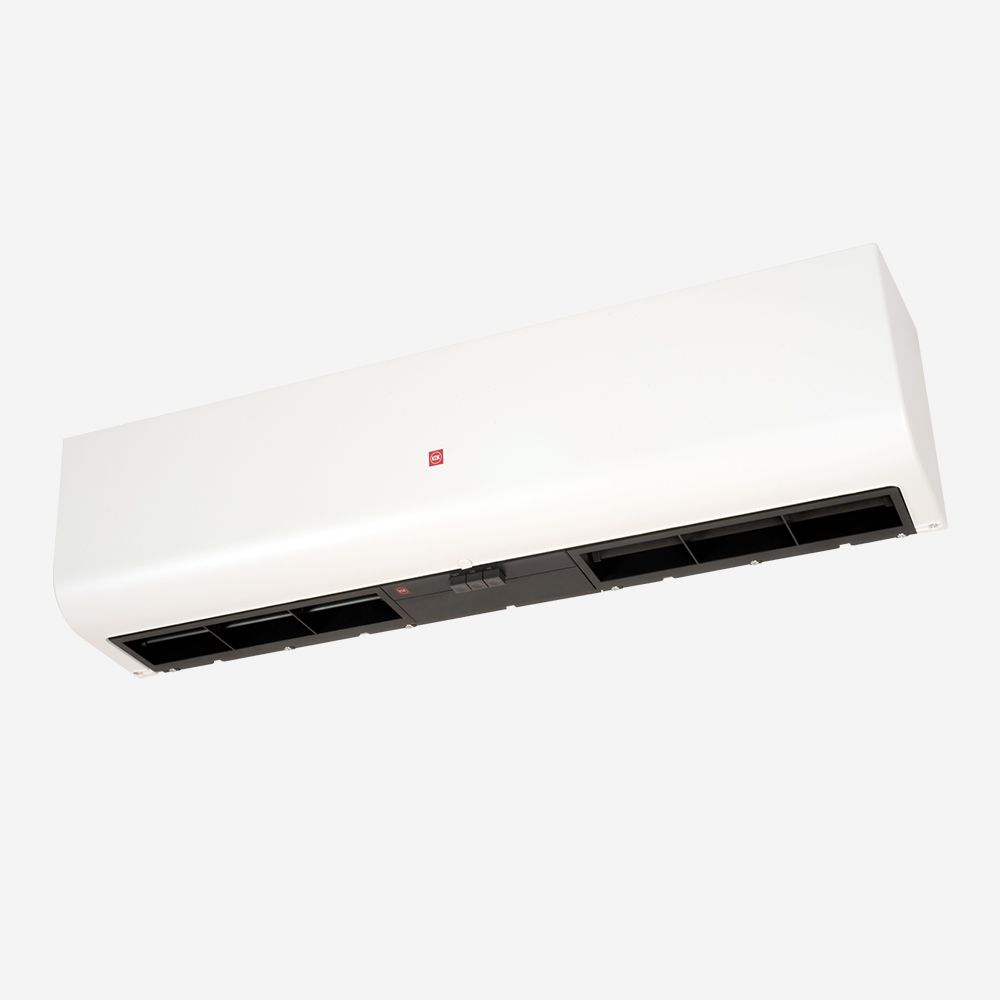

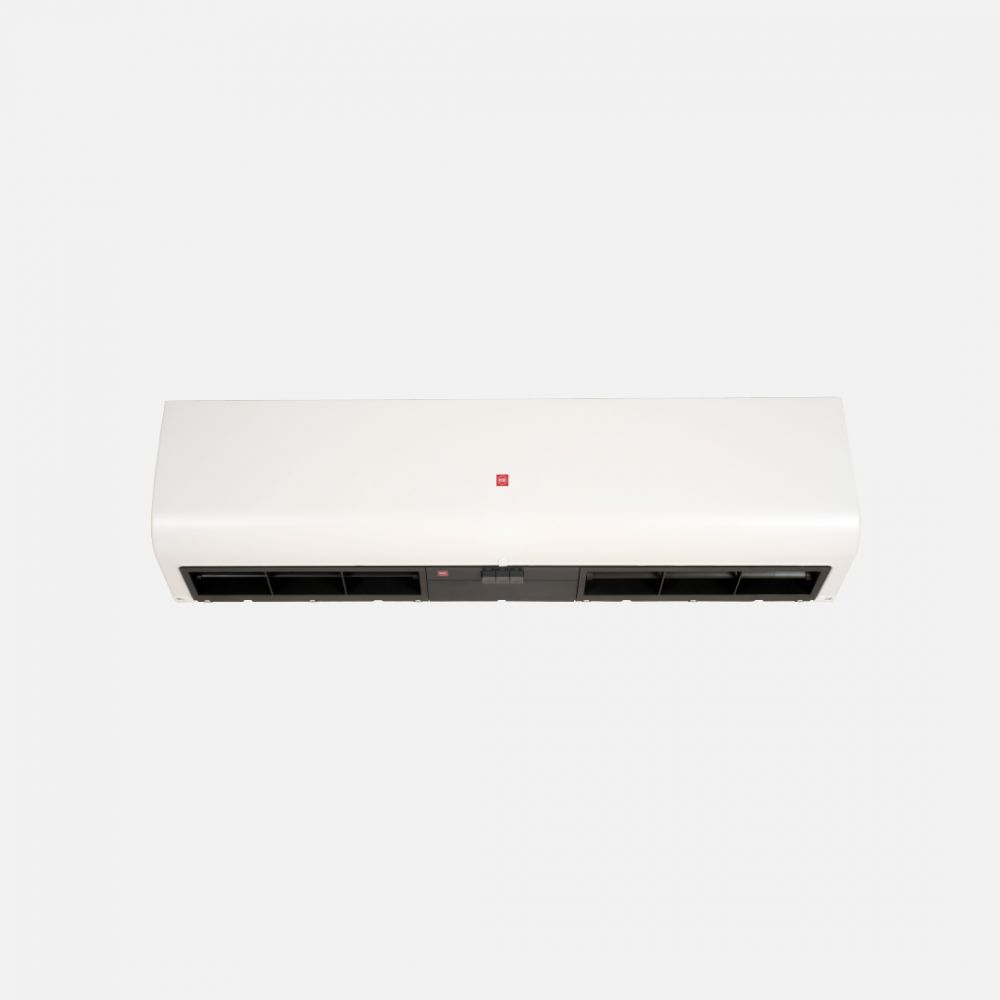

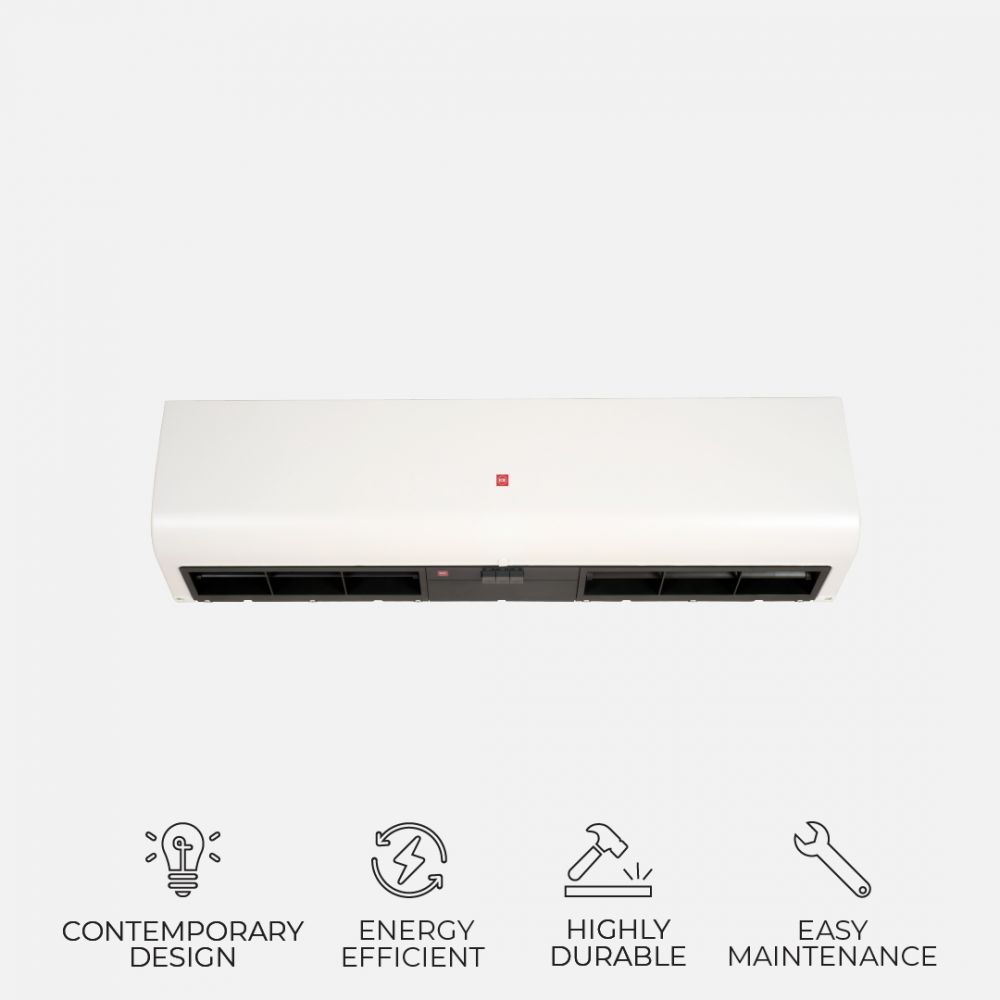

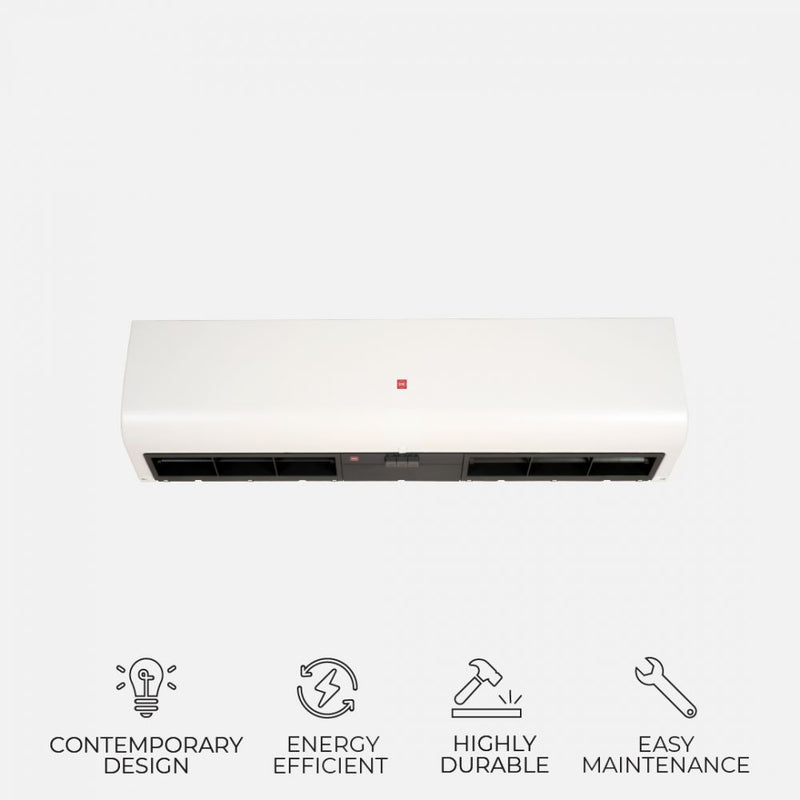

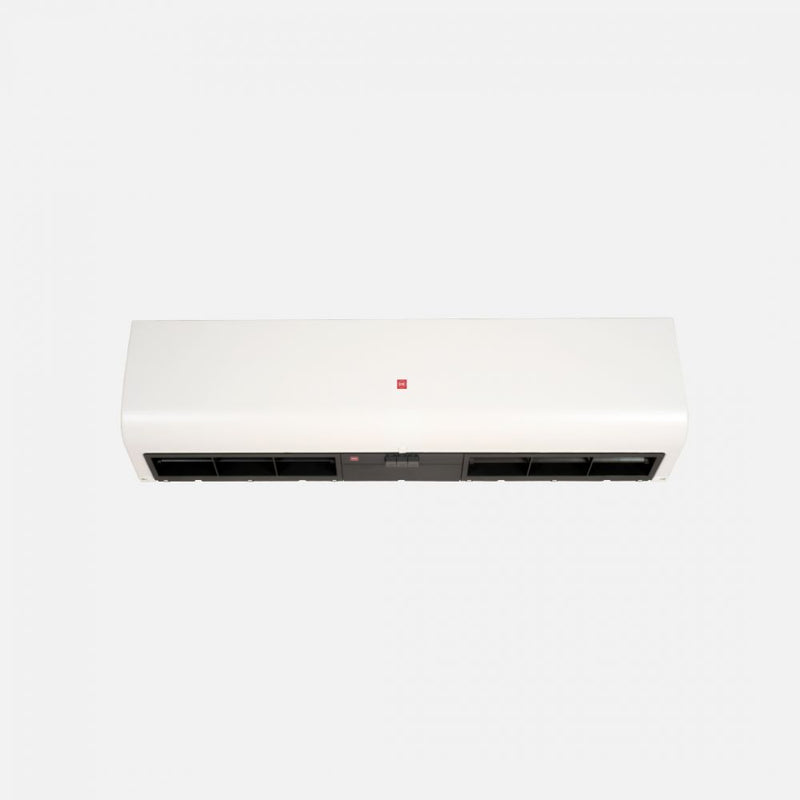

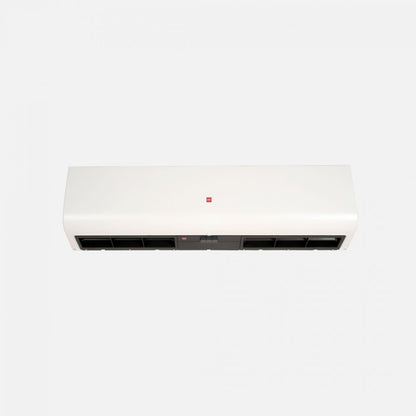

KDK 2509UA 900 mm (3 ft) Air Curtain
Maintain a clean and comfortable indoor environment with the KDK 2509UA Air Curtain. Using a unique sirocco fan, it creates a powerful air barrier up to 2.5 m, ideal for entrances in retail, F&B, or commercial spaces.
Key Features
- Sirocco fan design – generates a strong, even airflow curtain
- Dual-speed operation – Hi/Lo airflow to suit different entry volumes
- Air deflection vents – adjustable direction for optimal coverage
- Simple wall or ceiling installation – quick access for inspection
- Resilient ABS casing – durable for indoor commercial use
Product Specifications
| Length | 900 mm |
|---|---|
| Effective Curtain Height | ≈ 2.5 m |
| Air Volume | Hi 1,000 m³/h (589 CFM) • Lo 900 m³/h (530 CFM) |
| Power Consumption | Hi 71 W • Lo 65 W |
| Current | Hi 0.31 A • Lo 0.29 A |
| Outlet Velocity | Hi 9.0 m/s • Lo 8.0 m/s |
| Noise Level | Hi 46 dB(A) • Lo 43.5 dB(A) |
| Weight | ≈ 12 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Includes parts and labour through authorised KDK service centres
- Warranty effective from purchase date—retain proof of purchase
Why Choose the 2509UA?
Designed for commercial entrances, the 2509UA provides effective insect and dust control while conserving air‑conditioned spaces. With dual‑speed control, adjustable airflow, and easy maintenance, it offers a smart, reliable barrier for facilities in Singapore.
