Description

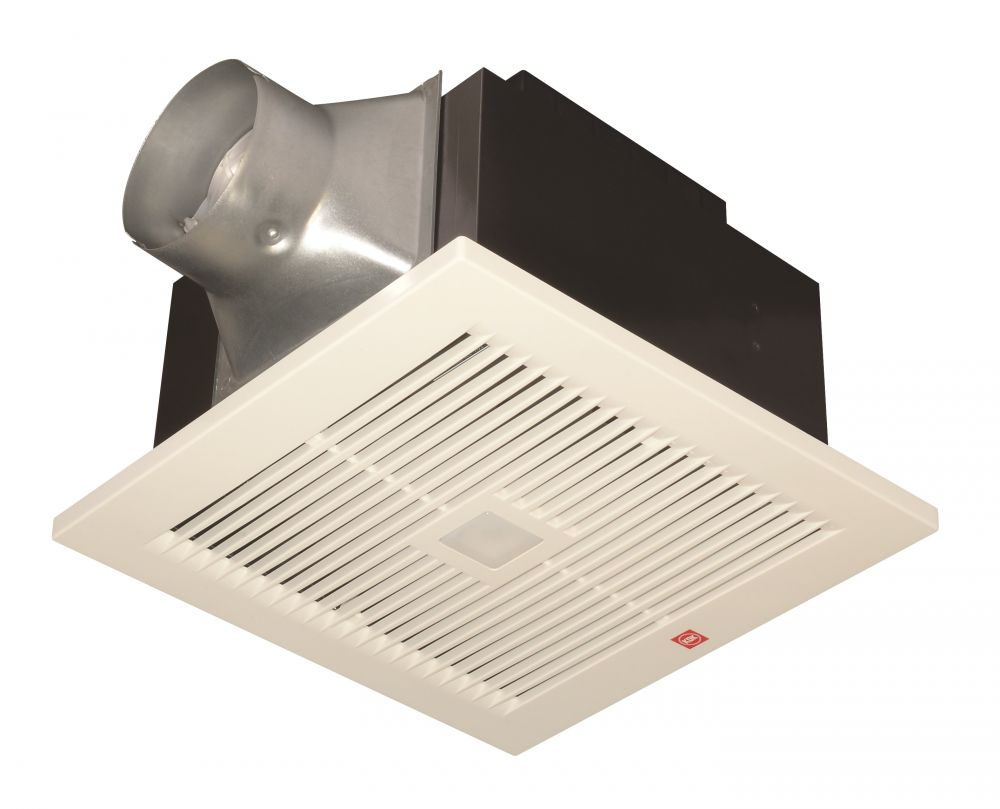

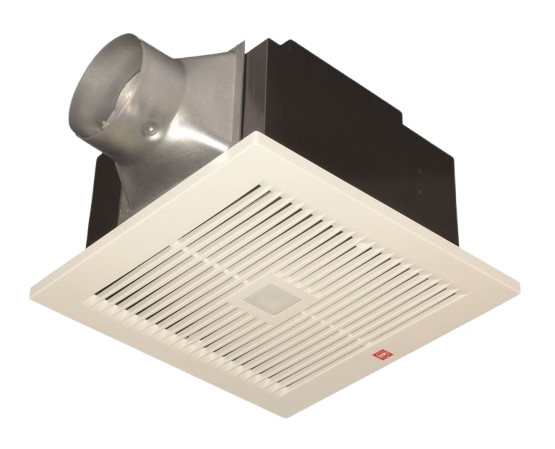

KDK 24JRB 24 cm (9.5″) Ceiling-Mounted DC Ventilating Fan with Motion Sensor
Upgrade your home ventilation with the KDK 24JRB—a smart, energy-efficient ceiling fan featuring a DC motor and motion sensor. Enjoy consistent airflow, low noise, and customizable settings for a comfortably fresh environment in Singapore residences.
Key Features
- Green DC motor – up to 29% more energy-efficient than traditional motors
- Motion sensor & auto operation – fan activates at full speed when movement is detected, then switches to low speed or stops after 15 min delay
- Variable airflow – five-speed control delivers constant airflow (80 / 120 / 160 m³/h), unaffected by duct length
- Whisper-quiet performance – resonance-absorption structure keeps noise low at just 31 dB(A)
- High-efficiency sirocco blade – tapered design ensures smooth, turbulence-free airflow
- Pre-installed power cord – hassle-free installation into a 240 × 240 mm ceiling cut-out with Ø 100 mm ducting
Product Specifications
| Blade / Duct Size | 24 cm / Ø 100 mm |
|---|---|
| Airflow (Max) | 160 m³/h (94 CFM) |
| Power Consumption | 8 W |
| Speed | ≈ 742–794 RPM (Hi/Lo settings) |
| Noise Level | 31 dB(A) |
| Weight | ≈ 2.9 kg |
| Ceiling Cut-out | 240 × 240 mm |
| Voltage / Frequency | 220–240 V / 50–60 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Inclusive of parts and labour at authorized service centers
- Warranty effective from date of purchase—keep your proof of purchase
Why Choose the 24JRB?
Perfect for bathrooms, utility rooms, or any area requiring reliable ventilation, the 24JRB combines smart automation, energy efficiency, and ultra-quiet operation into a sleek ceiling unit. Enjoy a fresher home with intelligent control and minimal energy consumption.
