Description

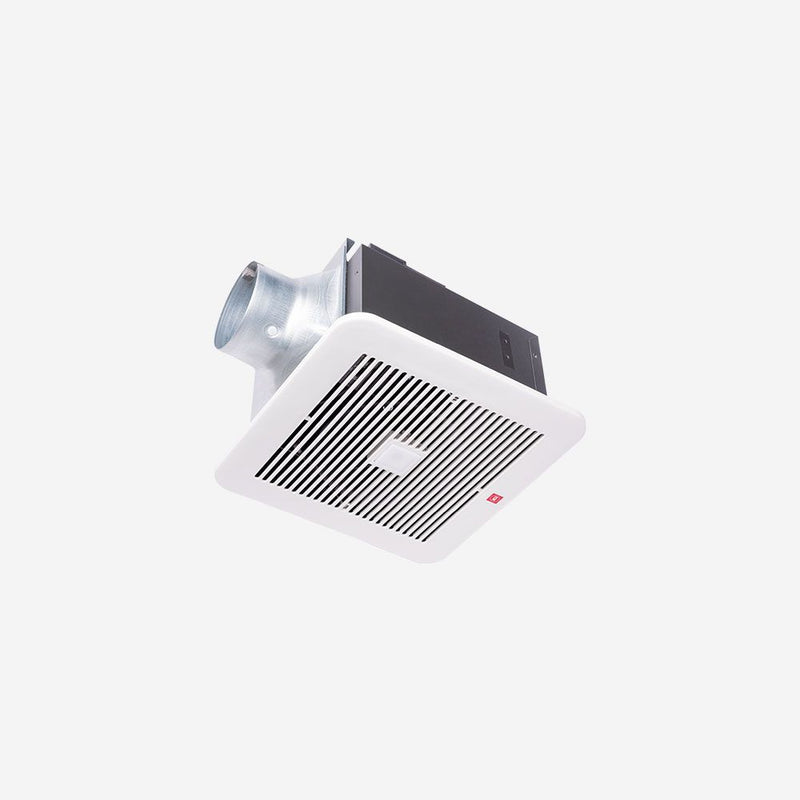

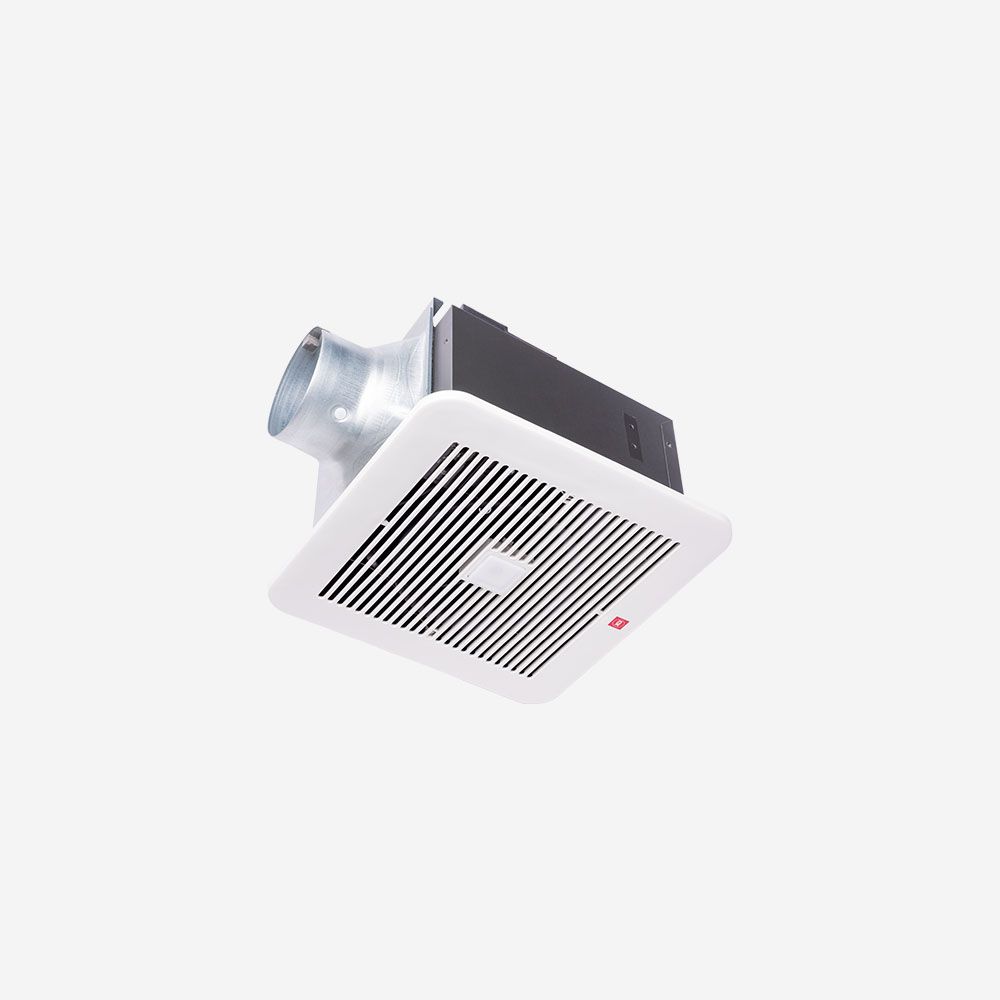

KDK 24CURB 24 cm (9.5″) Ceiling-Mounted Ventilating Fan with Motion Sensor
Engineered for modern Singapore homes, the KDK 24CURB provides smart, efficient ceiling ventilation with hands-free control and whisper-quiet operation.
Key Features
- Motion sensor & auto operation – activates on movement, then shuts off or switches to low speed after ~15 minutes
- HP motor with ball bearings – half-pitch design extends motor life and ensures smooth running
- Tapered sirocco blade – boosts airflow while maintaining low noise
- Curve-shaped backdraft shutter – prevents reverse airflow when not in use
- Resonance-noise-absorption casing – minimizes operational sound to ~25 dB(A)
- Pre-installed power cord & Class B insulation – ready for quick ceiling installation
Product Specifications
| Blade/Duct Size | 24 cm / Ø 100 mm |
|---|---|
| Air Volume | ≈ 140 m³/h |
| Power Consumption | ≈ 11 W |
| Noise Level | ≈ 25 dB(A) |
| Weight | ≈ 2.8 kg |

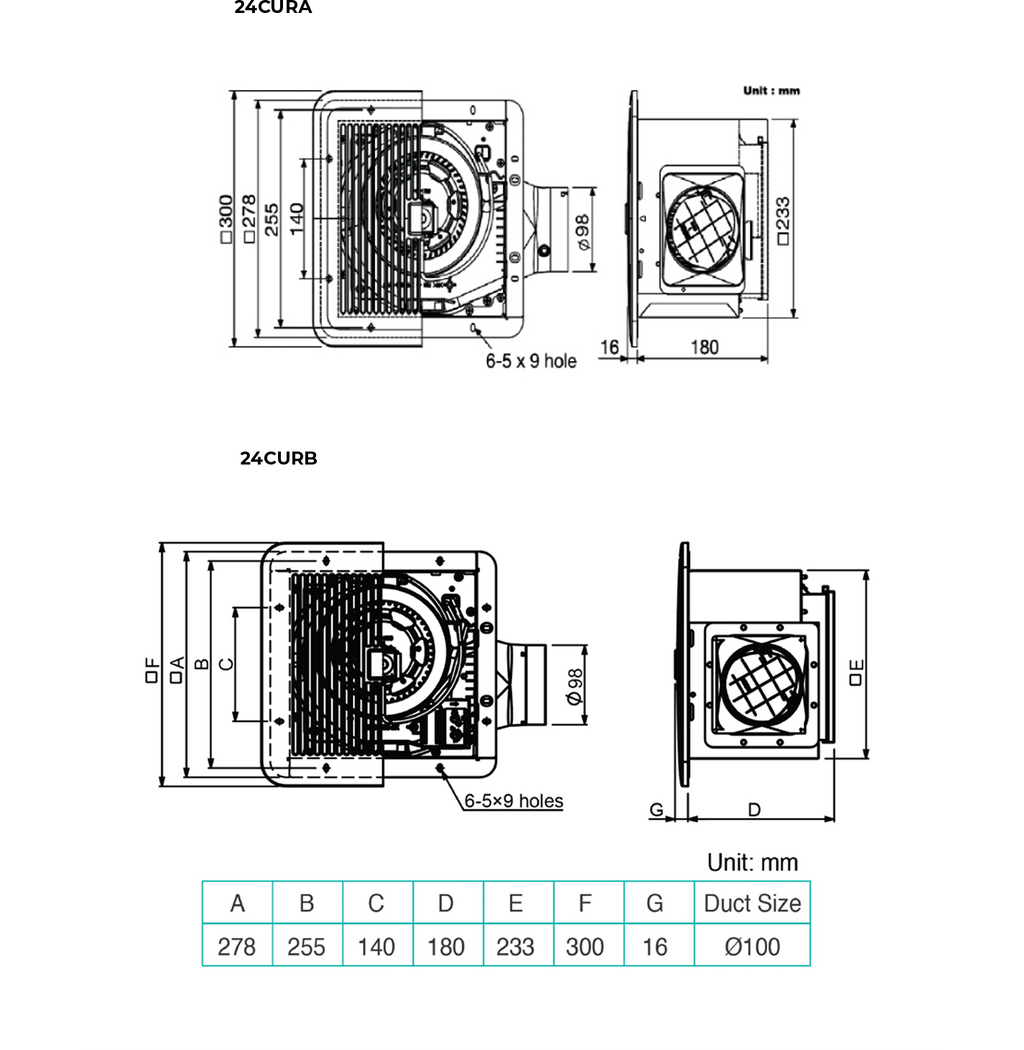

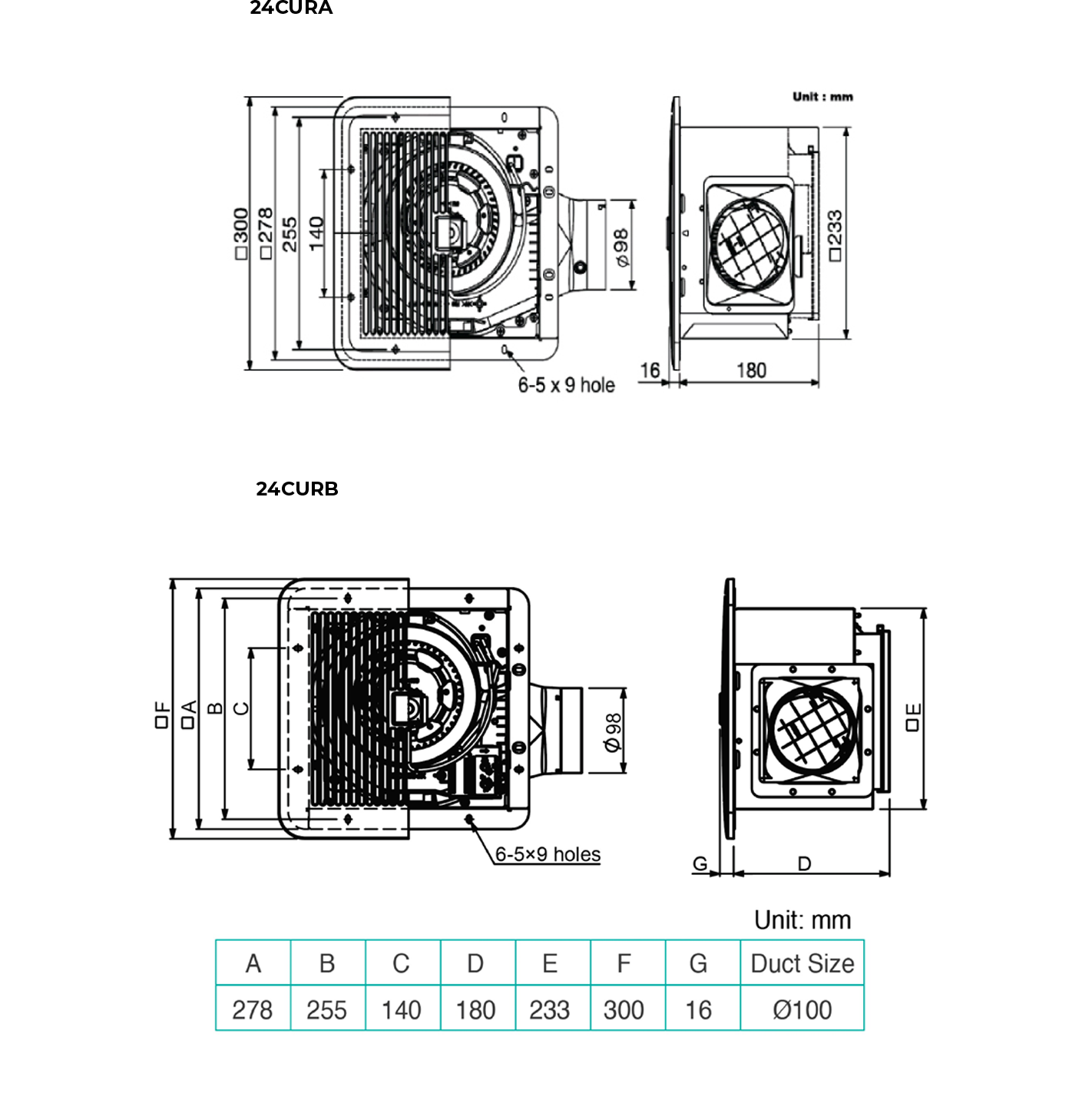

| Ceiling Dimensions | 300 × 300 × 180 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and build defects via authorised distributor
- Parts and labour included at authorised service centres
- Warranty begins from purchase date — retain proof of purchase
Why Choose the 24CURB?
This ceiling-mounted fan brings smart automation and energy-saving performance (11 W) to your home. With motion detection, timer control, ultra-low noise, and backdraft protection, it ensures fresh, comfortable air in bathrooms, kitchen areas, or utility spaces—without disturbing your family’s peace.
