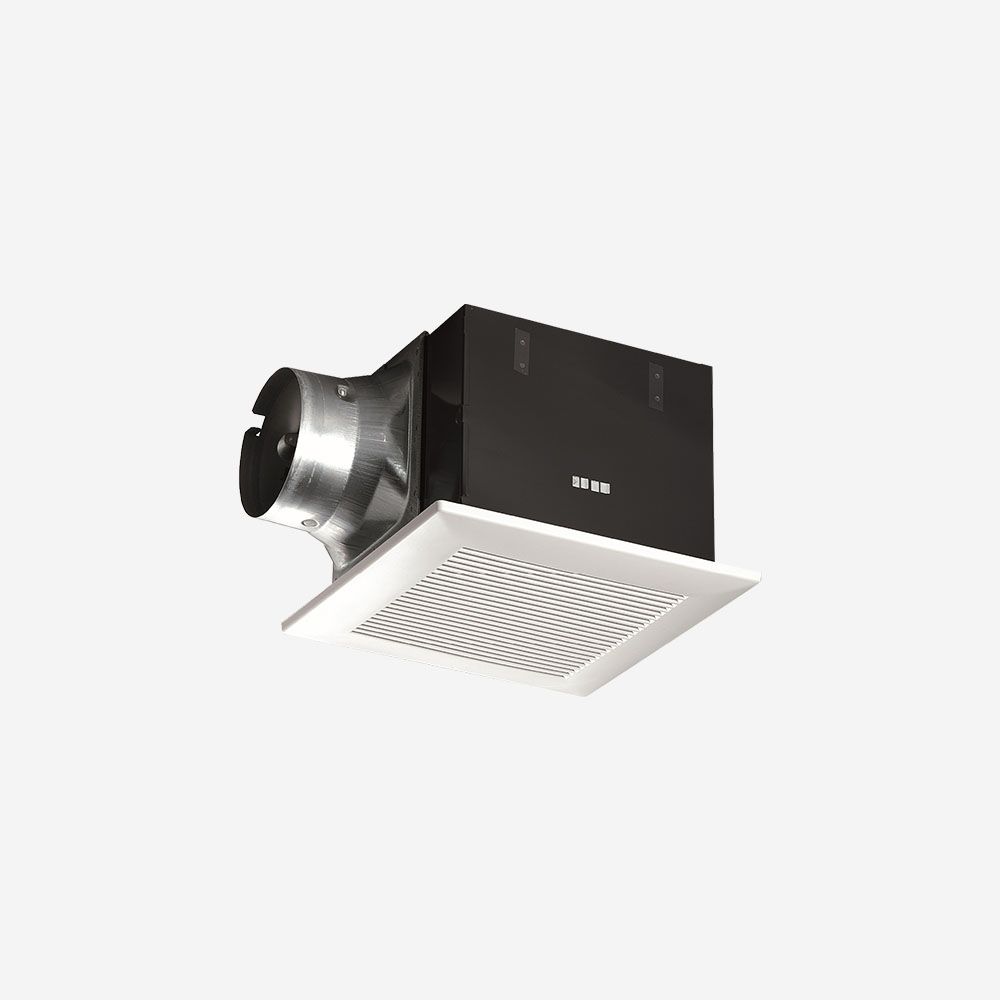

KDK 24CUH 24 cm (9.5″) Ceiling‑Mounted Ventilating Fan
The KDK 24CUH delivers quiet and efficient ventilation for bathrooms, kitchens, utility spaces, and offices. Its ceiling-mounted design features smart airflow control with a built-in backdraft shutter.
Key Features
- Quiet operation – resonance‑noise‑absorption casing and double‑chamber construction reduce noise to ~27 dB(A)
- Backdraft shutter – installed on the adapter to prevent reverse airflow when idle
- Durable condenser motor (2-pole, 12 W) with thermal fuse and ball-bearing support for long life
- Tapered sirocco blade – delivers smooth, high-performance airflow
- Pre-installed power cord and cassette-style steel grille for easy ceiling installation
- Standard Ø100 mm duct adapter – fits most ventilation setups
Product Specifications
| Blade / Duct Size | 24 cm / Ø 100 mm |
|---|---|
| Airflow | ≈ 140 m³/h (≈ 82 CFM) |
| Power Consumption | 12 W |
| Speed | ≈ 530 RPM |
| Noise Level | ≈ 27 dB(A) |
| Weight | ≈ 2.7 kg |

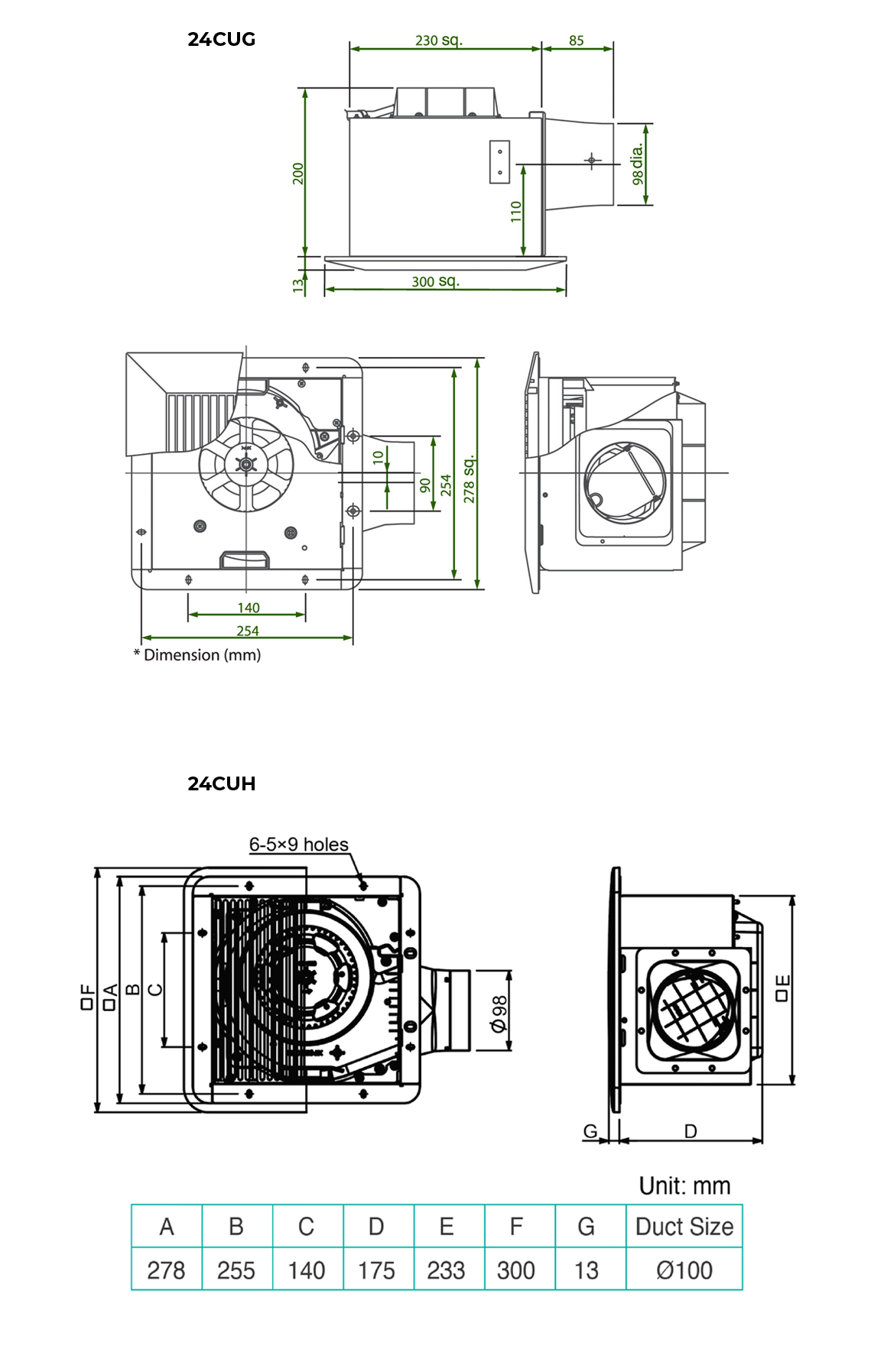

| Ceiling Cut‑out | 240 × 240 mm |
| Voltage | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Covers parts and labour at authorised service centres
- Validate warranty from purchase date – please retain your receipt
Why Choose the 24CUH?
The 24CUH offers efficient airflow with minimal noise—perfect for Singapore homes. Its built-in shutter prevents drafts, while its robust motor and smart casing ensure lasting performance and easy ceiling installation.
