Description

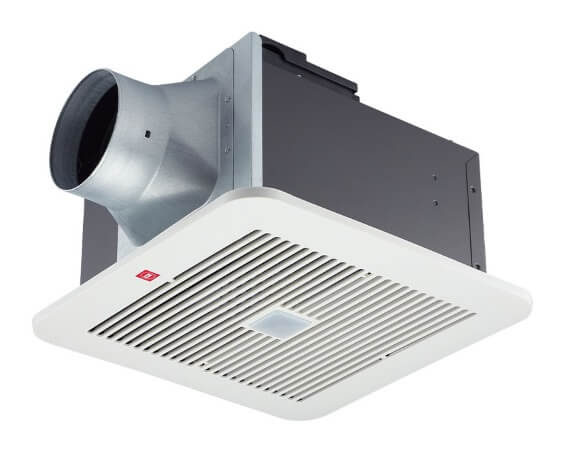

KDK 24CHRB 24 cm (9.5″) Ceiling-Mounted Ventilating Fan with Motion Sensor
Perfect for bathrooms, kitchens, and utility spaces, the KDK 24CHRB offers smart, hands-free ventilation that activates with motion and shuts off automatically—keeping your home fresh with minimal noise.
Key Features
- Motion sensor & auto operation – senses presence; built-in 15 min off‑delay ensures full extraction
- HP half‑pitch motor with ball bearings – smooth, durable performance with Class B insulation
- Tapered sirocco blade – high-efficiency airflow with low vibration
- Curve‑shaped backdraft shutter – prevents reverse airflow when idle
- HP support post & resonance‑absorption structure – whisper-quiet operation (~26–32 dB)
- Pre-installed power cord – ready for fast ceiling installation (300 × 300 × 180 mm cut-out)
Product Specifications
| Blade / Duct Size | 24 cm / Ø 100 mm |
|---|---|
| Air Volume | 200 m³/h (≈ 118 CFM) |
| Power Consumption | 17 W |
| Noise Level | 26–32 dB(A) |
| Weight | 2.8 kg |

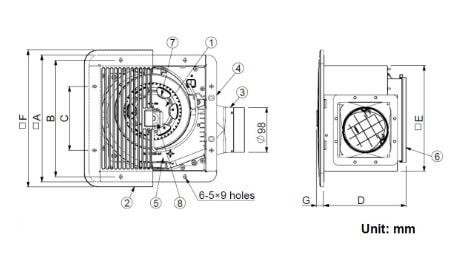

| Ceiling Dimensions | 300 × 300 × 180 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Covers parts and labour through authorized service centers
- Retain proof of purchase to activate warranty
Why Choose the 24CHRB?
The 24CHRB combines convenience, efficiency, and quiet operation in a sleek ceiling unit. With motion detection, durable motor, and backdraft protection, it offers smart ventilation ideal for modern Singapore homes.
