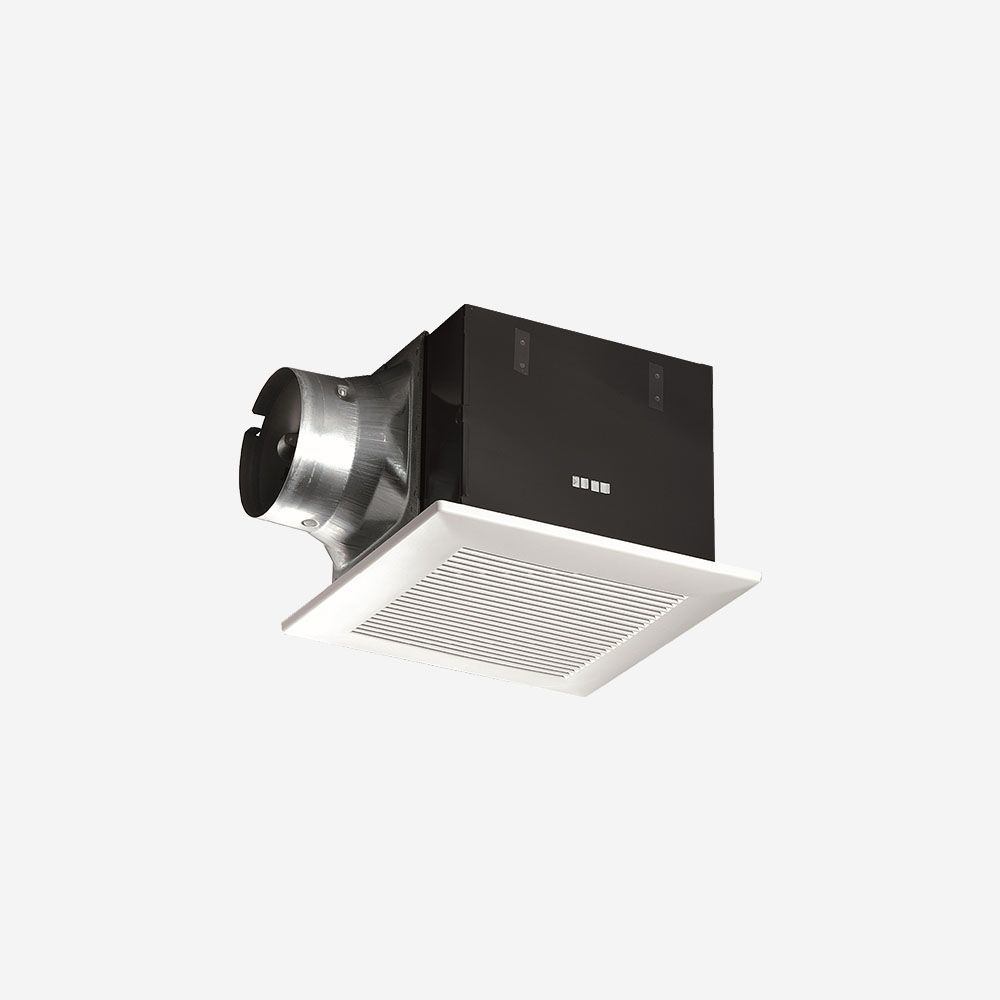

KDK 24CHH 24 cm (9.5″) Ceiling-Mounted Ventilating Fan (Steel, 2-Speed)
Elevate your home ventilation with the KDK 24CHH. Offering quiet, efficient airflow and a smart ceiling fit, it’s perfect for bathrooms, kitchens, and utility spaces.
Key Features
- Two-speed operation – switch between high and low airflow to suit different needs
- HP motor with thermal cut-off & ball bearings – long-lasting, reliable performance
- Tapered sirocco blade – enhances airflow while minimizing noise and vibration
- Built-in backdraft shutter – prevents reverse airflow when off
- Steel cassette grille & square-to-round adapter – seamless ceiling integration
- One-touch louver – easy access for cleaning and maintenance

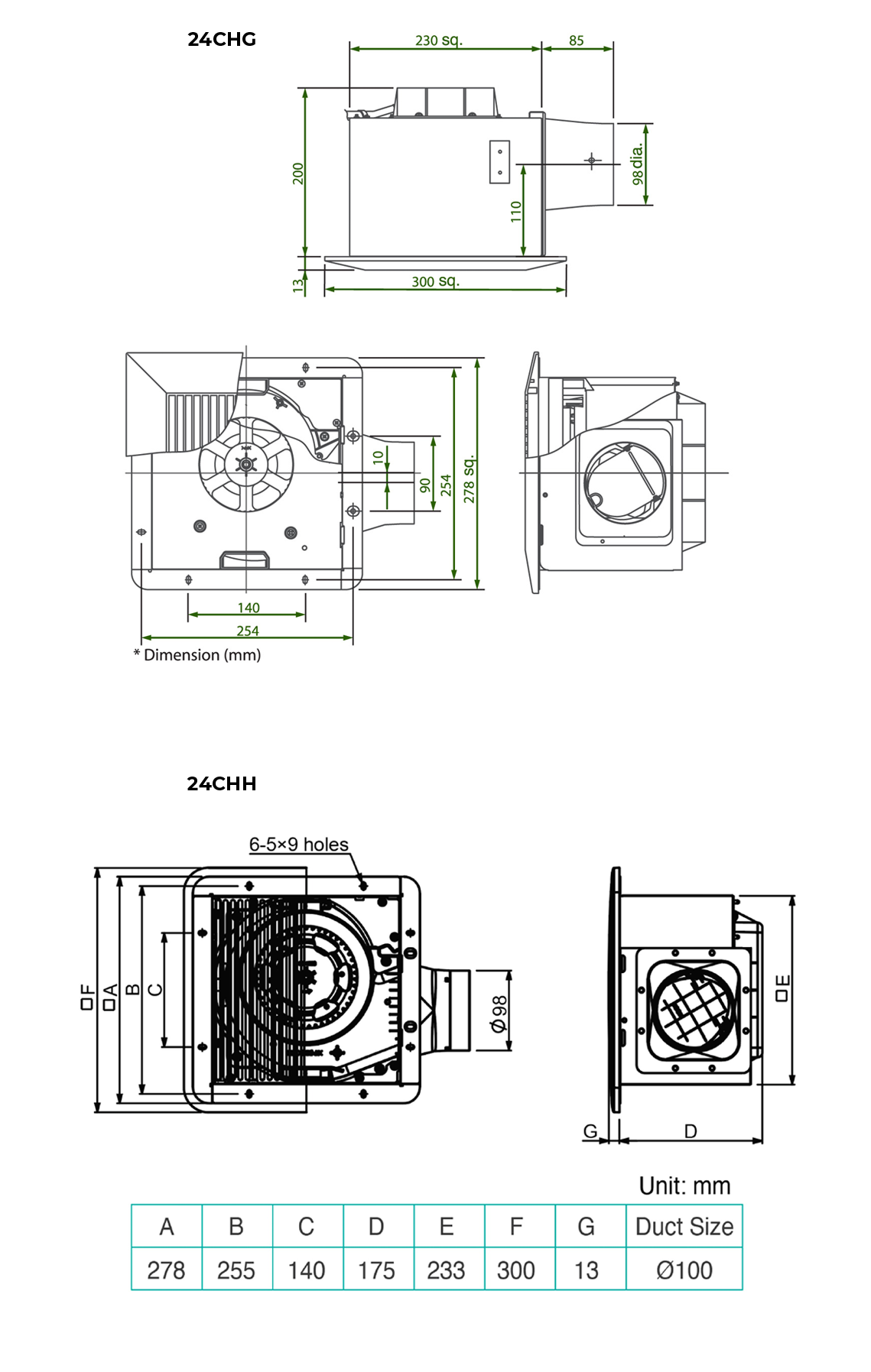

Product Specifications
| Airflow | ≈ 200 m³/h (≈ 118 CFM) |
|---|---|
| Power Consumption | 16.5 W |
| Noise Level | ≈ 32 dB(A) |
| Duct Size | Ø100 mm |
| Ceiling Cut‑out | ≈ 233 × 233 mm |
| Weight | ≈ 2.7 kg |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering manufacturing and motor defects
- Includes parts and labour at authorized service centers
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 24CHH?
With dual speeds, whisper‑quiet airflow, and a discreet ceiling presence, the 24CHH is a versatile and reliable ventilating solution. Its durable steel construction and built-in shutter make it ideal for modern Singapore interiors.
