Description

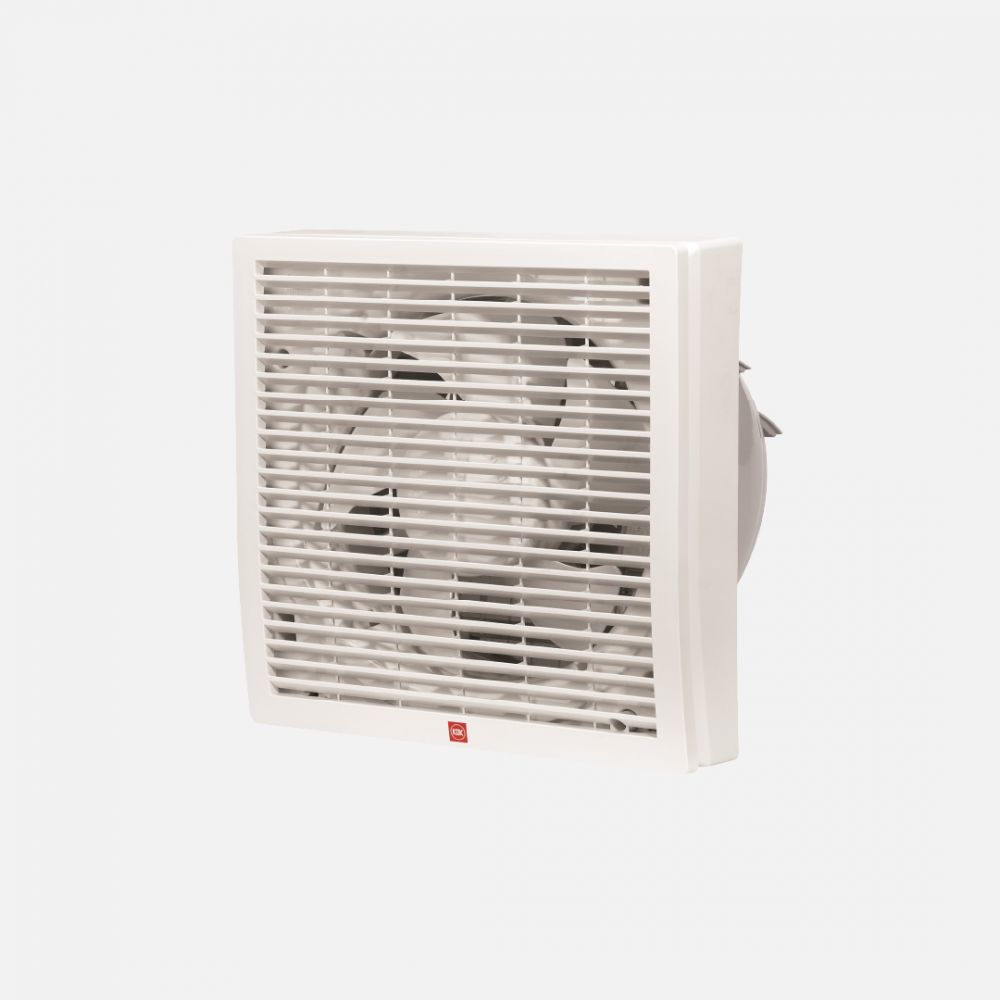

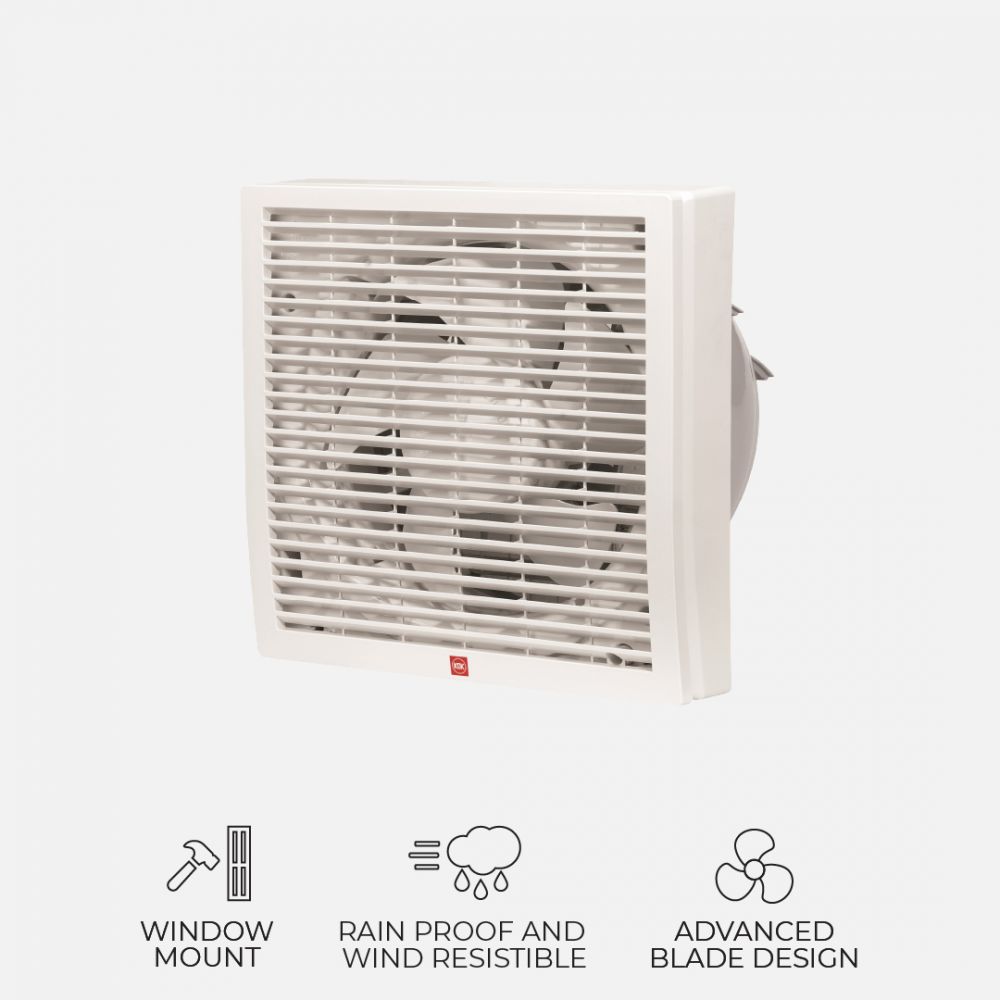

KDK 20WHCT 20 cm (8″) Window-Mounted Ventilating Fan
Compact yet effective, the KDK 20WHCT installs neatly into window glass (3–25 mm thick) and features an electric hood‑style shutter that opens during operation and seals tightly when off—ideal for protection against rain, wind, and backflow.
Key Features
- Electric shutter with hood & bent-end design – rainproof, wind-resistant, and automatically closes when idle
- HP condenser motor with thermal fuse – ensures safe, reliable performance
- Advanced blade and well-lubricated bearings – smooth airflow with low noise
- Window-glass installation – fits glass 3–25 mm thick, no sealant required
- Easy-mount brackets – quick installation, suitable for horizontal or vertical fit
- IPX4-rated housing – safe for external exposure
Product Specifications
| Blade Diameter | 20 cm (8″) |
|---|---|
| Power Consumption | 21 W |
| Air Volume | ≈ 445 m³/h (≈ 262 CFM) |
| Noise Level | ≈ 42 dB(A) |
| Weight | ≈ 2.6 kg |
| Glass Thickness | 3–25 mm |

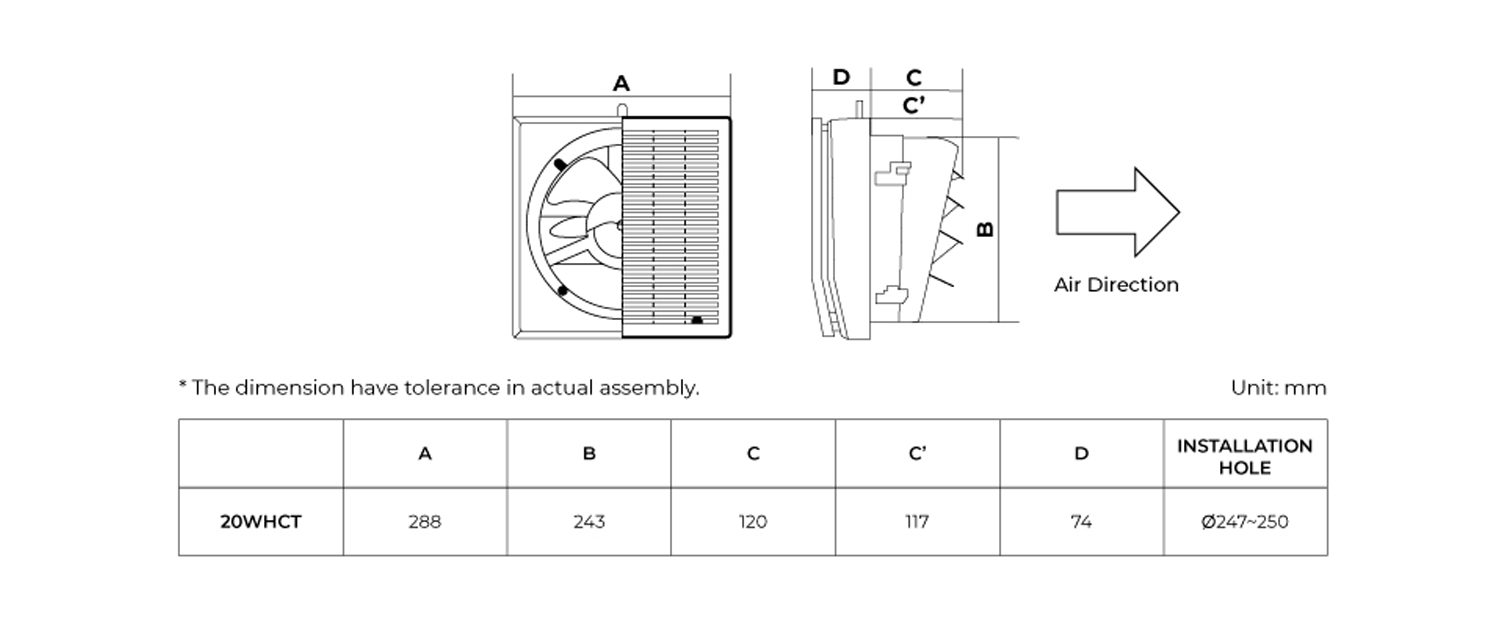

| Installation Hole | 247–250 mm |
| Voltage / Phase | 220–240 V, 50 Hz, single-phase |
Warranty & Service (Singapore)
- 1‑year local warranty covering manufacture defects
- Includes parts and labour via authorised service centres
- Warranty valid from purchase date—retain your proof of purchase
Why Choose the 20WHCT?
The 20WHCT is perfect for small-to-medium spaces needing clean, efficient ventilation. Its automatic shutter keeps the elements out, and the HP motor ensures steady airflow with minimal noise—an ideal solution for Singapore bathrooms and kitchens.
