Description

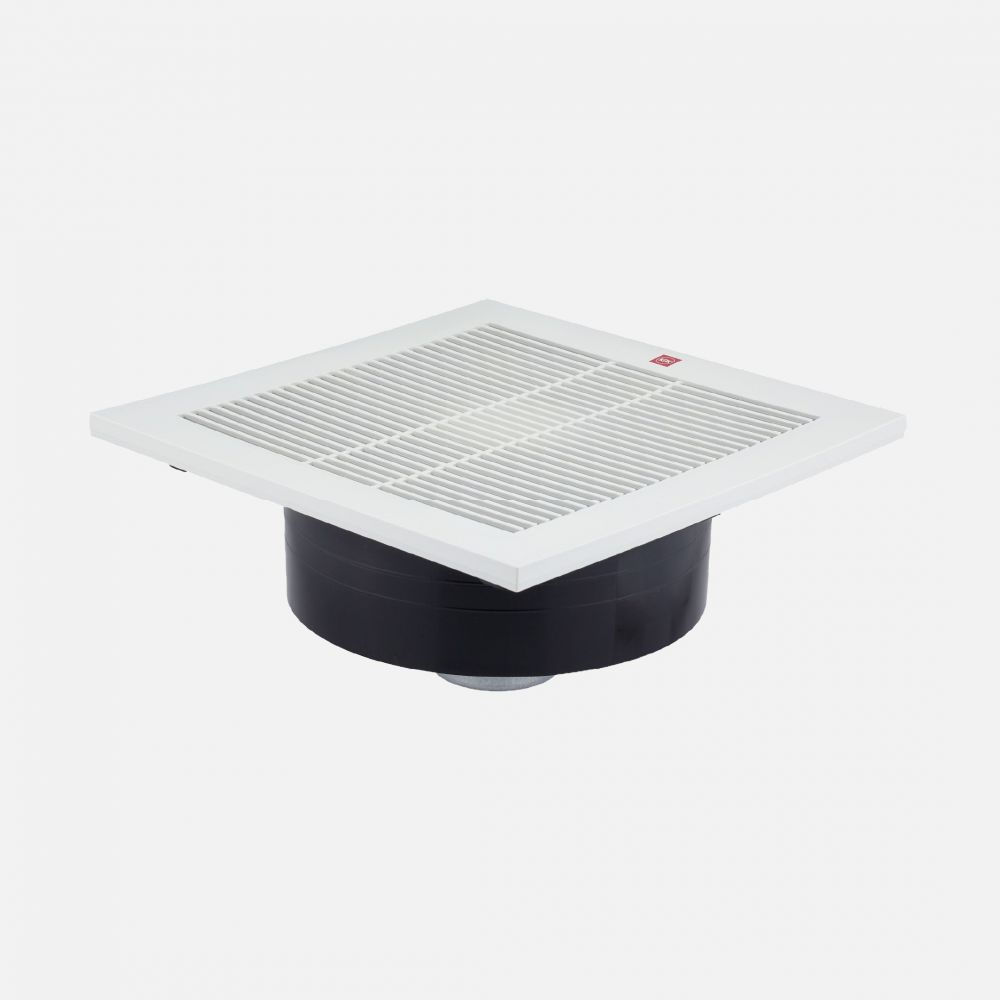

KDK 20TGQF 20 cm (8″) Ceiling‑Mounted Ventilating Fan
Compact yet powerful, the KDK 20TGQF delivers efficient airflow for bathrooms, kitchens, and utility spaces. Designed for continuous daily operation, it easily installs into ceilings and offers quiet, reliable performance.
Key Features
- Ceiling-mount design – space-saving and ideal for non-ducted spaces
- High airflow – 312 CFM (≈ 530 m³/h) capacity
- Condensed condenser motor (20 W) with thermal fuse – safe and built to last
- Q‑blade design & ball-bearing motor – smooth, balanced, low-noise operation
- Compact dimensions – L315 × W305 × H143 mm and weighs just 1.3 kg
Product Specifications
| Blade Diameter | 20 cm (8″) |
|---|---|
| Power Consumption | 20 W |
| Speed | ≈ 1,250 RPM |
| Airflow | 312 CFM (≈ 530 m³/h) |
| Noise Level | ≈ 41 dB(A) |
| Weight | ≈ 1.3 kg |
| Voltage/Frequency | 220–240 V / 50 Hz |

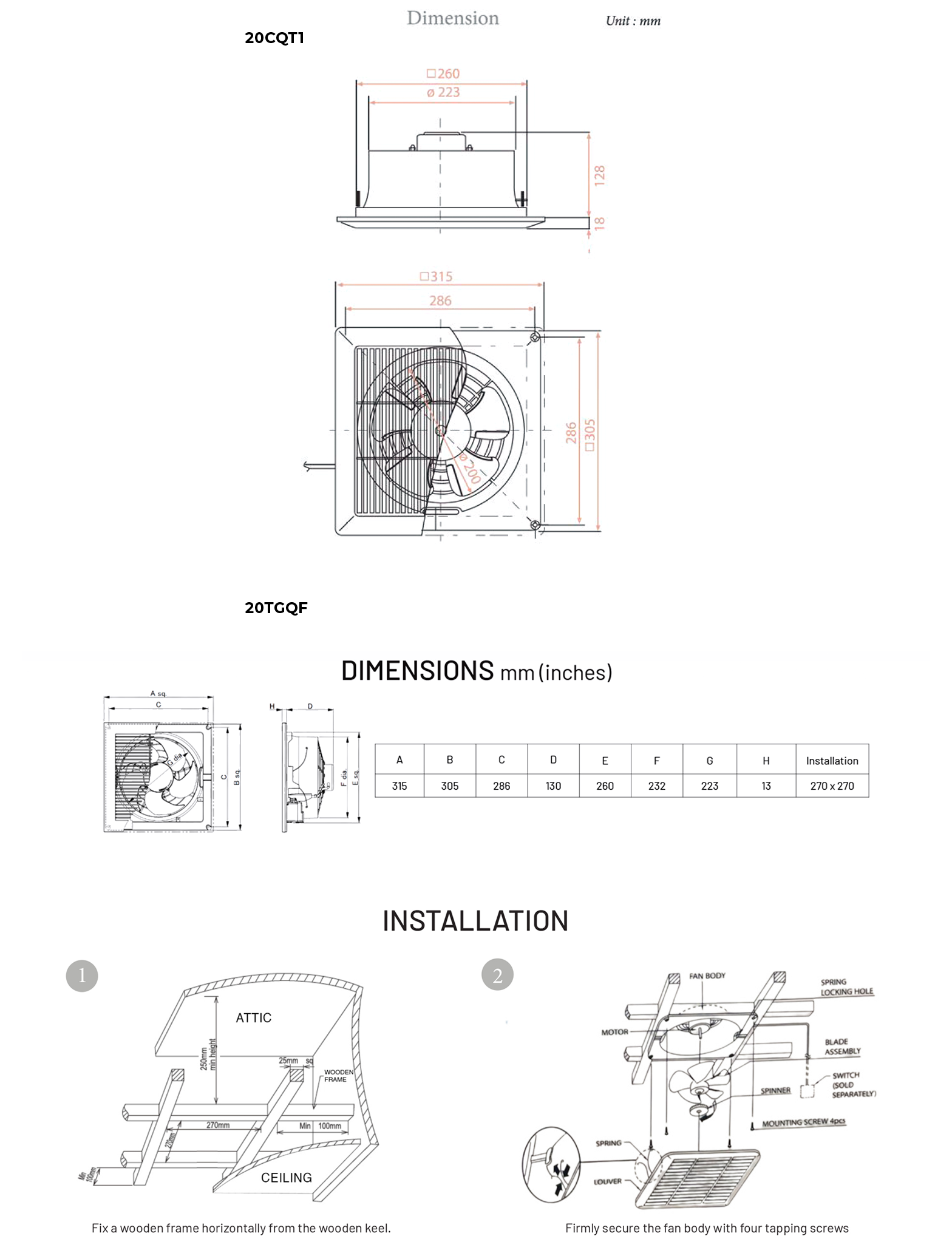

| Dimensions | 315 × 305 × 143 mm |
Warranty & Service (Singapore)
- 1‑year local warranty on manufacturing defects
- Parts and labour covered via authorised service centres
- Warranty valid from date of purchase—retain your receipt
Why Choose the 20TGQF?
This compact ceiling fan delivers impressive airflow and quiet operation in a slim, compact form. It's ideal for spaces with ceiling installations and where continuous ventilation is required—making it perfectly suited for Singapore homes.
