Description

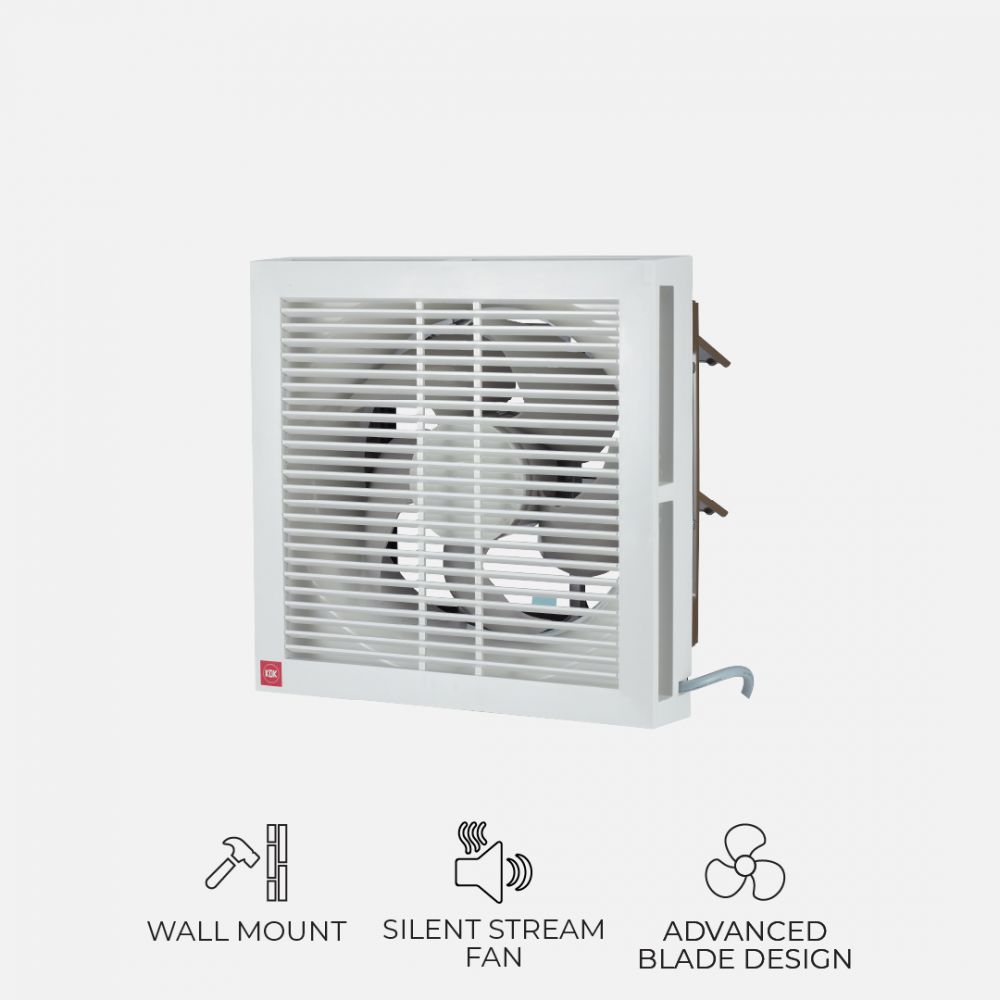

KDK 20ALA 20 cm (8″) Wall-Mounted Ventilating Fan
Compact and efficient, the KDK 20ALA is designed for subtle yet effective ventilation in bathrooms, kitchens, and utility spaces. Enjoy quiet performance, automatic shutter control, and easy installation in a clean, modern finish.
Key Features
- 3D silent-stream propeller blade – delivers strong airflow with minimal noise
- Condenser motor with thermal fuse – safe and durable operation
- Automatic shutter – closes when off to prevent backdrafts and dust
- Oil-collection cup – traps grease, especially useful in kitchen areas
- Sturdy metal frame with powder coating for long-lasting use
- Wall-mount design – ideal for 250 × 250 mm cut-outs
Product Specifications
| Blade Diameter | 20 cm (8″) |
|---|---|
| Power Consumption | 18 W |
| Air Volume | ≈ 323 CFM (≈ 550 m³/h) |
| Speed | ≈ 1,280 RPM |
| Noise Level | ≈ 38 dB(A) |

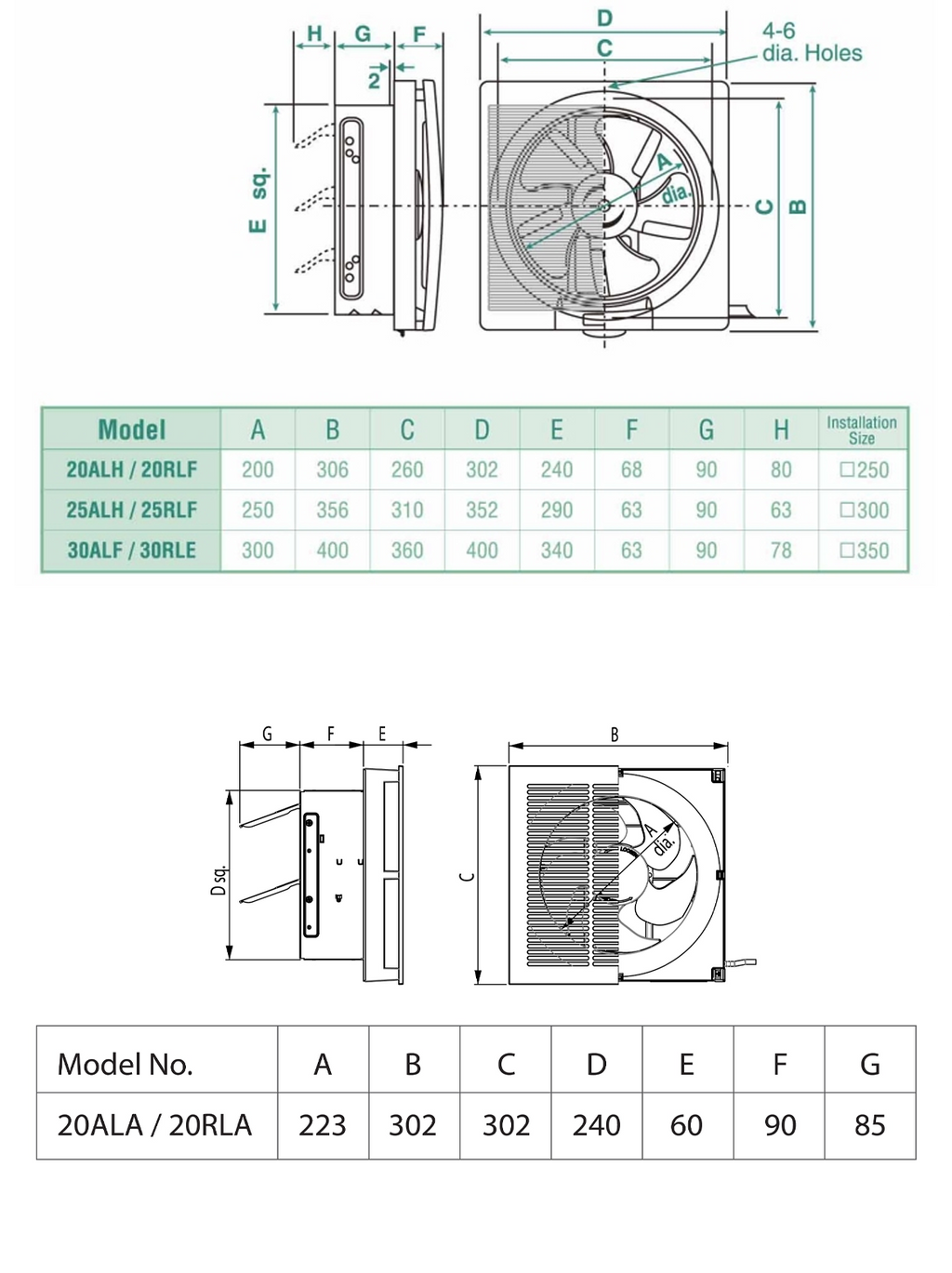

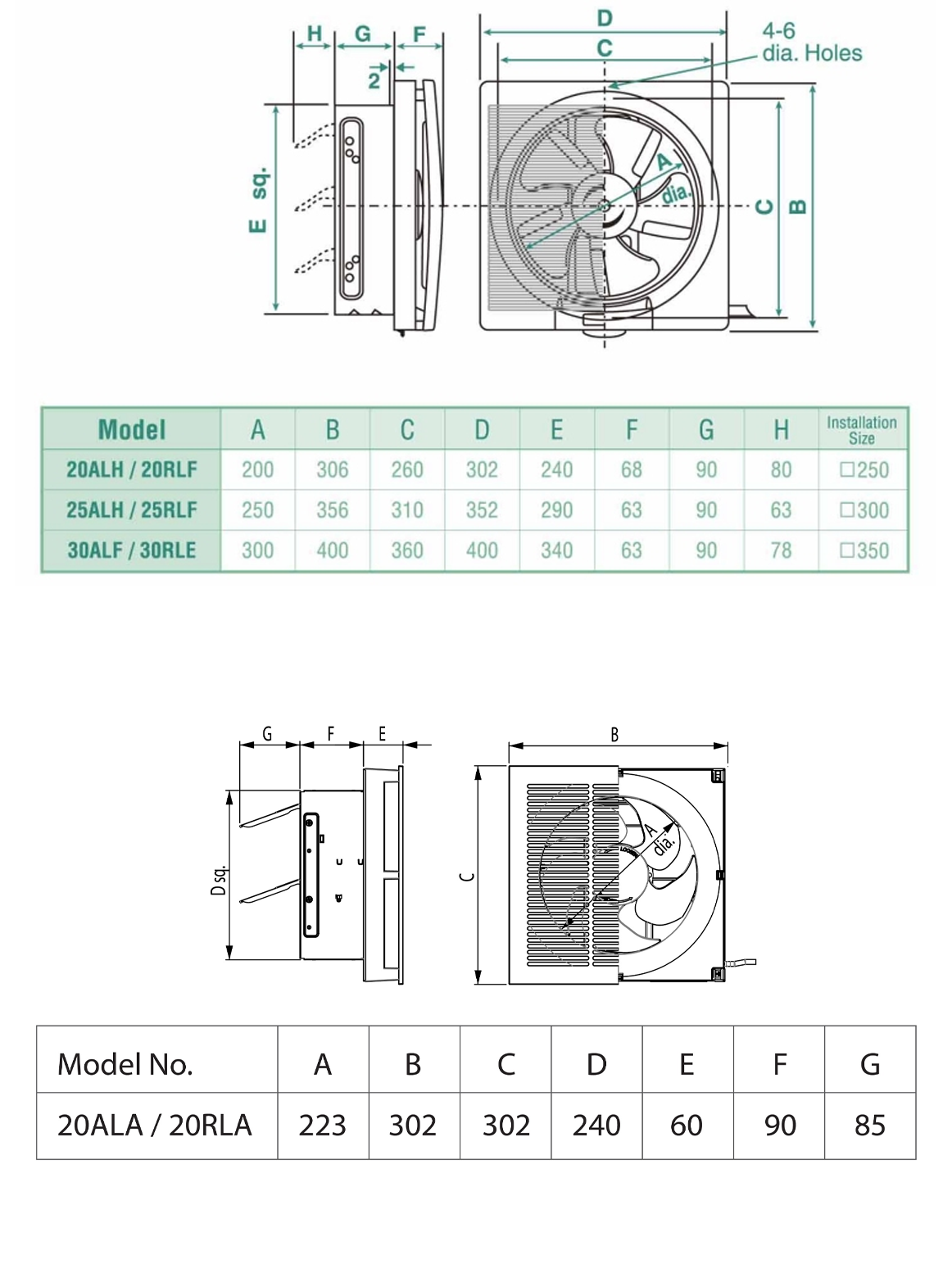

| Dimensions | Cut-out: 250 × 250 mm; Overall: approx. 302 × 302 × 90 mm |
| Weight | Approx. 2 kg |
Warranty & Service (Singapore)
- 1‑year local warranty on manufacturing defects via authorized distributor
- Covers parts and labour at authorized service centers
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 20ALA?
The 20ALA offers dependable, quiet ventilation in a compact form. Its automatic shutter and oil-cup feature keep spaces clean, while its robust construction ensures durability—an ideal fit for modern Singapore homes.
