Description

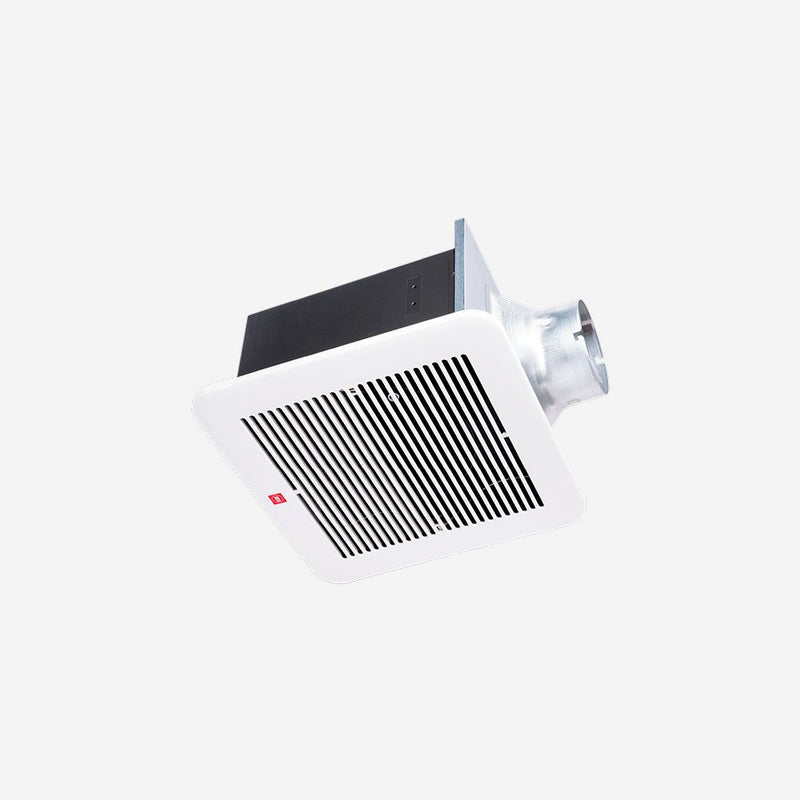

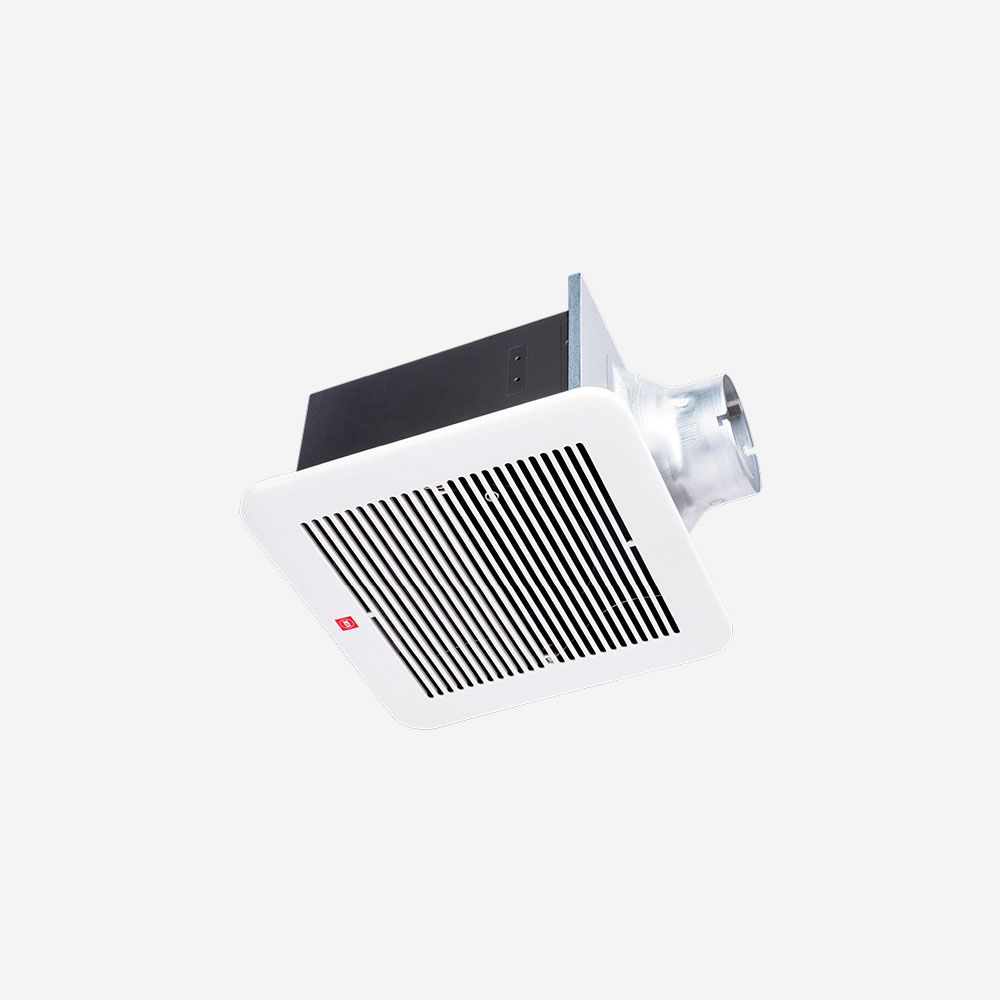

KDK 17CUH 17 cm (6.9″) Ceiling-Mounted Ventilating Fan
Ideal for bathrooms, walk-in closets or compact utility rooms, the KDK 17CUH delivers quiet and efficient ventilation. Its low-profile design fits easily into ceilings, offering continuous airflow with minimal noise.
Key Features
- Super-quiet operation – just 23 dB(A), ideal for noise-sensitive areas
- Pre-installed backdraft shutter – prevents reverse airflow when idle
- HP condenser motor with thermal fuse – provides reliable and safe performance
- Tapered sirocco blade & well-lubricated bearings – balanced, efficient airflow

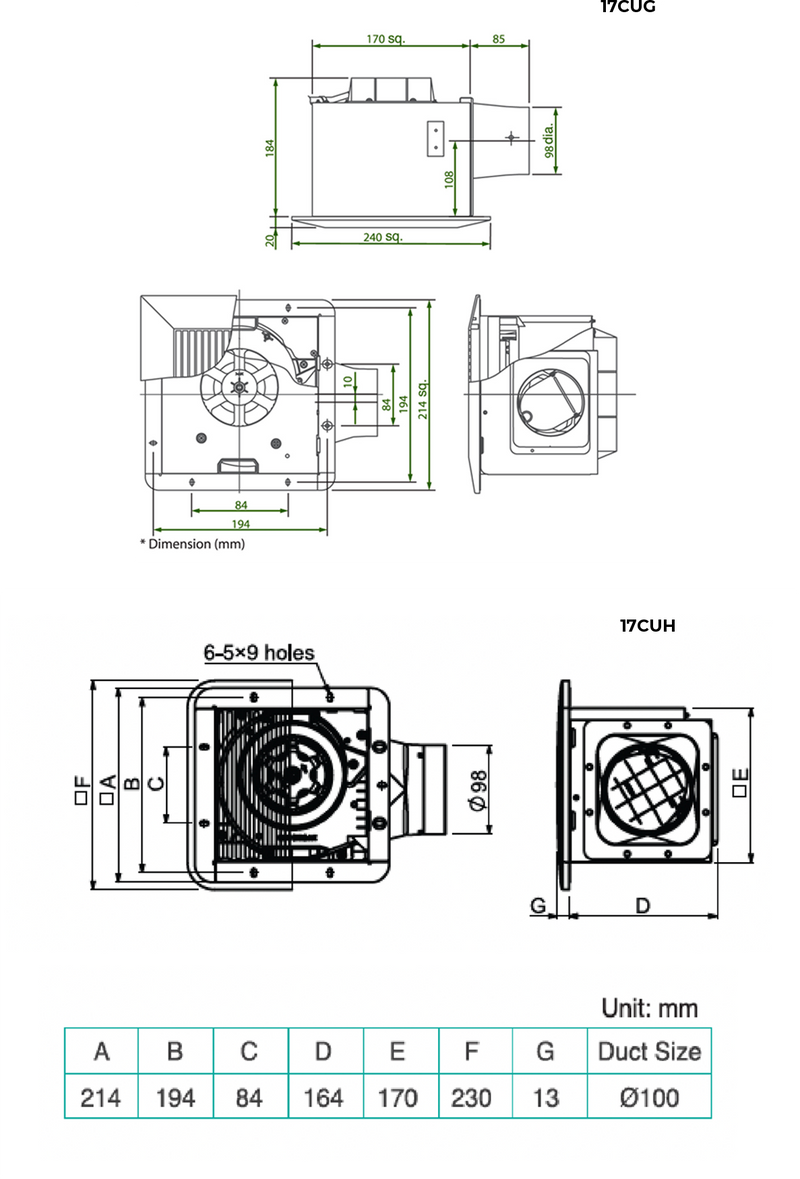

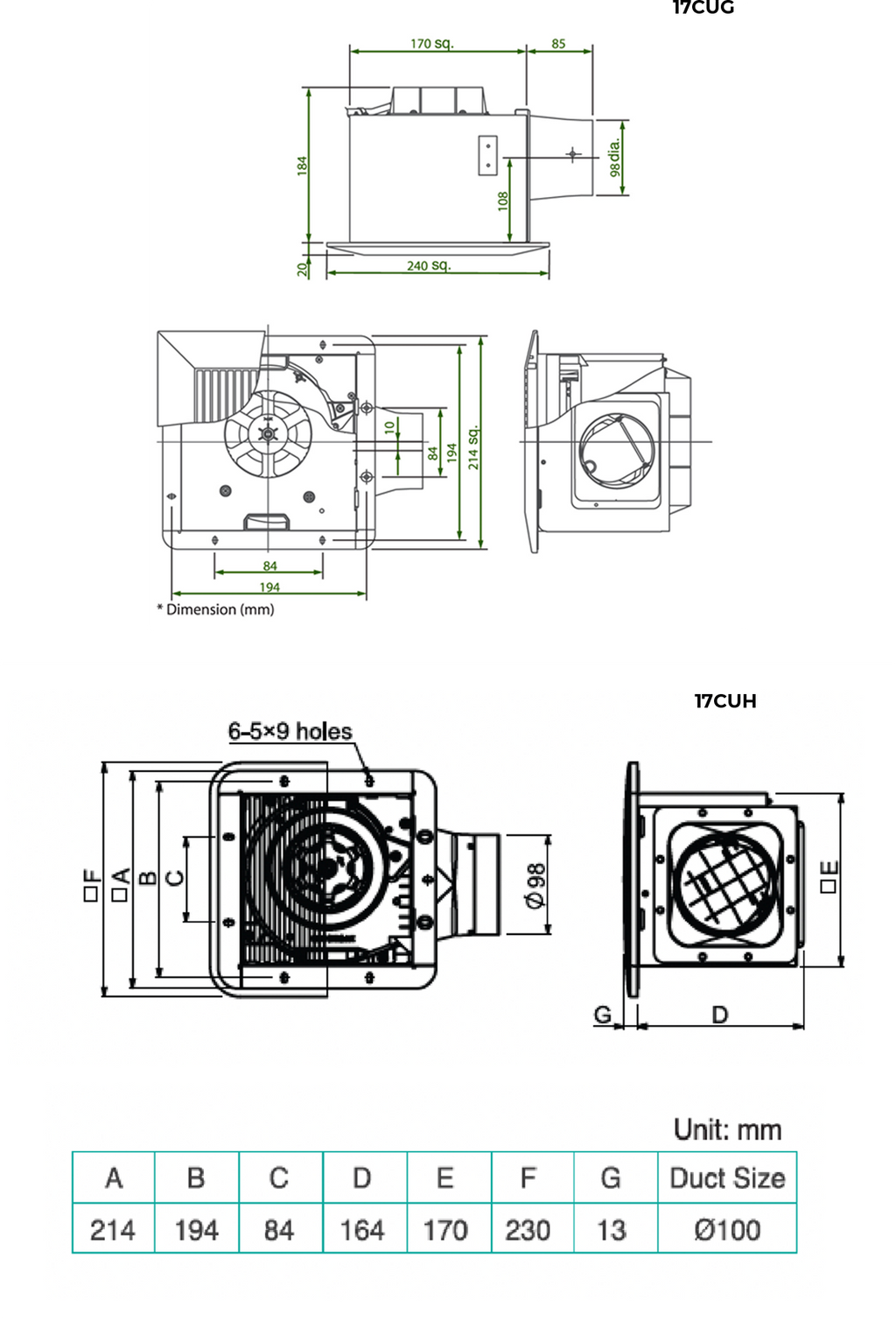

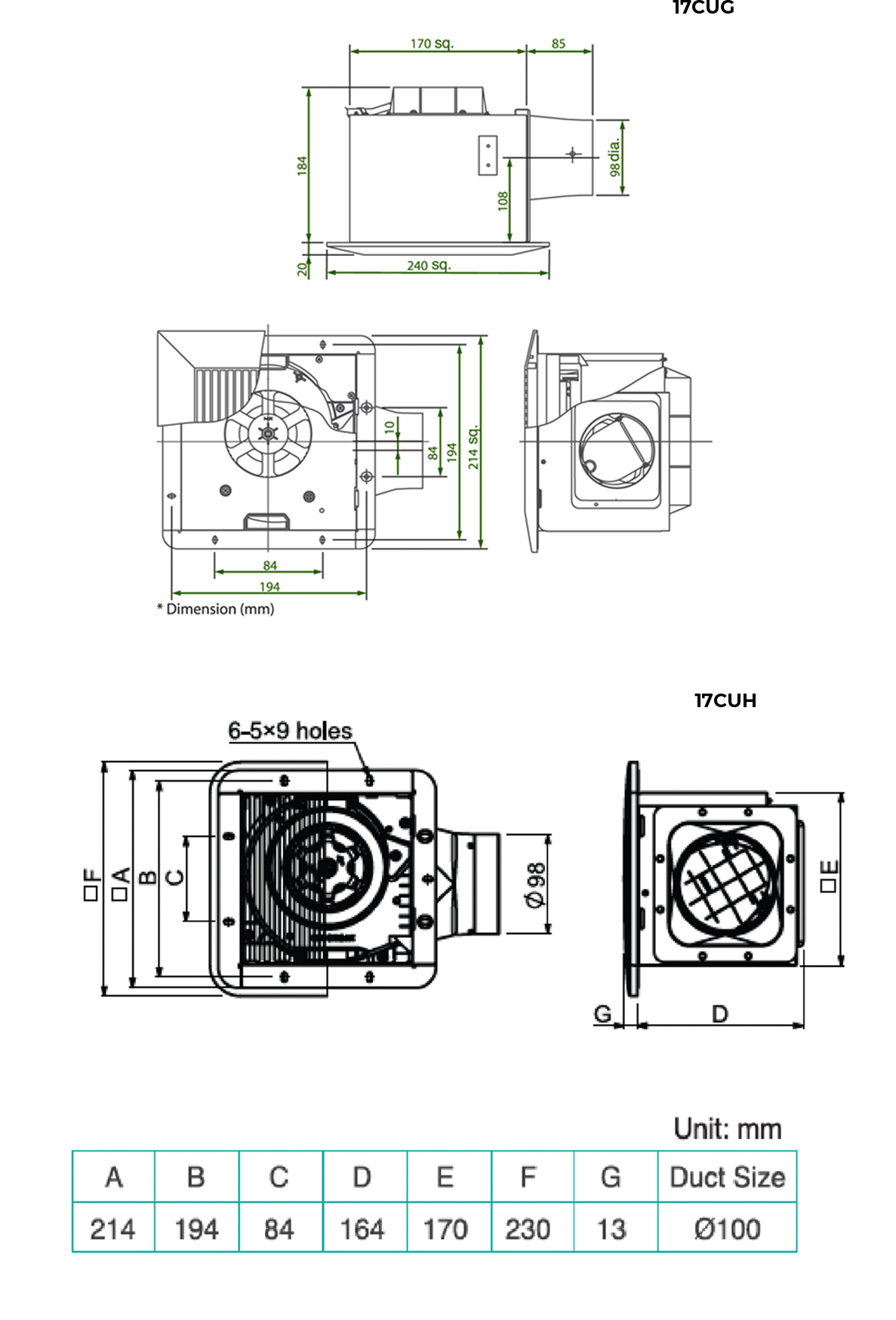

- Compact ceiling fit – 177 × 177 mm ceiling opening, ductable to Ø100 mm
Product Specifications
| Blade/Duct Size | 17 cm / Ø100 mm |
|---|---|
| Power Consumption | 7.5 W |
| Airflow | ≈ 85 m³/h (≈ 50 CFM) |
| Speed | ≈ 680 RPM |
| Noise Level | ≈ 23 dB(A) |
| Weight | ≈ 1.7 kg |
| Ceiling Cut‑out | ≈ 177 × 177 mm |
| Voltage | 220–240 V, 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and manufacturing defects
- Coverage includes parts and labour via authorised service centres
- Warranty starts from date of purchase — keep the receipt
Why Choose the 17CUH?
With its whisper-quiet 23 dB noise rating and compact ceiling profile, the 17CUH is perfect for low-noise environments. Equipped with a built-in shutter and efficient sirocco blade, it improves air circulation without disturbing the peace.
