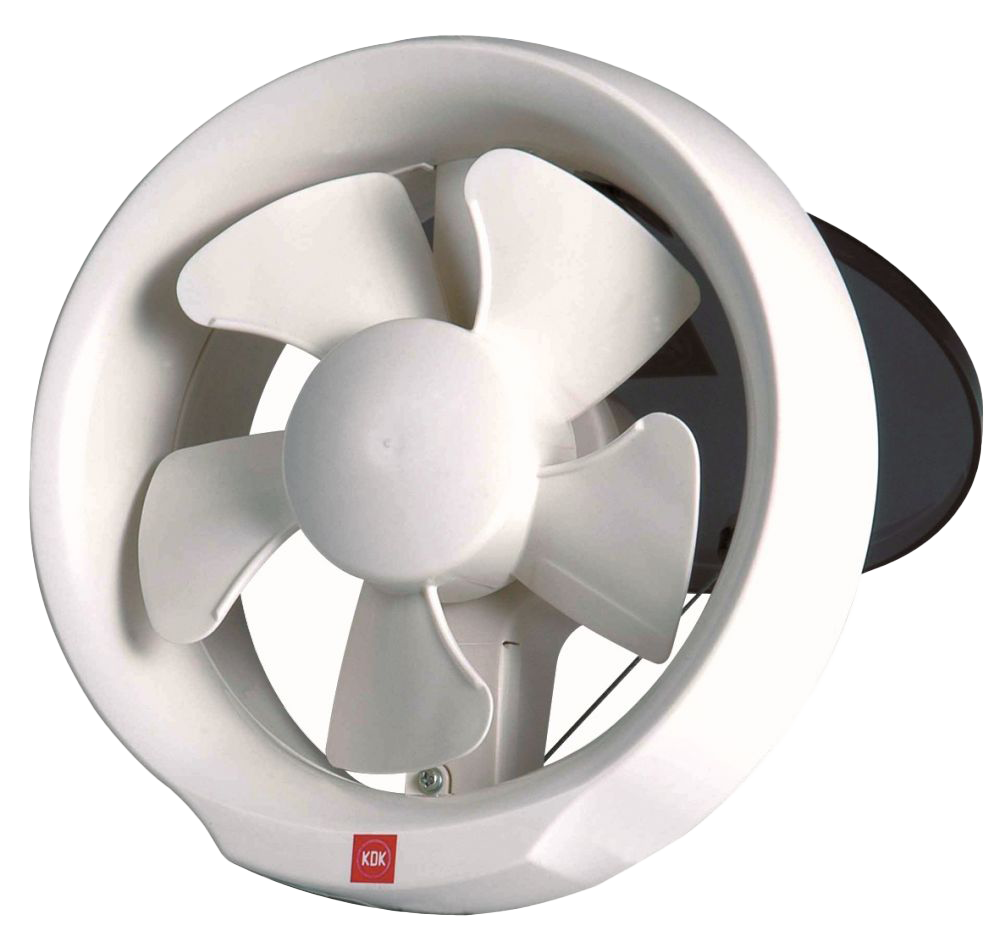

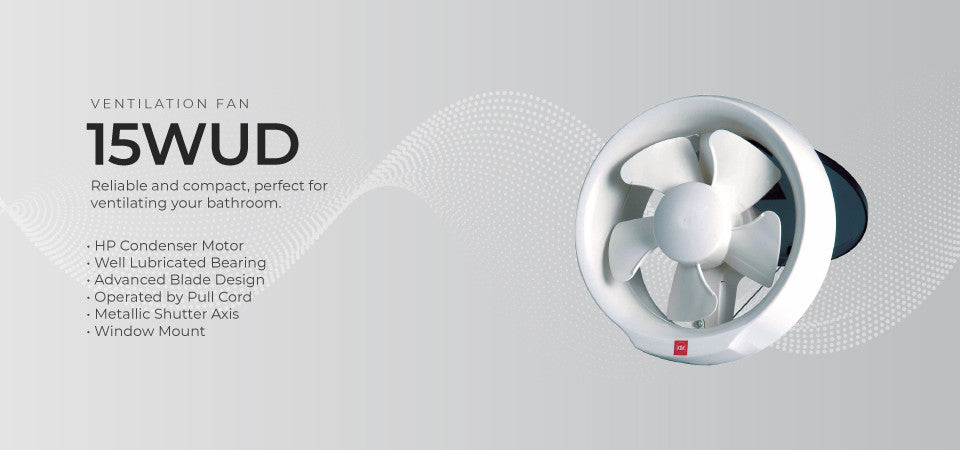

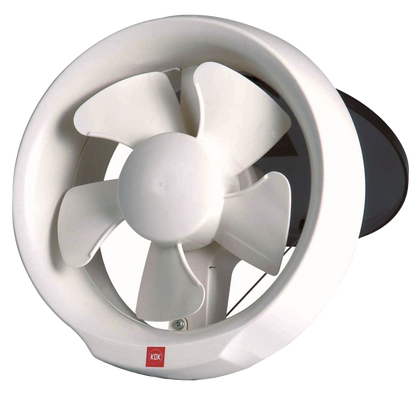

KDK 15WUD 15 cm (6″) Window-Mounted Ventilating Fan
Compact yet effective, the KDK 15WUD is ideal for small bathrooms, toilets, or kitchens. It installs neatly into glass windows (3–7 mm thick) and features a pull-cord operated shutter and powerful HP condenser motor—designed for reliable, quiet ventilation.
Key Features
- Pull-cord operated shutter – opens automatically during operation and closes when off
- HP condenser motor with thermal fuse – built for safety and long life
- Advanced blade design & well-lubricated bearings – maximise airflow while keeping noise low
- Window-glass installation – fits 3–7 mm glass panels, ideal for easy mounting
- IPX4 rating – safe for exterior exposure

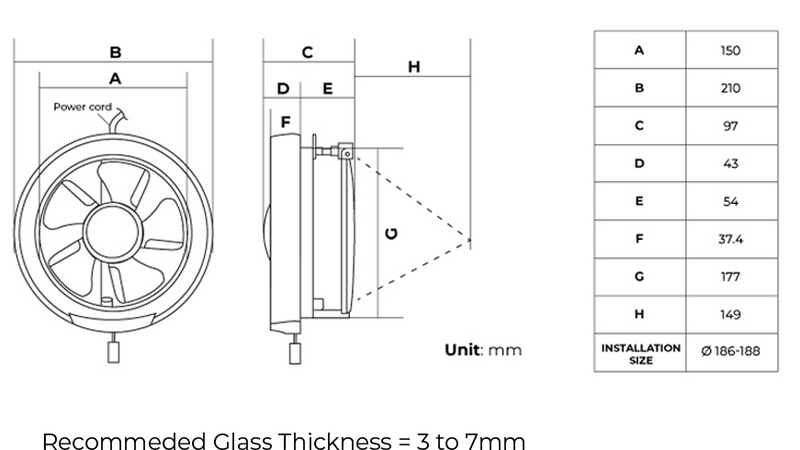

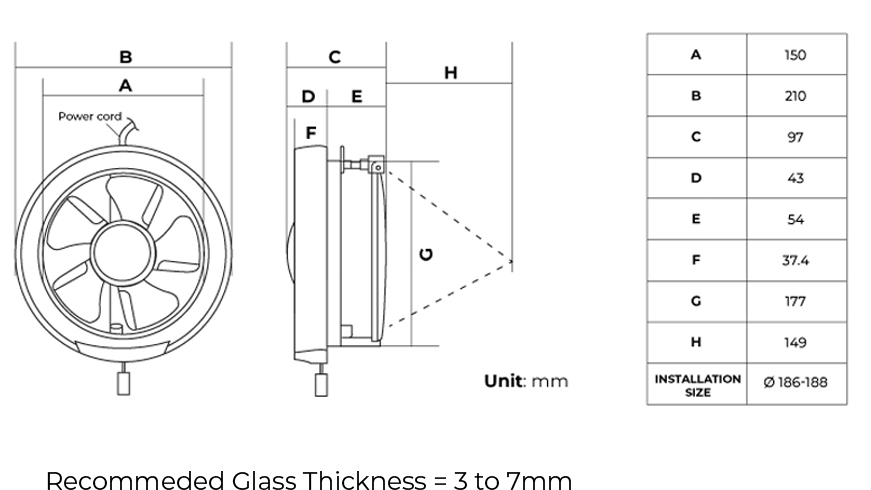

Product Specifications
| Blade Diameter | 15 cm (6″) |
|---|---|
| Power Consumption | ≈ 8 W |
| Speed | ≈ 1,463 RPM |
| Air Volume | ≈ 210 m³/h (≈ 124 CFM) |
| Noise Level | ≈ 35 dB(A) |
| Weight | ≈ 0.9 kg |
| Glass Thickness | 3–7 mm |
| Installation Depth | ≈ 186–188 mm cut-out |
| Voltage/Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty on motor and manufacturing defects
- Includes parts and labour via authorised service centres
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 15WUD?
The 15WUD combines quiet, efficient airflow with user-friendly glass-end installation. Its pull-cord shutter enhances safety and convenience, while the compact size and IPX4 rating ensure excellent ventilation in small spaces.
