Description

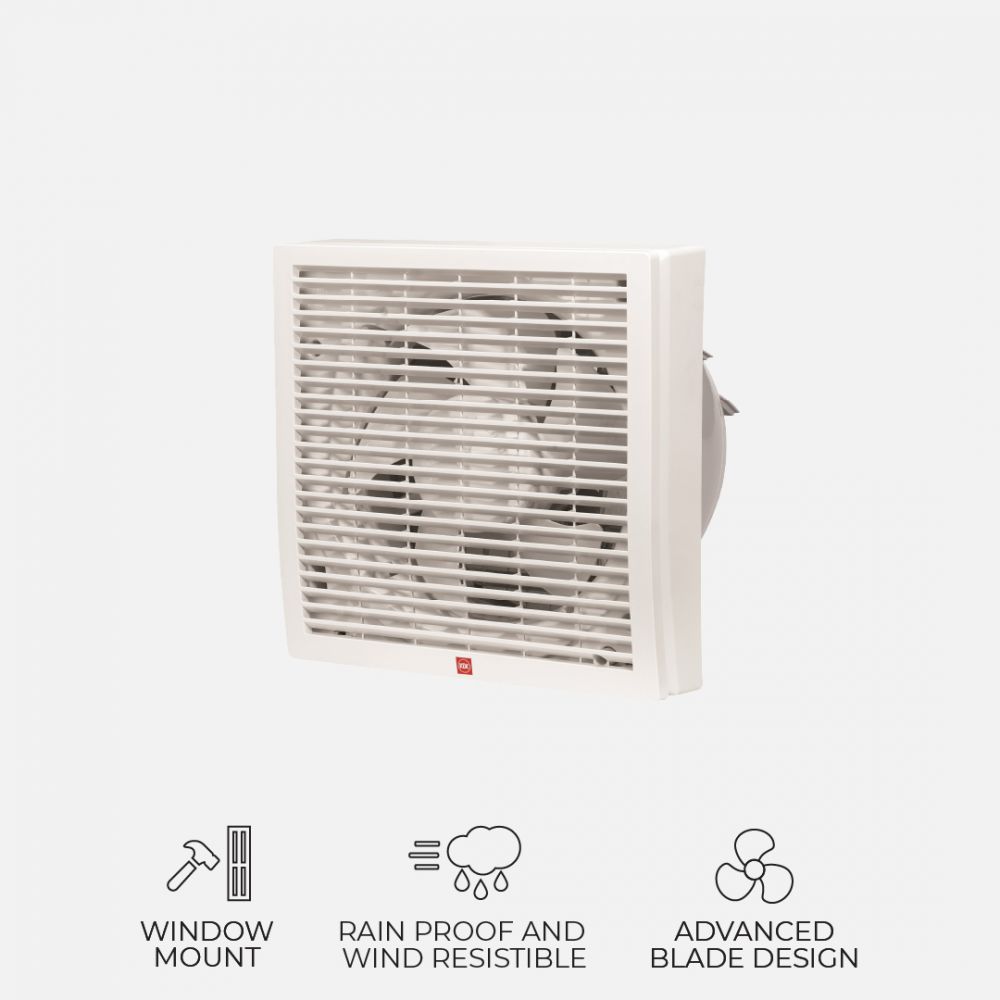

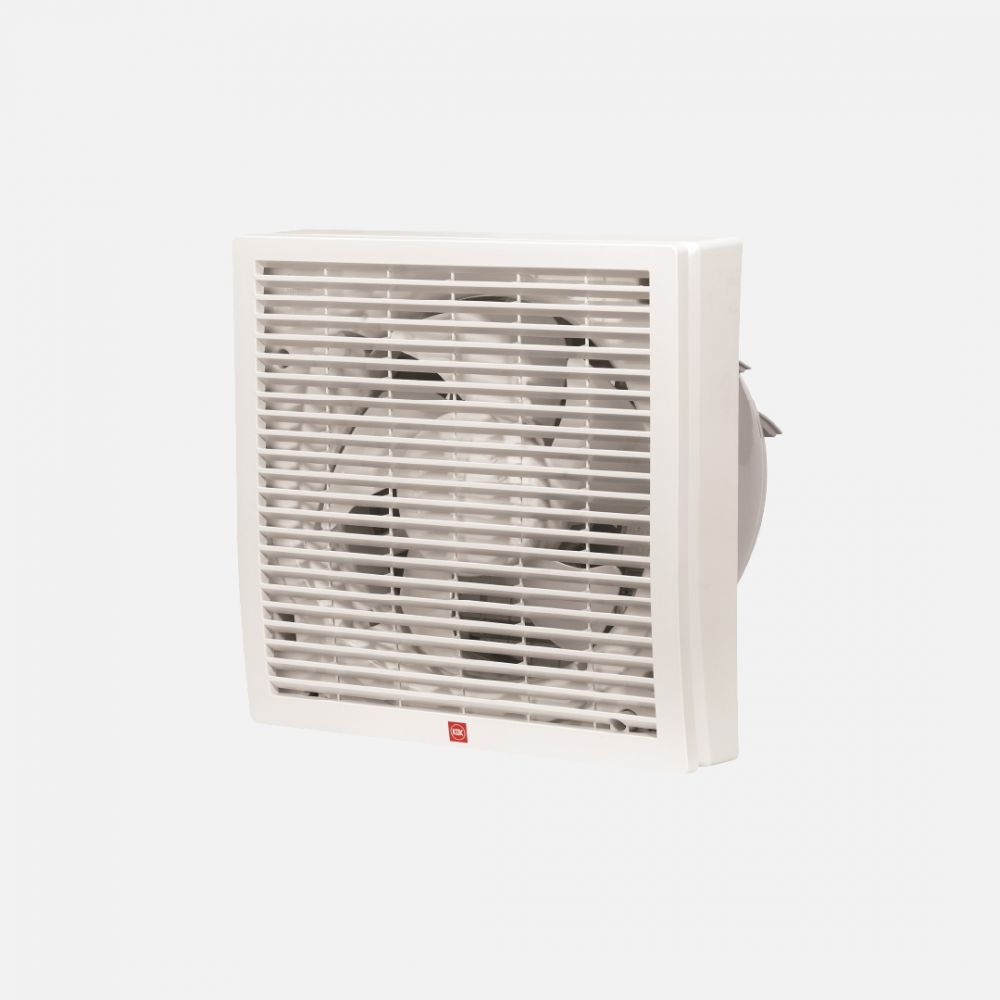

KDK 15WHPCT 15 cm (6″) Window-Mounted Ventilating Fan
Compact yet powerful, the KDK 15WHPCT installs neatly into windows (3–7 mm glass) and features an electric shutter that opens during operation and closes automatically when off—keeping out rain, dust, and backflow.
Key Features
- Electric shutter with hood & bent-end design – ensures rain protection and wind resistance
- HP condenser motor with thermal fuse – delivers safe, long-lasting performance
- Advanced blade & sealed bearings – smooth, efficient airflow with low noise
- Easy installation – fits 194–196 mm window openings without sealant or gaskets
- IPX4-rated – suitable for outdoor exposure
Product Specifications
| Blade Diameter | 15 cm (6″) |
|---|---|
| Power Consumption | ≈ 13–14 W |
| Air Volume | ≈ 230 m³/h (≈ 135 CFM) |
| Noise Level | ≈ 43 dB(A) |
| Speed | ≈ 1,460 RPM |
| Weight | ≈ 1.5 kg |
| Glass Thickness | 3–7 mm |
| Installation Hole | 194–196 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Parts and labour supported by authorised service centres
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 15WHPCT?
This window-mounted fan combines efficient airflow, smart electric shutter protection, and simplified installation—all in a compact design. It’s the ideal ventilation solution for kitchens, bathrooms, or any area needing quick air refresh without compromising exterior appearance.
