Description

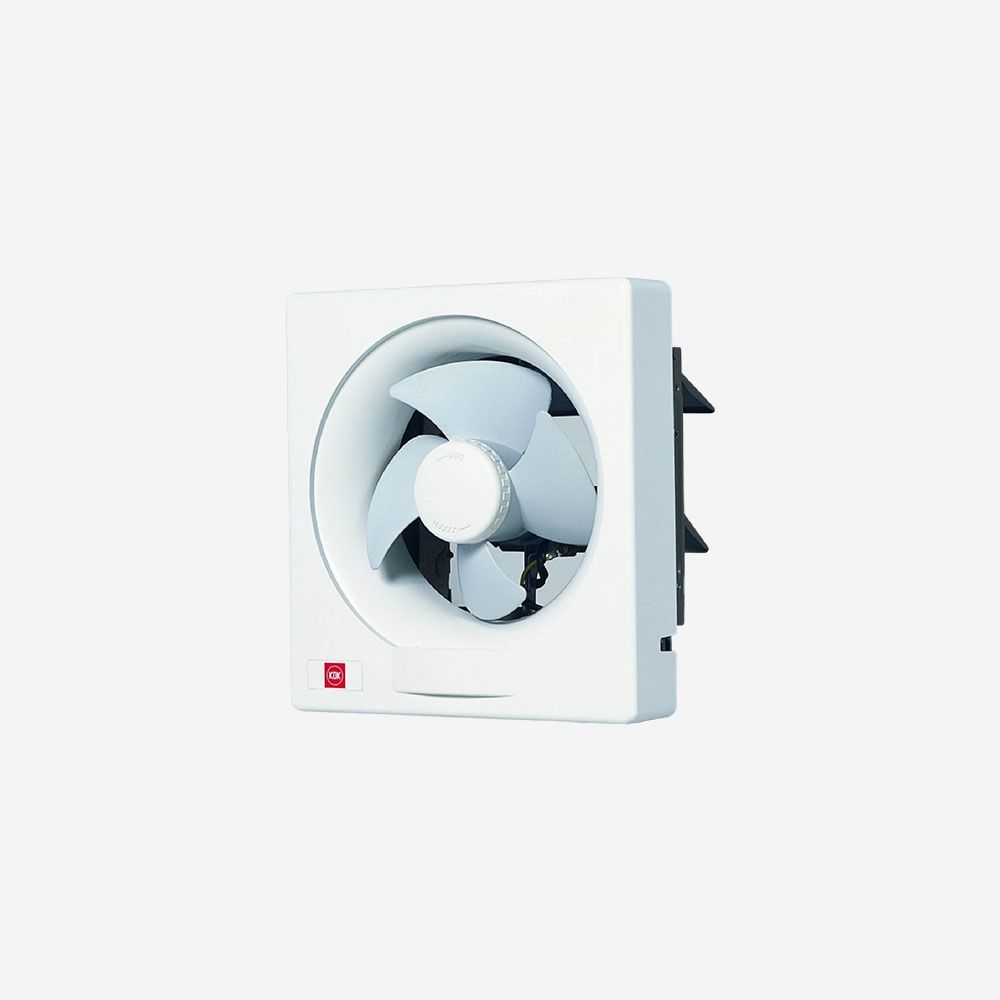

KDK 15AAQ1 6″ (15 cm) Wall‑Mounted Ventilation Fan
Compact yet efficient, the KDK 15AAQ1 is ideal for small bathrooms, kitchens, or hobby rooms. Featuring an automatic shutter and quiet operation, it offers reliable ventilation in a sleek profile.
Key Features
- Automatic shutter – closes when not in use to prevent drafts
- Condenser motor with thermal fuse – safe and durable
- High-performance 6″ propeller – balanced airflow with low noise
- Easy-clean design – removable front grille and blade
- Oil cup & cushion dampers – reduce noise and improve lifespan

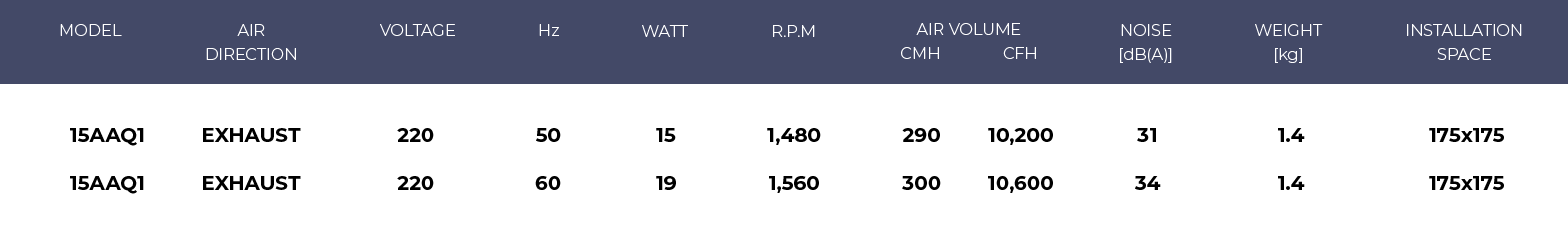

Product Specifications
| Blade Diameter | 15 cm (6″) |
|---|---|
| Power Consumption | 15 W |
| Motor Type | Condenser (AC) |
| Speed (RPM) | Approx. 1 480 RPM |
| Air Volume | ≈ 170 CFM (≈ 288 m³/h) |
| Noise Level | ≈ 31 dB(A) |
| Voltage/Frequency | 220–240 V / 50 Hz |
| Weight | Approx. 1.4 kg |
Warranty & Service (Singapore)
- 1‑year local warranty on manufacturing defects via authorised distributor
- Covers parts and labour at authorised service centres
- Warranty starts from date of purchase—retain proof of purchase
Ideal For
The 15AAQ1 is perfect for discreet, efficient extraction in compact spaces. Its quiet operation, auto-close shutter, and easy-clean design make it a smart, reliable ventilation solution for modern Singapore homes.
