Product Description
Epic Bass. Incredible sound.

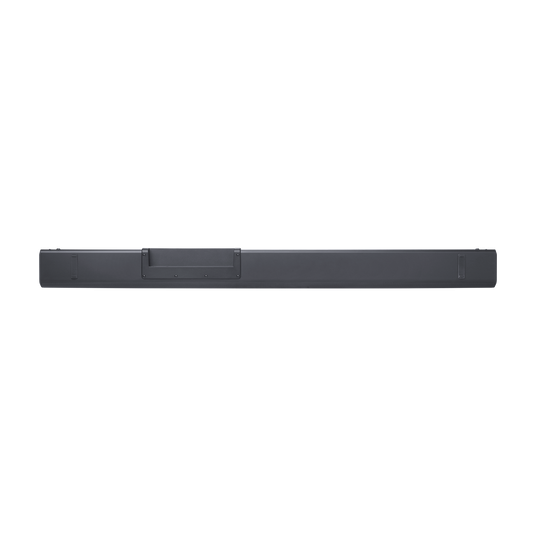

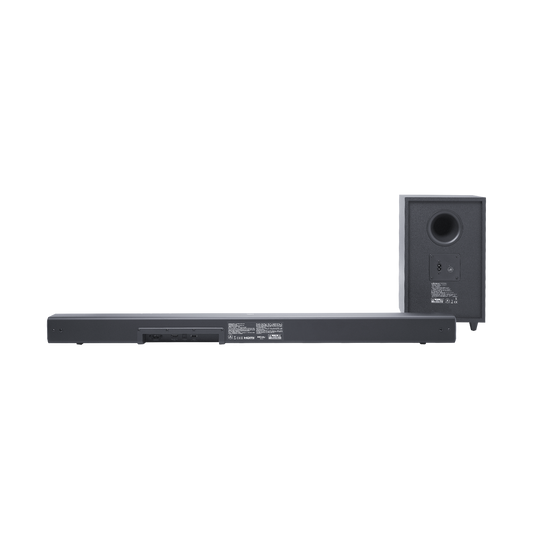

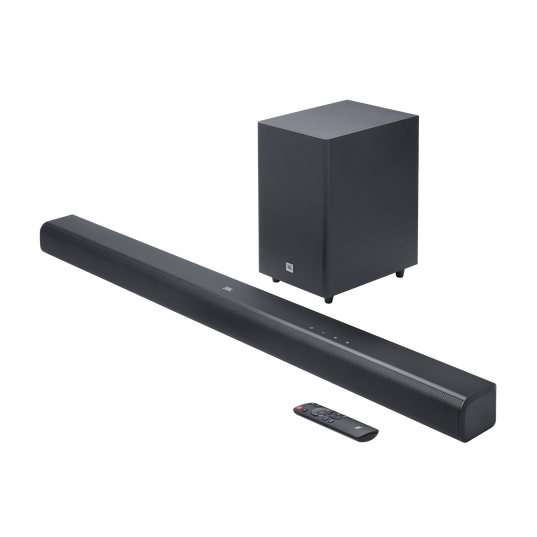

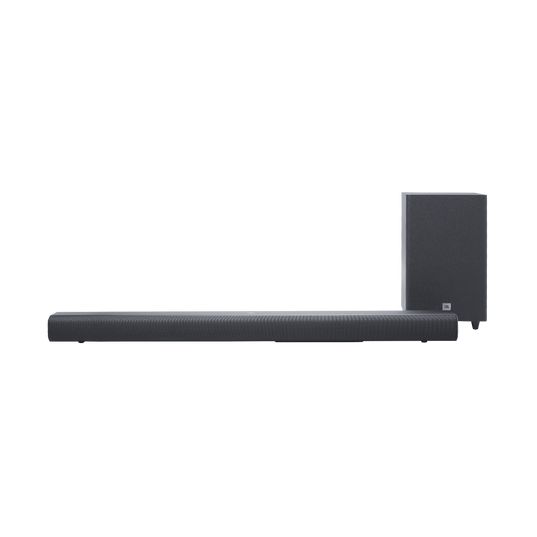

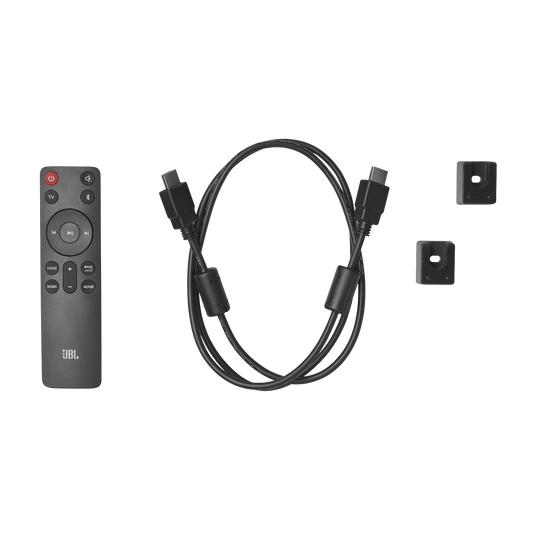

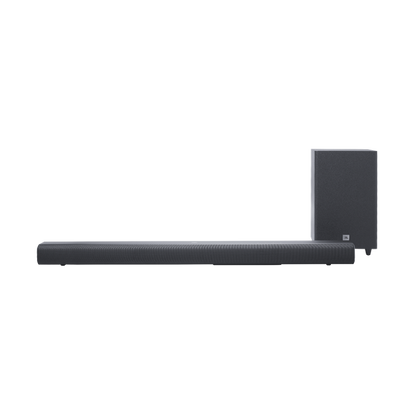

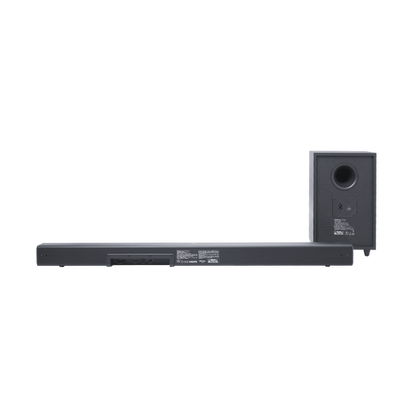

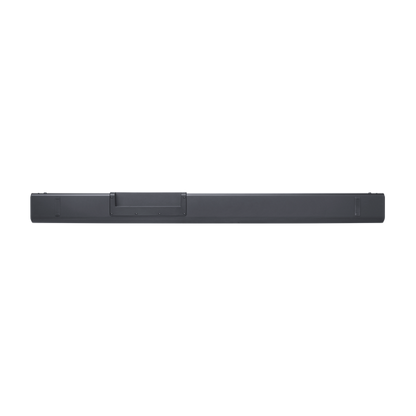

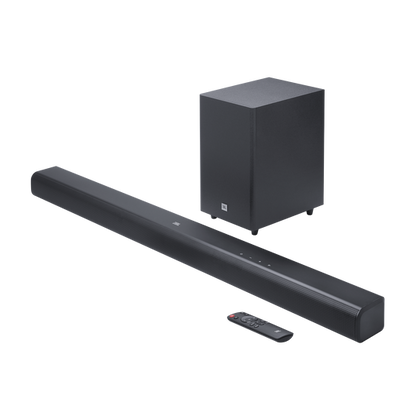

Step up your sound with the 3.1 channel JBL Cinema SB550 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25” subwoofer will make everything you watch more exciting. A dedicated center channel means TV and film dialogue always sounds crystal clear. Set-up is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.
General Specifications
ModelCINEMA SB550
Sound system3.1 channel
Power supply100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)250W
Soundbar output power (Max @THD 1%)150W
Subwoofer output power (Max. @THD 1%)100W
Soundbar transducer3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters

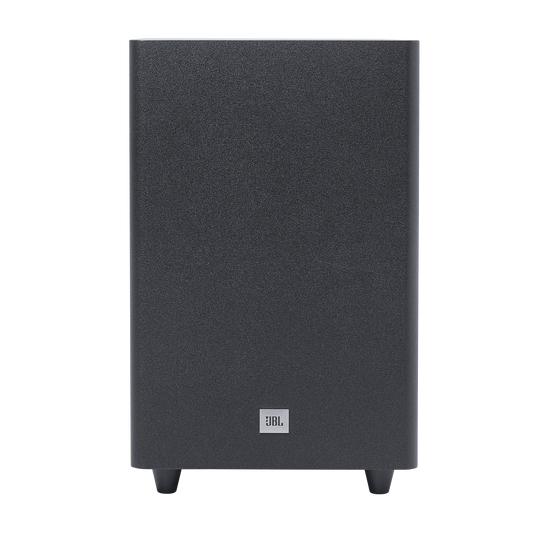

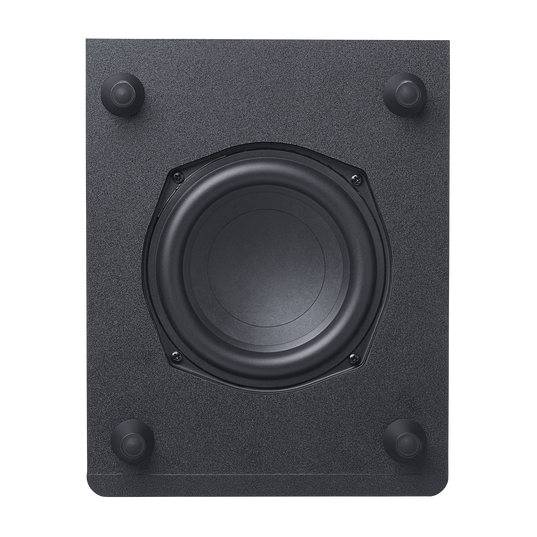

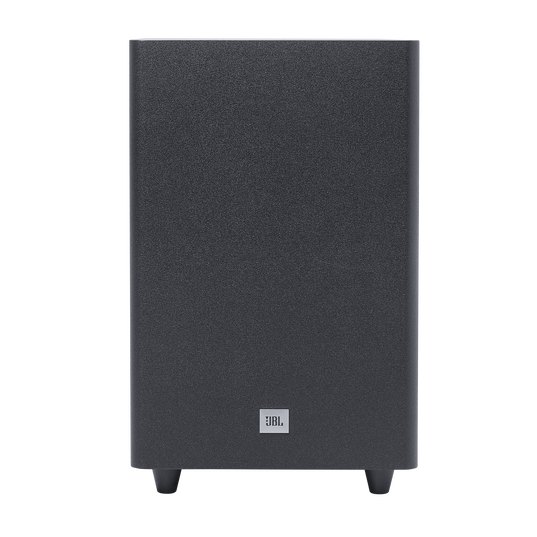

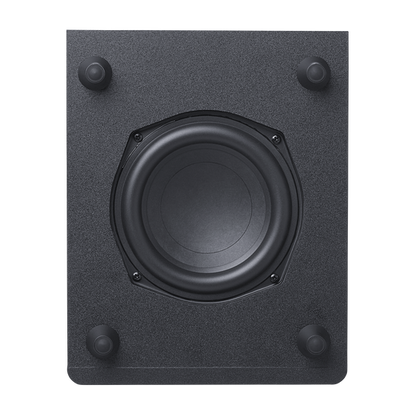

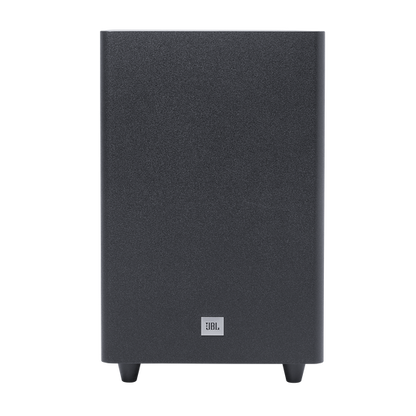

Subwoofer transducer5.25” (133 mm), wireless subwoofer
Standby power< 0.5 W
Operating temperature0°C - 45 °C
Audio Specifications
Frequency response45Hz-20kHz (-10dB)
Audio inputs1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
Subwoofer dimensions (W x H x D)200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"
Soundbar weight2.5kg / 5.5 lbs
Subwoofer weight4.2 kg / 9.3 lbs
Packaging dimensions (W x H x D)1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
Packaging Weight8.8kg / 19.4 lbs
Control and Connection Specifications
USB portType A
USB rating5V DC, 0.5A
Supporting file formatsmp3
MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16 - 48 kHz
Bluetooth version5.3
Bluetooth profileA2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power<10 dBm (EIRP)
Bluetooth modulationGFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range2402-2481 MHz
2.4G wireless transmitter power＜10dBm (EIRP）
2.4G wireless modulationGFSK
