Product Description
Compact size. Epic sound.

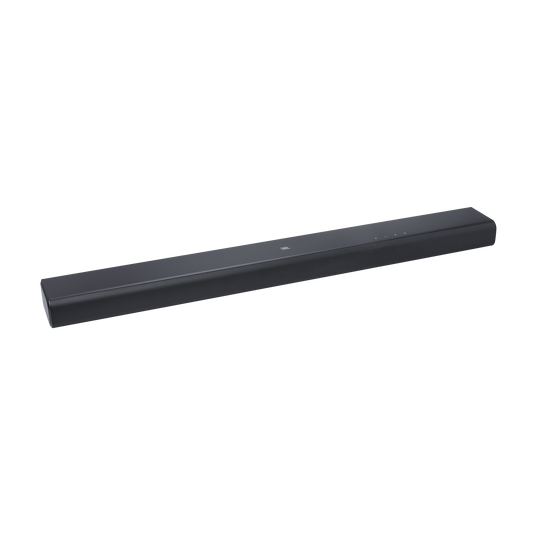

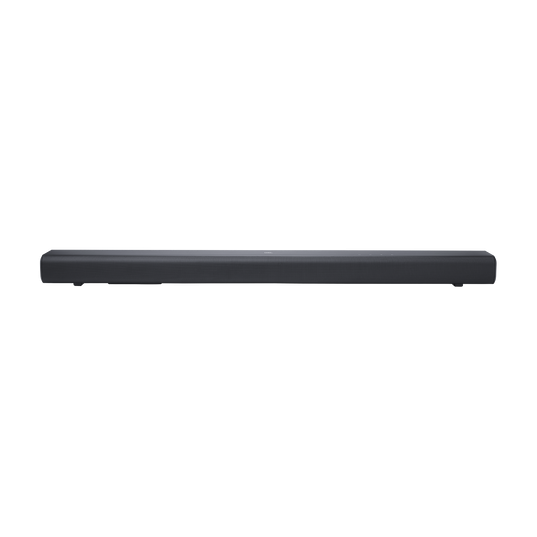

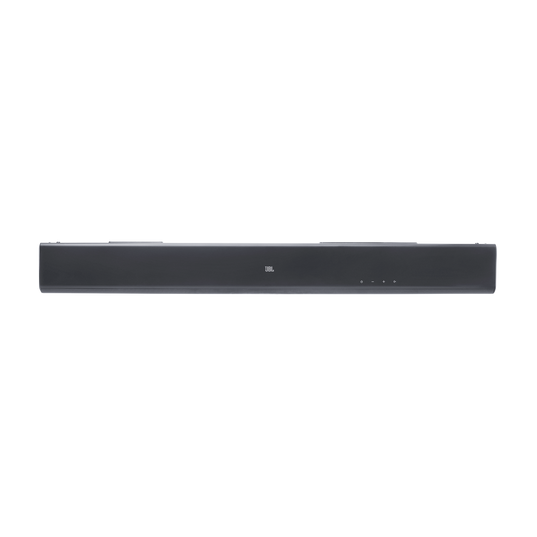

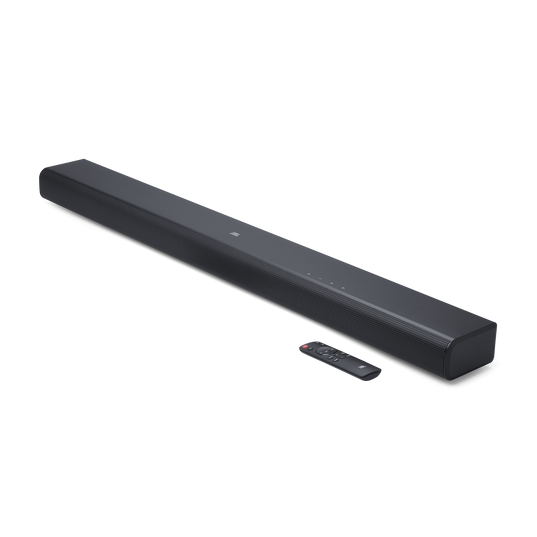

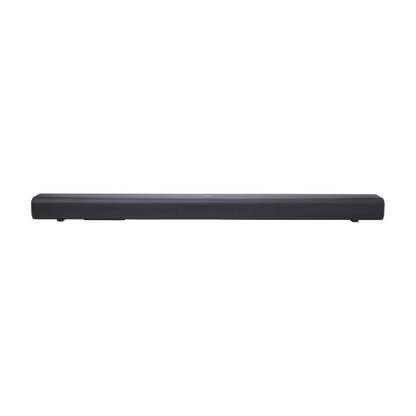

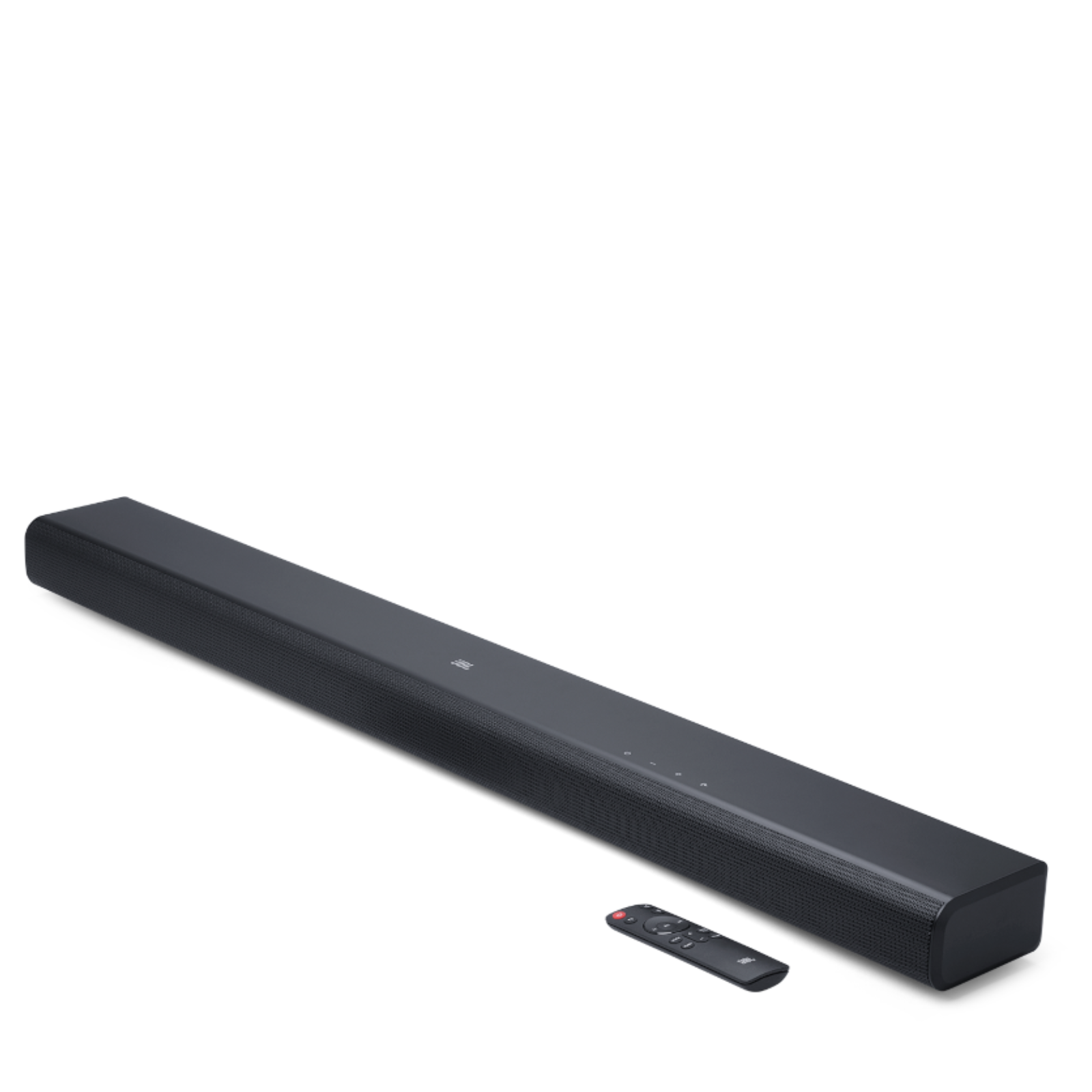

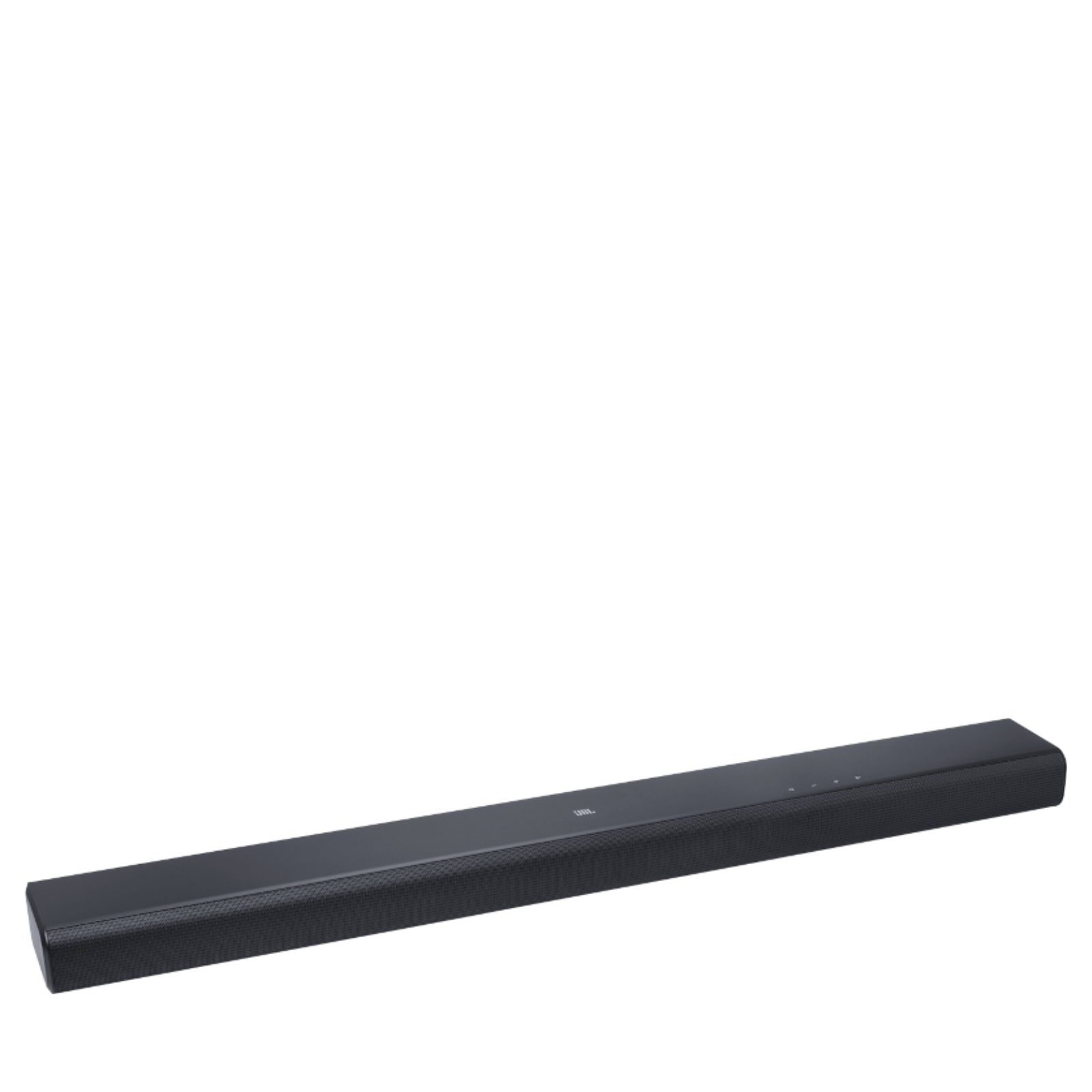

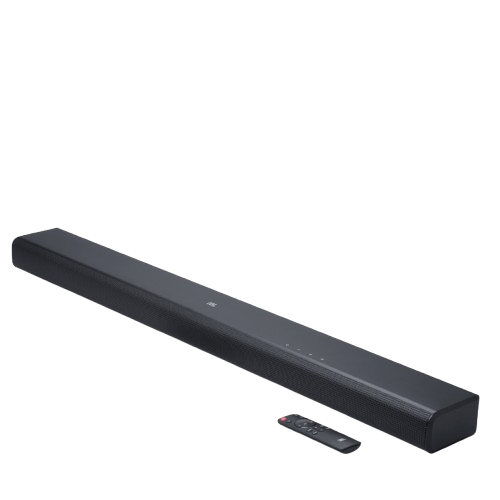

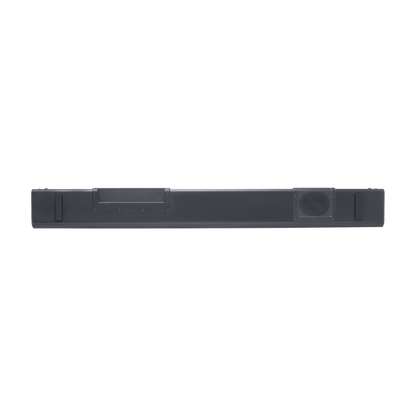

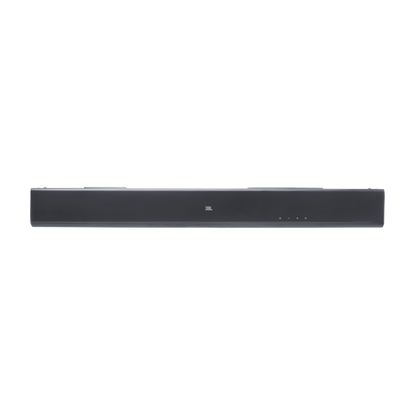

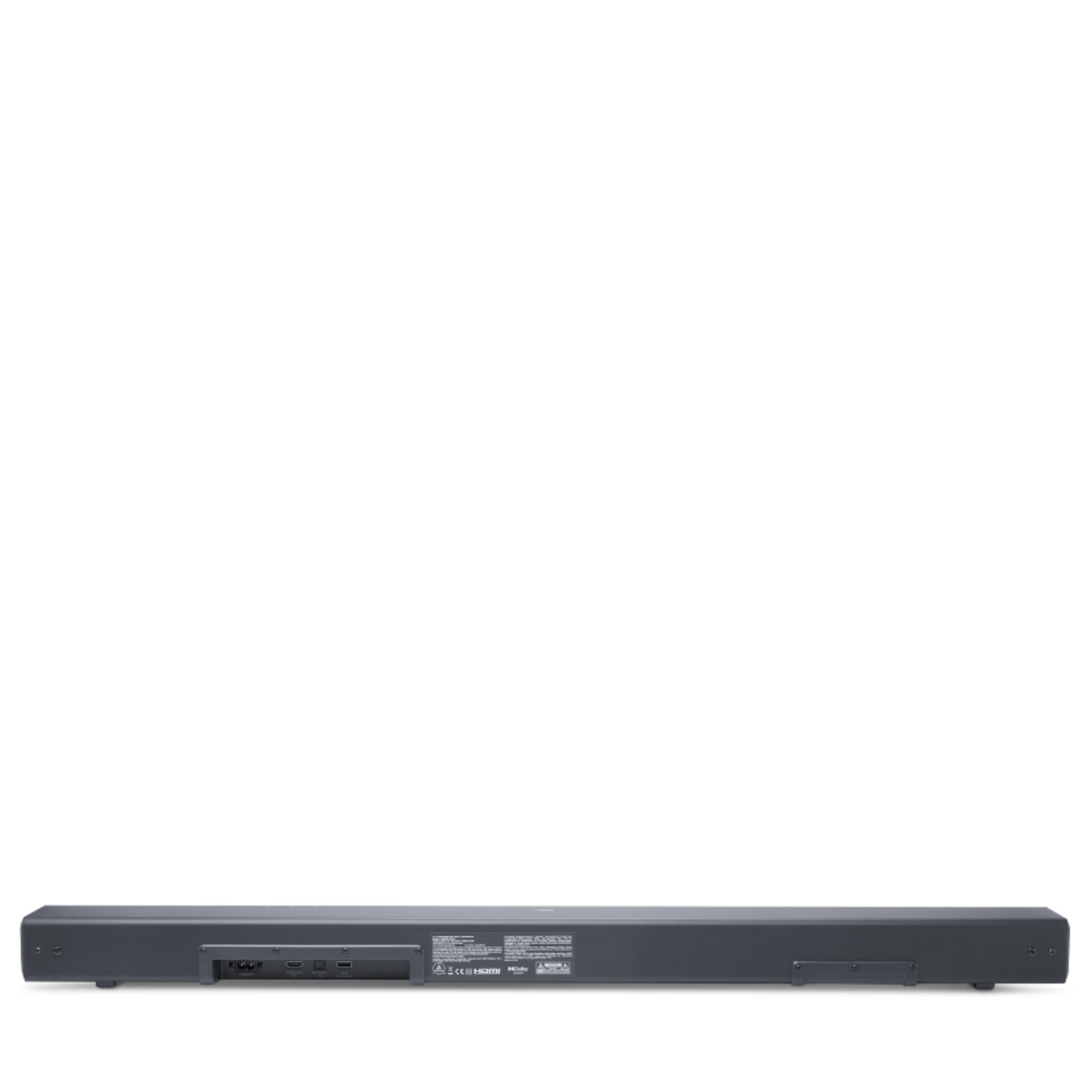

The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a built-in subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated center channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one-cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device.
General Specifications
ModelCINEMA SB510
Sound system3.1 channel
Power supply100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)200W
Soundbar output power (Max @THD 1%)150W
Subwoofer output power (Max. @THD 1%)50W
Soundbar transducer3x (45 x 80) mm racetrack drivers
Subwoofer transducer1x (70 x 88) mm, built-in subwoofer
Standby power< 0.5W
Operating temperature0°C - 45 °C
Audio Specifications
Frequency response55Hz-20kHz (-10dB)
Audio inputs1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)950 x 67 x 105 mm / 37.4’’ x 2.6’’ x 4.1’’
Soundbar weight3.5kg / 7.7 lbs

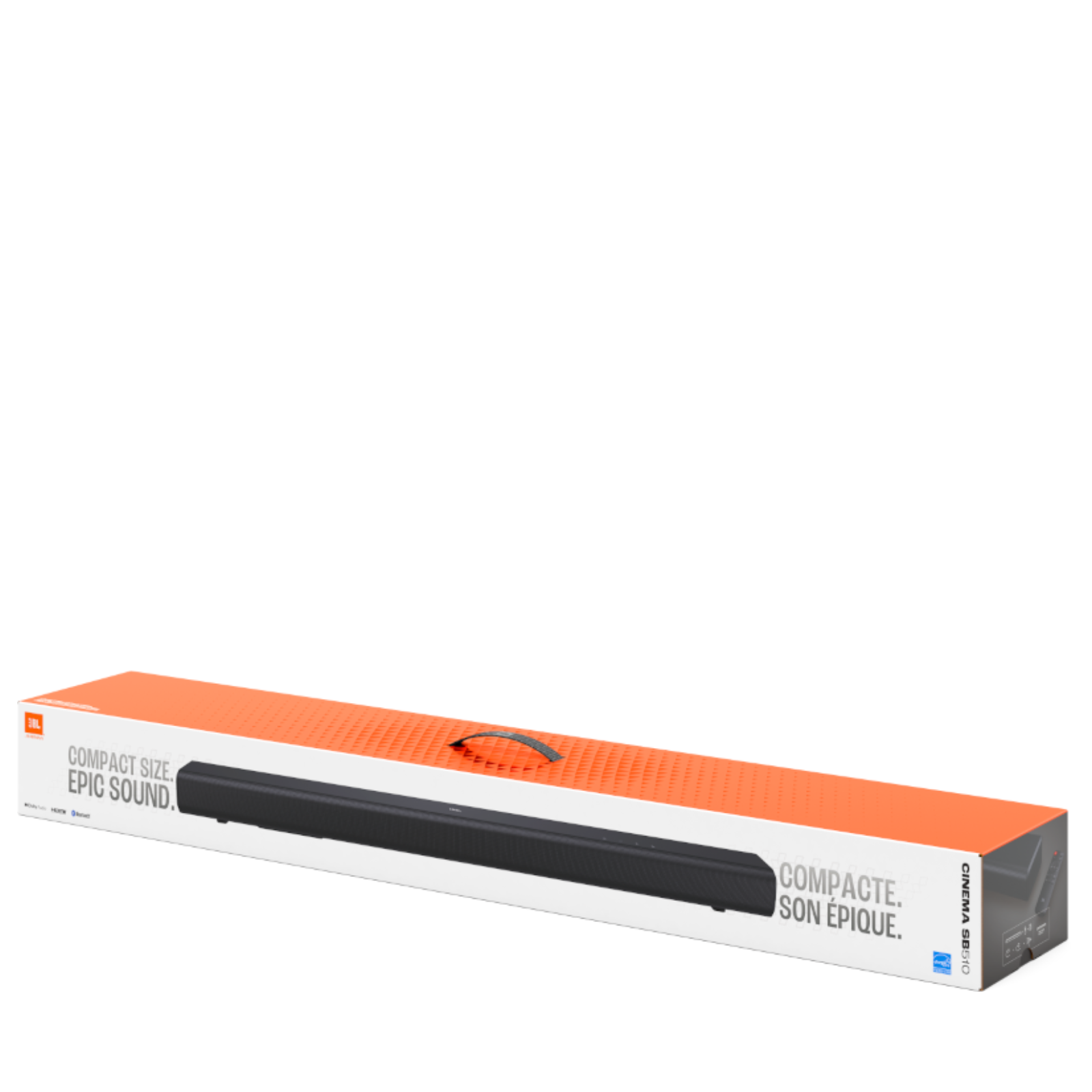

Packaging dimensions (W x H x D)1112 x 116 x 164 mm / 43.8" x 4.6" x 6.5"
Packaging Weight5.0kg / 11.0 lbs

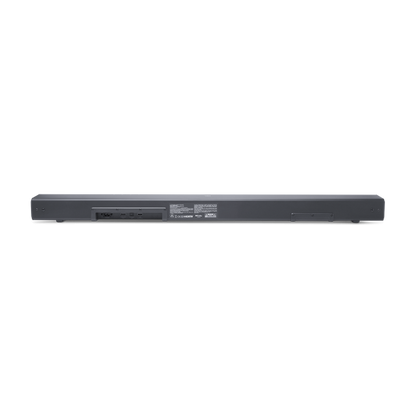

Control and Connection Specifications
USB portType A
USB rating5V DC, 0.5A
Supporting file formatsmp3
MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16 - 48 kHz
Bluetooth version5.3
Bluetooth profileA2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power<10 dBm (EIRP)
Bluetooth modulationGFSK, π/4 DQPSK, 8DPSK
