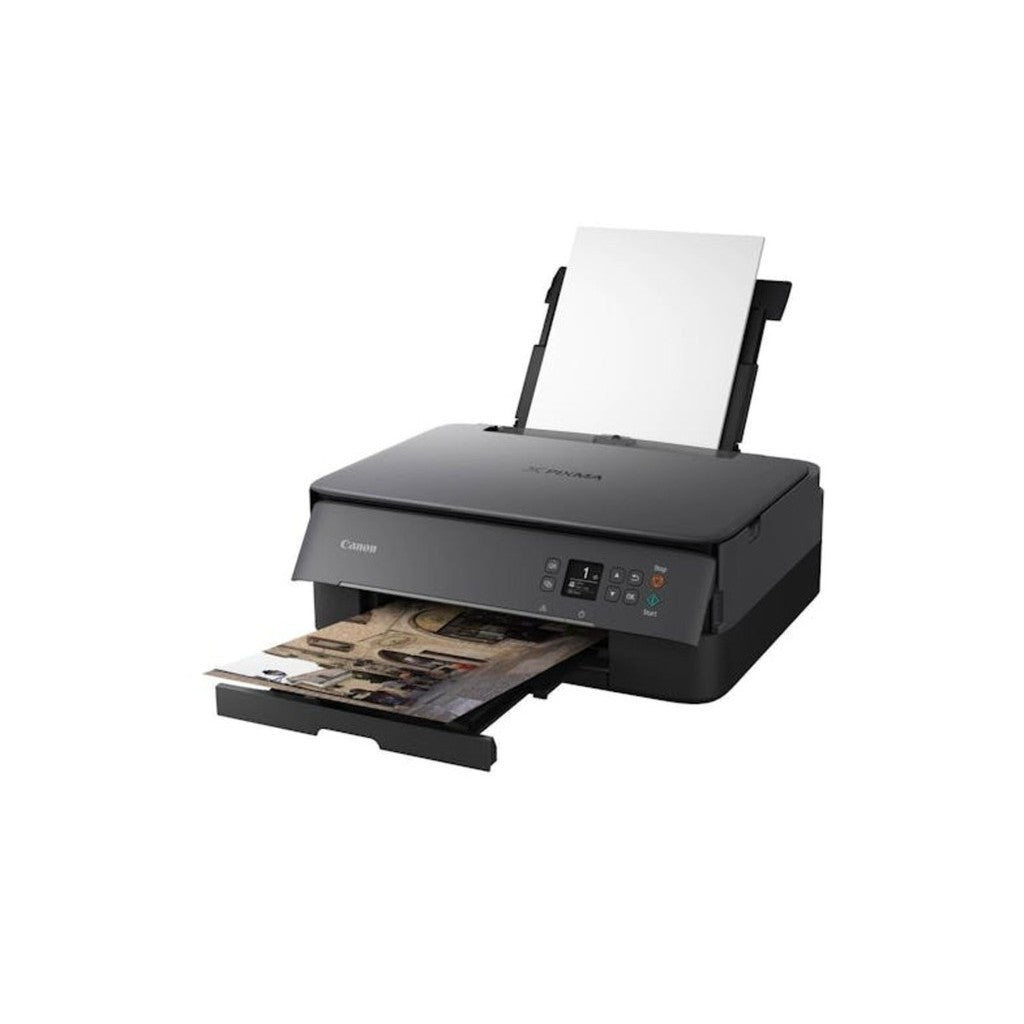

CANON TS5370/a Compact Wireless Photo All-In-One with 1.44" OLED

Print Head / Ink

Type

Permanent

Number of Nozzles

Total 1,792 nozzles

Ink Catridges

PG-760
CLI-761
[Optional: PG-760XL, CLI-761XL]

Maximum Printing Resolution

4800 (horizontal)^*1 x 1200 (vertical) dpi

Print Speed^*2 (Approx.)

Based on ISO/IEC 24734
Click here for summary report
Click here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)

13 / 6.8 ipm (mono/colour)

Photo (4 x 6") (PP-201/Borderless)

43 sec

Printable Width

Up to 203.2 mm (8")
Borderless: Up to 216 mm (8.5")

Printable Area

Borderless Printing^*3

Top/Bottom/Left/Right margin: each 0 mm

Bordered Printing

Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm
(LTR/LGL: Left: 6.4 mm, Right: 6.3 mm)

Bordered Auto 2-Sided Printing

Top margin: 5 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm
(LTR: Left: 6.4 mm, Right: 6.3 mm)

Support Media

Rear Tray

Plain Paper
High Resolution Paper (HR-101N)
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Glossy II (PP-201, PP-208)
Matte Photo Paper (MP-101)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Stickers (PS-208, PS-808)
T-Shirt Transfer
Envelope

Cassette

Plain Paper

Paper Size

Rear Tray

A4, A5, B5, LTR, LGL, 4 x 6",5 x 7", 7 x 10", 8 x 10", Envelopes (DL, COM10), Square (5 x 5", 3.5 x 3.5"), Card Size (91 x 55 mm)

[Custom size]
width 55 - 215.9 mm, length 89 - 676 mm
*F4 is possible via custom size settings.

Cassette

A4, A5, B5, LTR

[Custom size]
width 148 - 215.9 mm, length 210 - 297 mm
*F4 is possible via custom size settings.

Paper Size (Borderless)^*4

A4, LTR, 4 x 6", 5 x 7", 8 x10", Card Size (91 x 55 mm), Square (5 x 5", 3.5 x 3.5")

Paper Handling (Maximum Number)

Rear Tray (Plain Paper)

A4, LTR =100
High Resolution Paper (HR-101N) = 80

Cassette (Plain Paper)

A4, LTR = 100

Support Media for Auto 2-sided printing

Type

Plain Paper

Size

A4, A5, B5, LTR

Paper Weight

Rear Tray

Plain Paper: 64-105 g/m²
Canon specialty paper: Max. 300 g/m²
(Photo Paper Pro Platinum PT-101)

Cassette

Plain Paper: 64-105 g/m²

Ink End Sensor

Dot count

Print Head Alignment

Auto/Manual

Scanner Type

Flatbed

Scanner Method

Optical Resolution^*6

1200 x 2400 dpi

Scanning Bit Depth (Input/Output)

Grayscale

16 bit/8 bit

Colour

RGB each 16 bit/8 bit

Line Scanning Speed^*7

Grayscale

1.5 ms/line (300 dpi)

Colour

3.5 ms/line (300 dpi)

Maximum Document Size

Flatbed

A4/LTR (216 x 297 mm)

Maximum Document Size

A4/LTR

Compatible Media

Size

A4/A5/B5/LTR/4 x 6"/5 x 7"
Card Size (91 x 55 mm)

Type

Plain Paper
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-Gloss (SG-201)
Matte Photo Paper (MP-101)
Photo Paper Plus Glossy II (PP-201, PP-208)

Image Quality

3 positions (Draft, Standard, High)

Density Adjustment

9 positions, Auto intensity (AE copy)

Copy Speed^*8 (Approx.)

Based on ISO/IEC 24734
Click here for summary report
Click here for Document Print and Copy Speed
Measurement Conditions

Document (sFCOT/Simplex)

4.0 ipm

Document Colour (sESAT/Simplex)

20 sec

Multiple Copy

Mono/Colour

Max. 99 pages

Protocol

SNMP, HTTP, TCP/IP (IPv4/IPv6)

Wireless LAN

Network Type

IEEE802.11b/g/n
2.4 GHz, Supported Channels: 1 - 13
(TW/HK: Supported Channels: 1 - 11 only)

Range

Indoor 50 m (depends on the transmission speed and conditions)

Security

WEP 64/128 bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Direct Connection (Wireless LAN)

Available

Bluetooth
* TS5370a does not support Bluetooth function.

Available

AirPrint

Available

Windows 10 Mobile

Available

Mopria

Available

Canon Print Service
(for Android)

Available

Cloud Service

From smartphone or tablet

Available

Canon PRINT
(for iOS/Android)

Available

Windows 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

OS X 10.11.6, macOS 10.12 ~ 10.14

Chrome OS

Operation Panel

Display

OLED (1.44 inch)

Language

33 Languages Selectable: Japanese / English (mm & inch) / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese

Interface

USB 2.0

PictBridge (Wireless LAN)

Available

Operating Environment^*10

Temperature

5 - 35°C

Humidity

10 - 90% RH (no dew condensation)

Recommended Environment^*11

Temperature

15 - 30°C

Humidity

10 - 80% RH (no dew condensation)

Storage Environment

Temperature

0 - 40°C

Humidity

5 - 95% RH (no dew condensation)

Quiet Mode

Available

Acoustic Noise (PC Print)

Plain Paper (A4, B/W)^*12

43.5 dB(A)

Power

AC 100-240 V, 50/60 Hz

Power Consumption (Approx.)

OFF

0.3 W

Standby (scanning lamp is off)
USB connection to PC

0.9 W

Copying^*13
USB connection to PC

19 W

Dimensions (WxDxH) (Approx.)

Factory Configuration

403 x 315 x 148 mm

Paper installed (cassette)

403 x 359 x 148 mm

Output/Trays Extended

 403 x 659 x 293 mm

Weight (Approx.)

6.3 kg

Plain Paper
Click here for more information

A4 Colour Documents^*15:
Standard:
CL-761: 180
PG-760: 180

Optional:
CLI-761XL: 300
PG-760XL: 400

4 x 6" Photos^*16:
Standard:
CL-761: 69
PG-760: 2152^*17

Optional:
CLI-761XL: 106
PG-760XL: 4973^*17
