Specifications
Search specifications
General
Width
90 cm
Colour
Black
Installation typology
Wall-mounted
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
230 W
Type of control setting and signalling devices
LED, touch control
Number of speed settings
3-stage + 2 intensive
Max. air extraction
441 m³/h
Boost position air extraction
1007 m³/h
Sound power at max. speed (2010/30/EC)
51 dB
Sound power boost (2010/30/EC)
70 dB
Max. air recirculation
437 m³/h
Boost position output recirculating
944 m³/h
Sound power at max. speed (recirculation)
60 dB
Sound power boost (recirculation)
80 dB

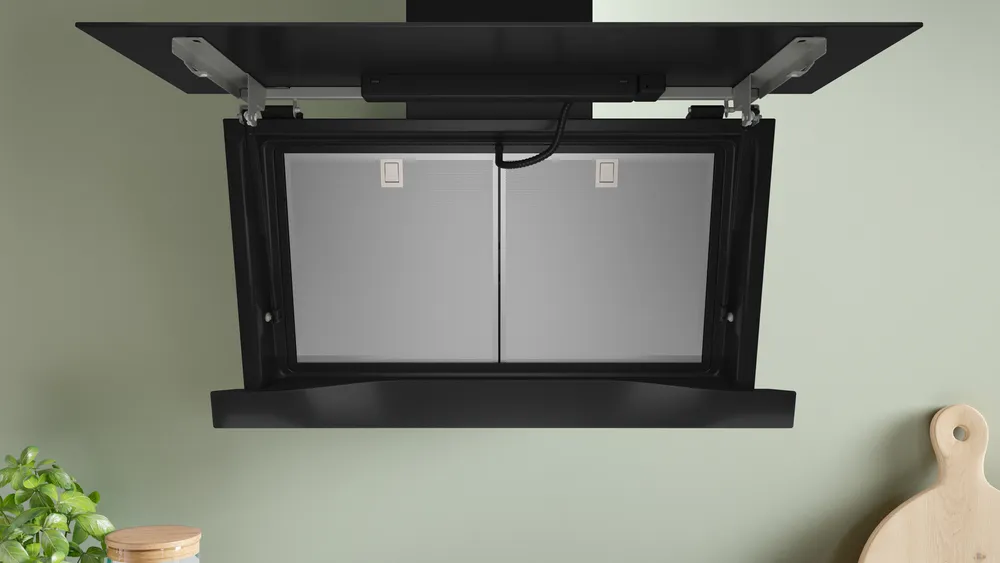

Grease filter material
Washable stainless steel
Energy efficiency class
A+
Total annual energy consumption
39.1 kWh/annum

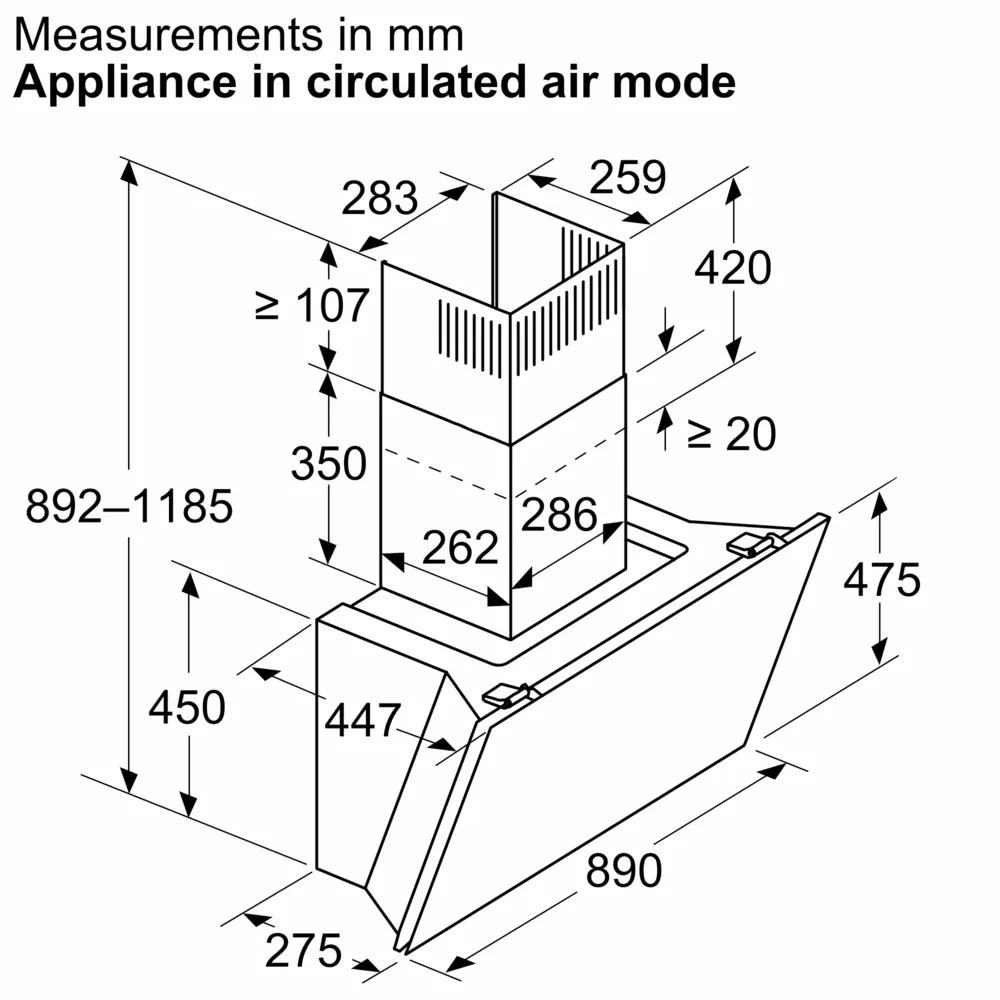

Dimensions
Height of the appliance
450 mm
Width of the appliance
890 mm
Depth of the product
447 mm
Height of the chimney
420-663/457-750 mm
Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
Yes
Length electrical supply cord
130.0 cm
Net weight
25.7 kg
Handle bar
Not applicable
Appliance height exhaust air max
1098 mm
Appliance height exhaust air min
855 mm
Appliance height recirculating max
1185 mm
Appliance height recirculating min
892 mm
