DESCRIPTION:
Special Features
PerfectAir sensor: enjoy quieter, odour-free cooking.
Silence: maximal extractor performance with little noise
Intensive speed setting with reset: automatically resets the hood to normal speed setting
EcoSilence Drive: the powerful, energy-saving drive for hoods.
Specifications
Search specifications
General
Width
90 cm
Colour
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
260 W
Type of control setting and signalling devices
Touch control
Number of power settings
3-stages + 2 intensive settings
Max. air extraction
602 m³/h
Boost position air extraction
965 m³/h
Sound power at max. speed (2010/30/EC)
64 dB
Sound power boost (2010/30/EC)
73 dB
Max. air recirculation
462 m³/h
Boost position output recirculating
561 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
72 dB

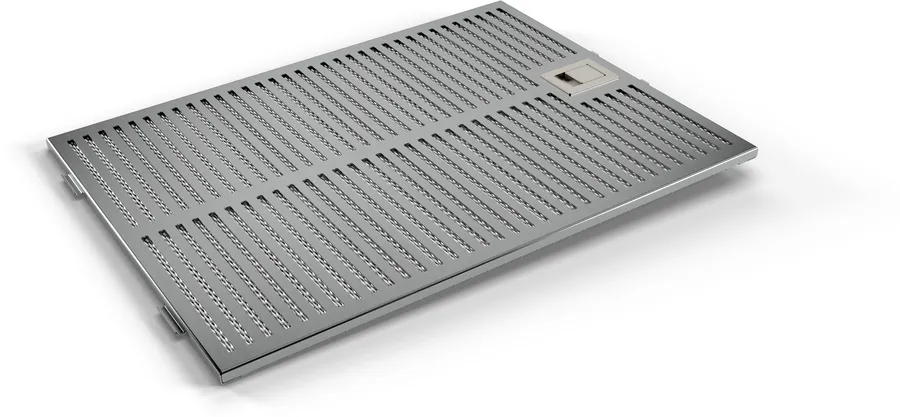

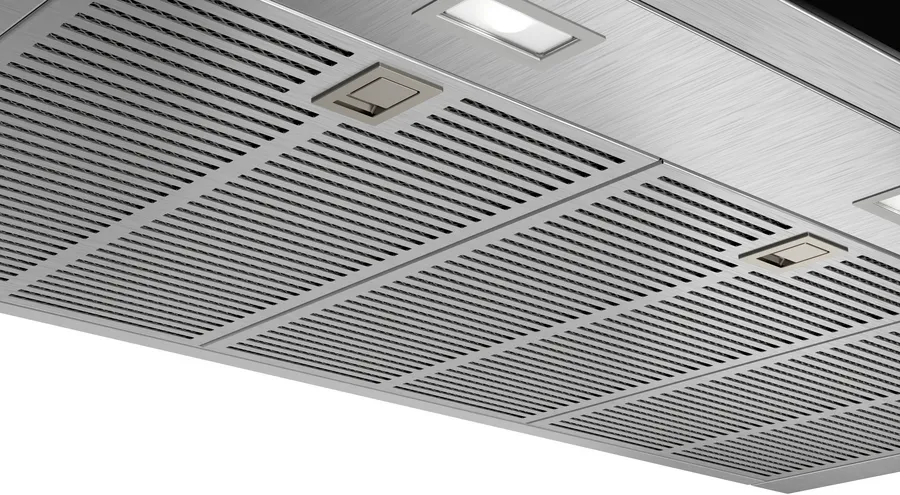

Grease filter material
Washable stainless steel
Energy efficiency rating
A+
Total annual energy consumption
34.1 kWh/year

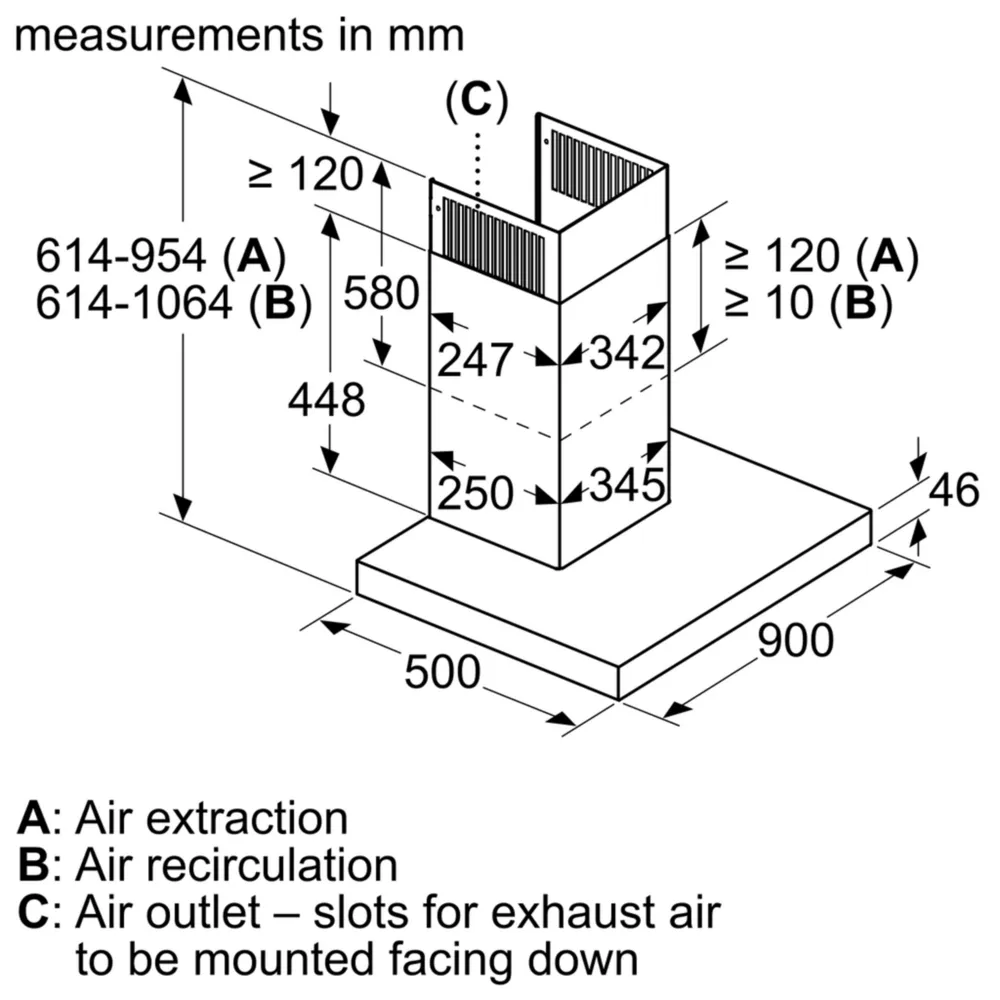

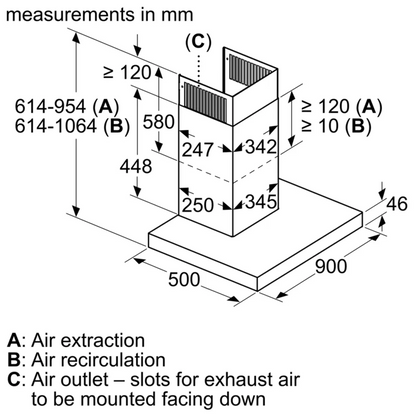

Dimensions
Height of the appliance
46 mm
Width of the appliance
898 mm
Depth of the product
500 mm
Dimensions of the packed product (HxWxD)
585 x 650 x 970 mm
Height of the chimney
582-908/568-1018 mm
Minimum distance above an electric cooktop (EU)
550 mm
Minimum distance above a gas cooktop
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
130.0 cm
Net weight
19.0 kg
Handle bar
Not applicable
Appliance height exhaust air max
954 mm
Appliance height exhaust air min
614 mm
Appliance height recirculating max
1064 mm
Appliance height recirculating min
614 mm
Comfort
PerfectAir sensor
Yes
Cooktop-based hood control
Yes
EcoSilence Drive motor - efficient and extra silent
Yes
Extremely silent appliances
No
Clean filter reminder
Yes
Boost mode
Yes
Delay Shut off modes
Yes
Remote control
No
Light
Type of lamps used
LED
Number of lights
3
Total luminance
374 lm
Color temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Light colour customisable by Home Connect
No
Ambient light
No
Connectivity
Home Connect
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
Power consumption standby/display off
0.5 W
