KDK 25GSC Ventilating Fan
KDK 25GSC Ventilating Fan
Regular price
$196.00
Regular price
Sale price
$196.00
Taxes included.

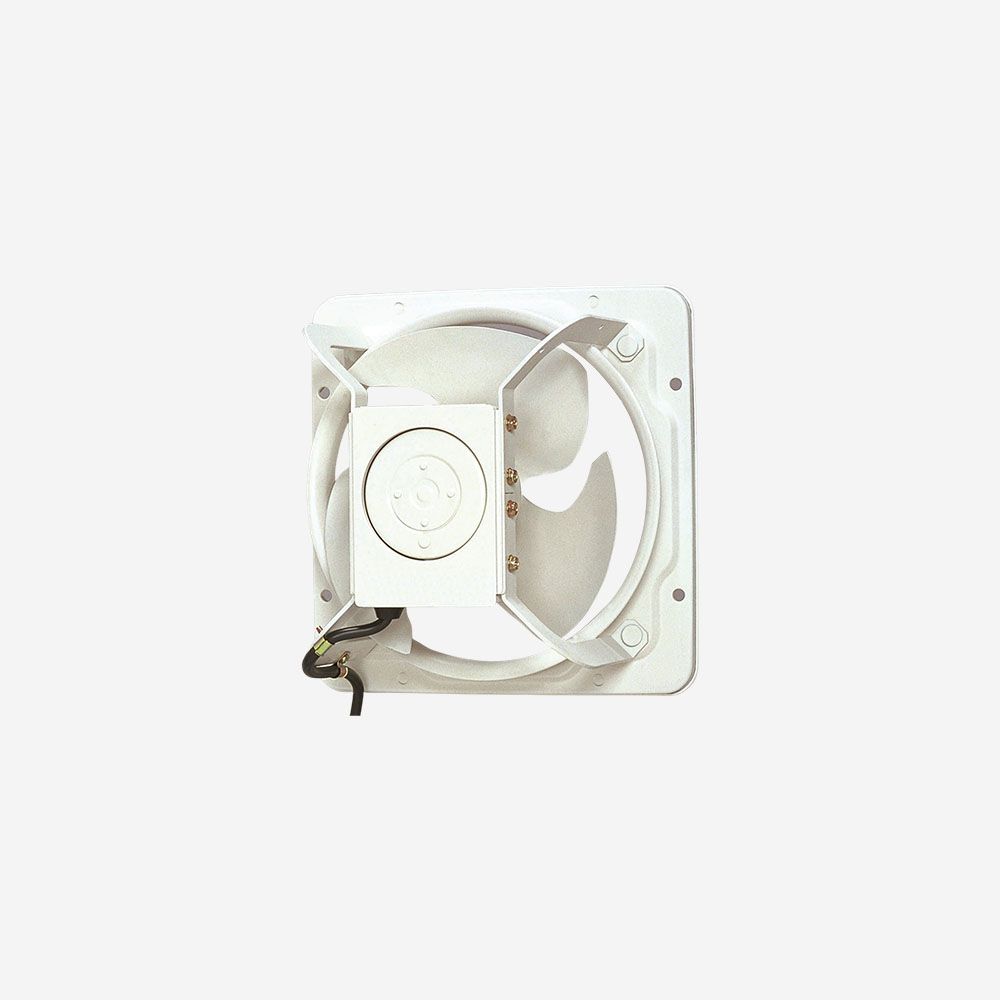

KDK 25GSC 25 cm (10″) Industrial High‑Pressure Ventilating Fan
Built for demanding environments like factory warehouses and commercial kitchens, the KDK 25GSC delivers high-pressure airflow, reversible operation, and rugged durability. Its slim design suits both horizontal and vertical installations.
Key Features
- 25 cm (10″) bell-mouth blade – engineered for smooth, high-pressure airflow
- Reversible motor – select exhaust or intake as needed
- Wave‑shape, high-pressure blade – turbulence-free, efficient airflow
- 4-pole induction motor (39 W) – enclosed and thermally protected for safety
- Durable powder-coated steel frame – rust-resistant and built to last
- Drain mechanism – prevents water and dust from entering the motor
- High ambient capability – operates from −10 °C to +50 °C
- Horizontal or vertical mounting – versatile installation options

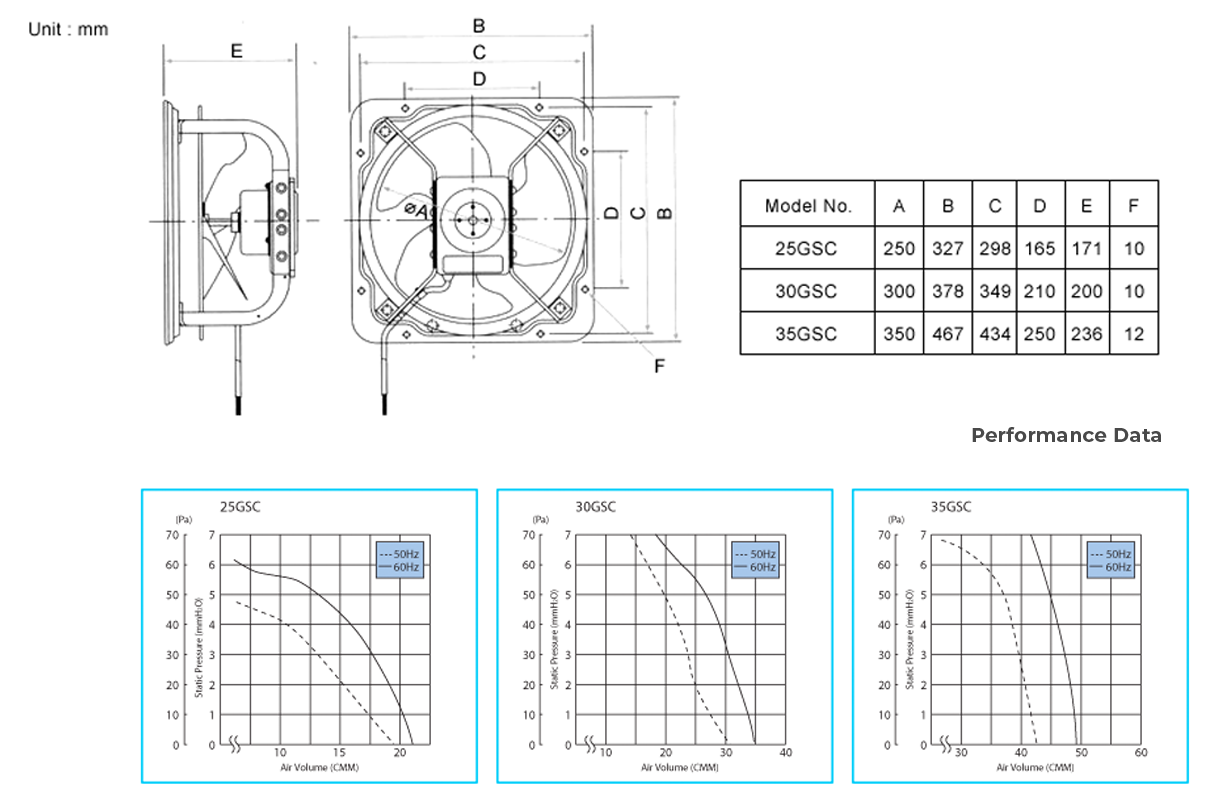

Product Specifications
| Blade Diameter | 25 cm (10″) |
|---|---|
| Motor Power | 39 W |
| Rotational Speed | ≈ 1,360 RPM |
| Airflow | ≈ 676 CFM (≈ 1,150 m³/h) |
| Noise Level | ≈ 34 dB(A) |
| Weight | ≈ 4.4 kg |
| Dimensions | 327×327×171 mm |
| Voltage/Frequency | 240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and build defects via authorized distributor
- Includes parts and labour at authorized SMM-approved service centers
- Warranty valid from purchase date—retain proof of purchase
Why Choose the 25GSC?
If you need powerful, reversible airflow in a compact unit, the 25GSC is engineered for efficiency and durability. Its high-pressure blade, rugged motor housing, and drain design make it ideal for heavy-use environments in Singapore.
