Description

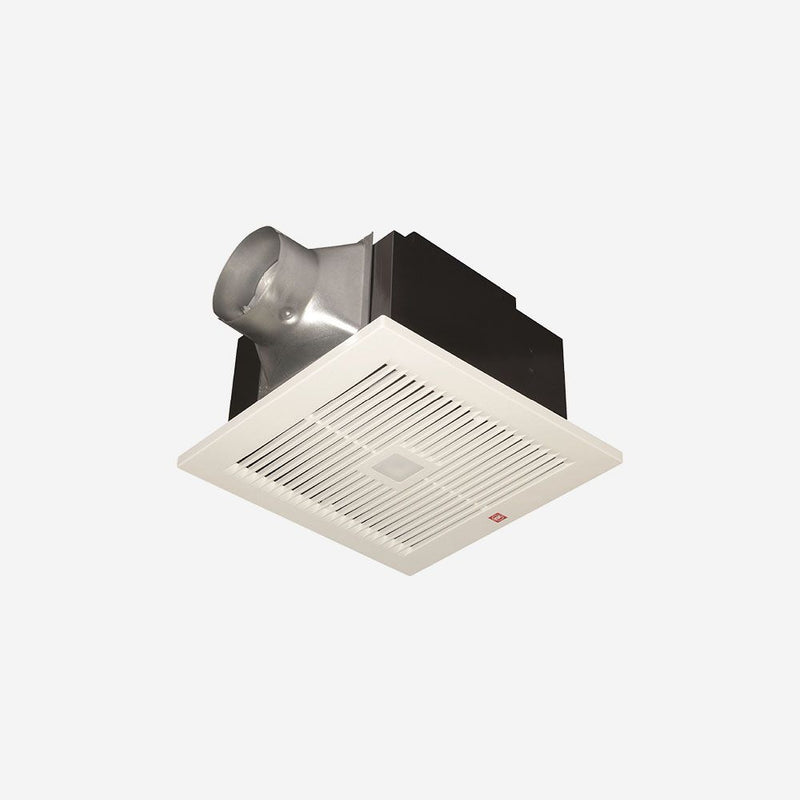

KDK 24JAB 24 cm (9.5″) Ceiling-Mounted DC Ventilating Fan
Experience smart, energy-efficient ventilation with the KDK 24JAB. Featuring a DC motor and advanced airflow controls, this fan is perfect for bathrooms, kitchens, and utility rooms in modern Singapore homes.
Key Features
- Energy-saving DC motor – up to 29% more efficient than traditional motors
- Constant airflow & variable speed – maintains consistent ventilation across varying duct lengths
- 15-minute delay timer – automatically switches to low speed or turns off after use
- Noise-resistant design – operates quietly at just 31 dB(A)
- Sirocco blade & resonance-absorption structure – smooth, low-vibration airflow
- Pre-installed power cord – easy ceiling installation into 240 × 240 mm opening with Ø 100 mm duct
Product Specifications
| Blade / Duct Size | 24 cm / Ø 100 mm |
|---|---|
| Airflow | 160 m³/h (94 CFM) |
| Power Consumption | 8 W |
| Speed | ≈ 742 RPM |
| Noise Level | 31 dB(A) |
| Weight | ≈ 2.9 kg |
| Cut-out Size | 240 × 240 mm |
| Voltage | 220–240 V, 50–60 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Coverage includes parts and labour through authorized service hubs
- Warranty valid from date of purchase—retain your receipt
Why Choose the 24JAB?
Combining energy efficiency, smart timing, and whisper-quiet performance, the 24JAB is a sleek, effective ventilation upgrade for homes in Singapore. Its compact DX ceiling fit and consistent airflow make it a top choice for modern living.
