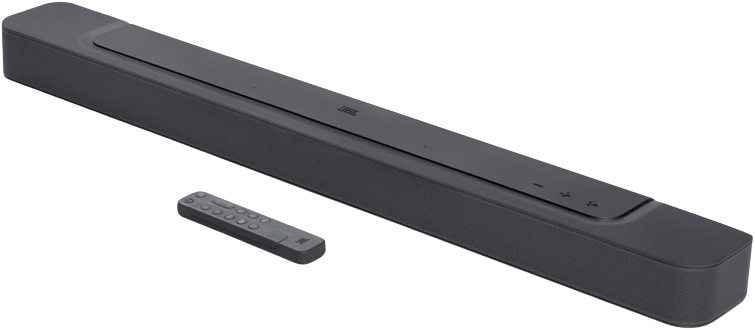

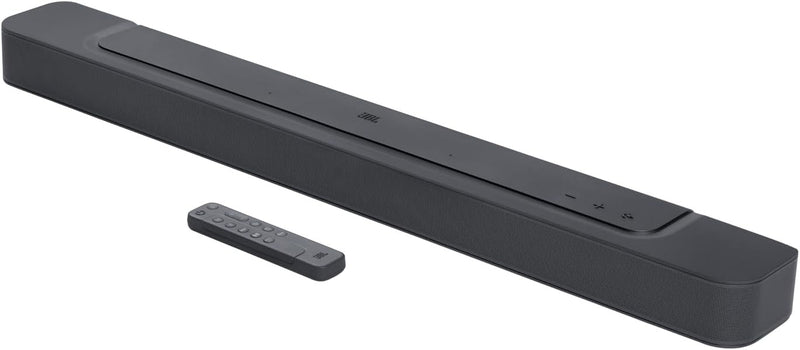

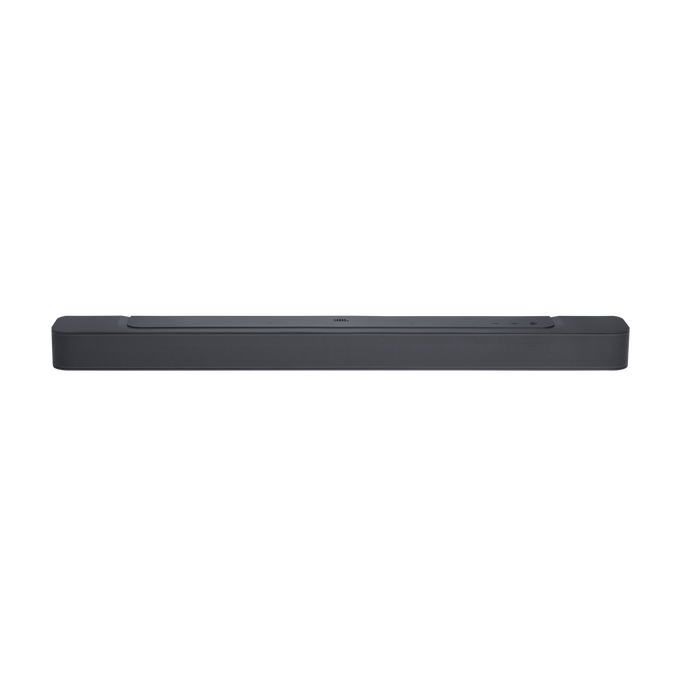

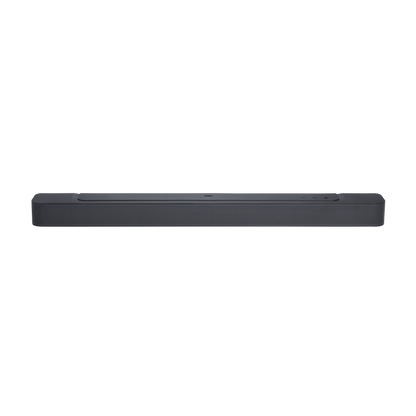

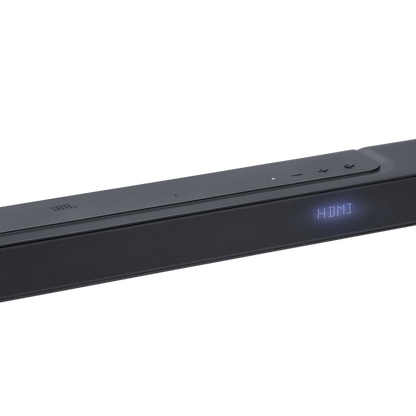

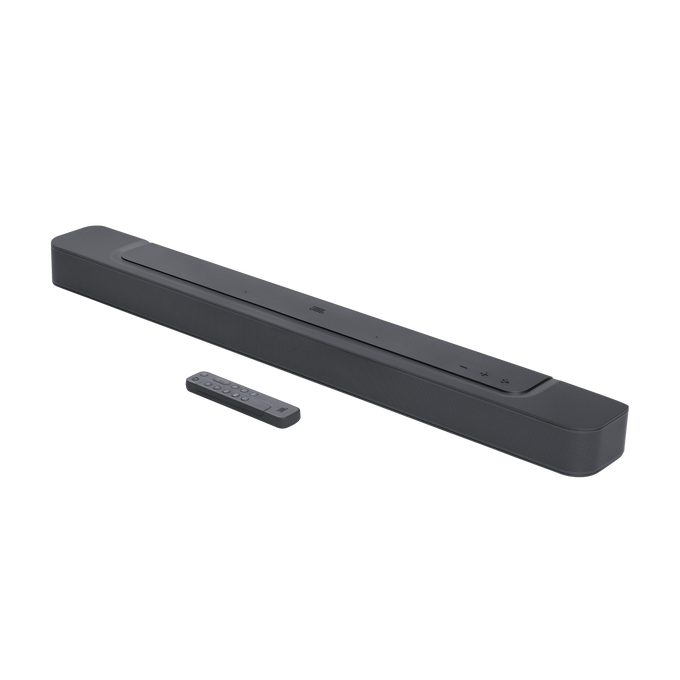

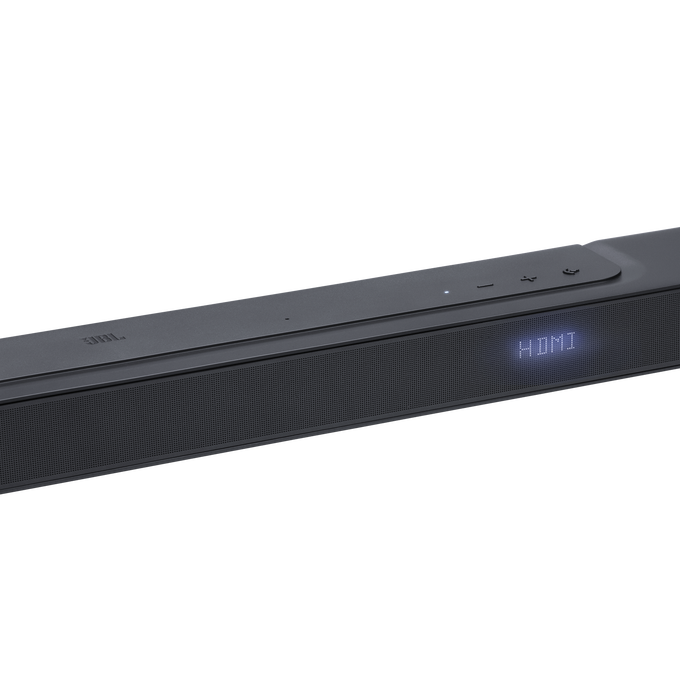

JBL Bar 300: 5.0-Channel Compact All-in-one soundbar with MultiBeam™ and Dolby Atmos®, Black

Specs

General Specifications

Power supply

100 - 240V AC, ~ 50/60Hz

Networked standby power

< 2.0 W

Operating temperature

0°C - 45 °C

Audio Specifications

Total speaker power output (Max @THD 1%)

260W

Soundbar transducer

4x (46x90)mm racetrack drivers, 2x 0.75" (20mm) tweeters

Frequency response

50Hz - 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

820 x 56 x 103.5 mm / 32.3’’ x 2.2’’ x 4.1’’

Soundbar weight

2.5kg/5.5 lbs

Packaging dimensions (W x H x D)

1060 x 120 x 170 mm/ 41.7" x 4.7" x 6.7"

Packaging Weight

4.1 kg / 9 lbs

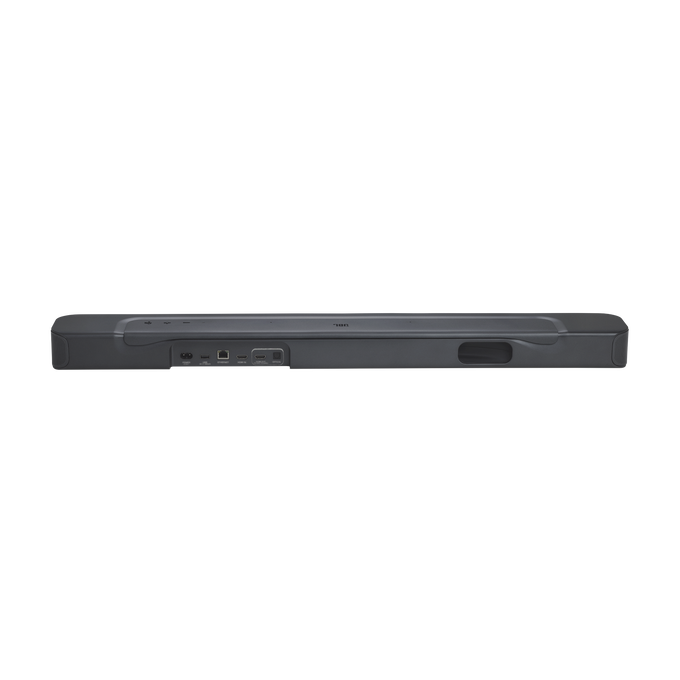

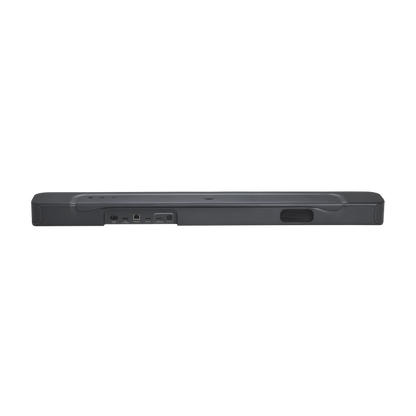

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

5.0

Bluetooth profile

A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision
