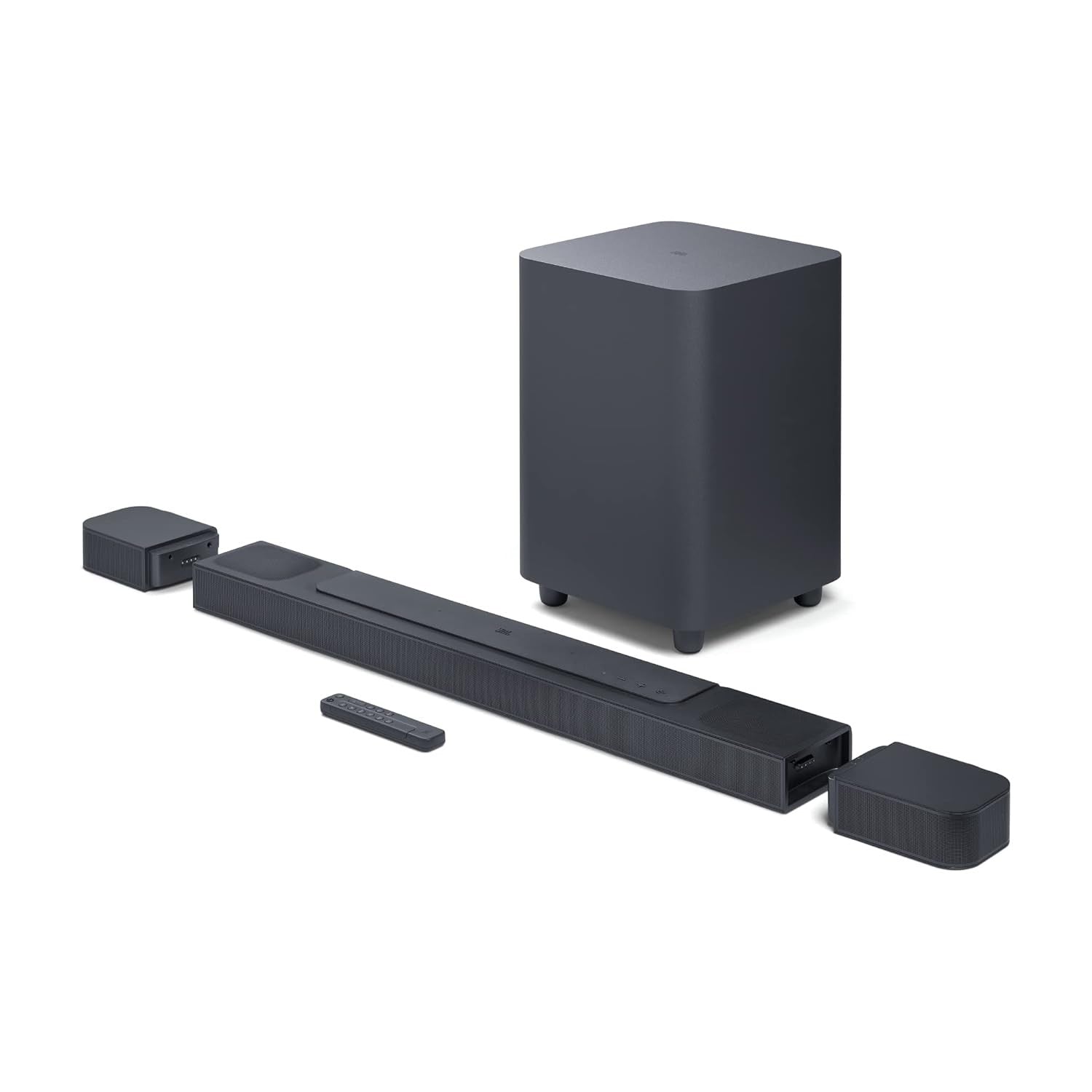

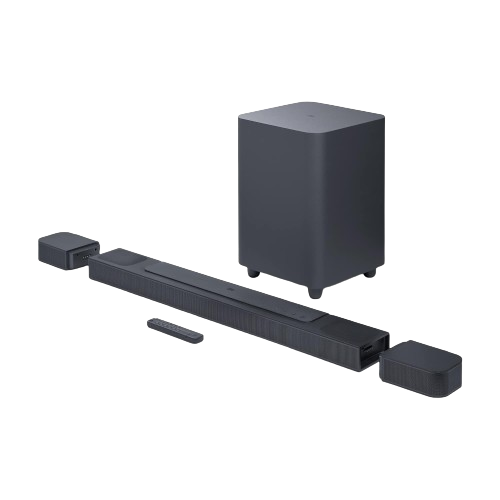

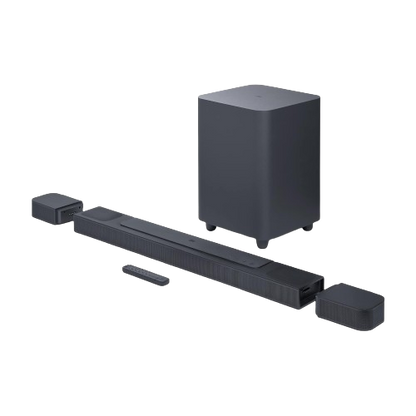

JBL BAR 1000 7.1.4-Channel soundbar with Detachable Surround Speakers,

General Specifications

ModelBAR 1000

Sound system7.1.4 channel

Power supply100 - 240V AC, ~ 50/60Hz

Networked standby power< 2.0W

Operating temperature0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%)880W

Soundbar output power (Max @THD 1%)440W

Surround speaker output power (Max @THD 1%)2x 70W

Subwoofer output power (Max. @THD 1%)300 W

Soundbar transducer5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers

Subwoofer transducer10” (260mm)

Frequency response33Hz - 20kHz (-6dB)

Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)1194 x 56 x 125mm / 47" x 2.2" x 4.9"

Main soundbar dimensions (W x H x D)884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"

Detachable surround speaker dimensions (each) (W x H x D)155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"

Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight3.7 kg / 8.2 lbs

Detachable surround speaker weight (each)1.4kg / 3.1 lbs

Subwoofer weight10 kg / 22 lbs

Packaging dimensions (W x H x D)1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight19.4 kg / 42.7 lbs

Control and Connection Specifications

USB portType A

USB rating5V DC, 0.5A

Supporting file formatMP3

MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate16 - 48 kHz

MP3 bitrate80 - 320 kpbs

Bluetooth version5.3

Bluetooth profileA2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range2400MHz – 2483.5MHz

Bluetooth transmitter power<15dBm (EIRP)

Wi-Fi networkIEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range2406 - 2474MHz

2.4G wireless power＜10dBm (EIRP）

Battery

Lithium battery3.635V, 3283mAh
